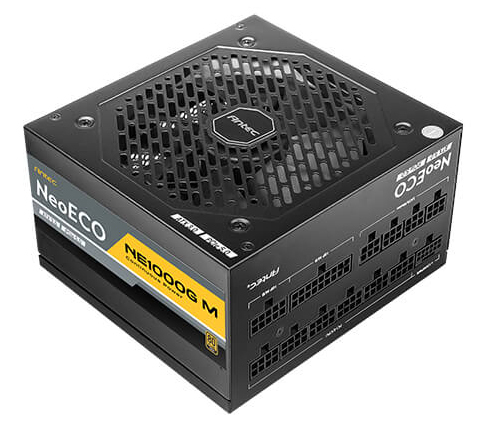

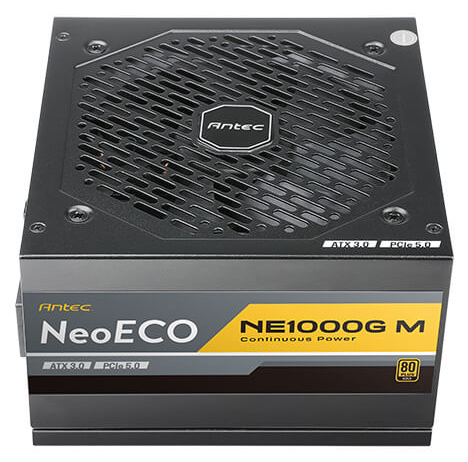

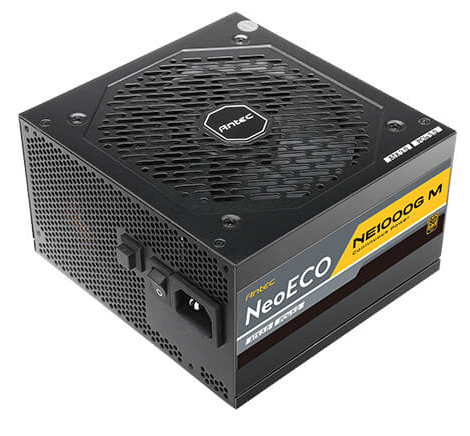

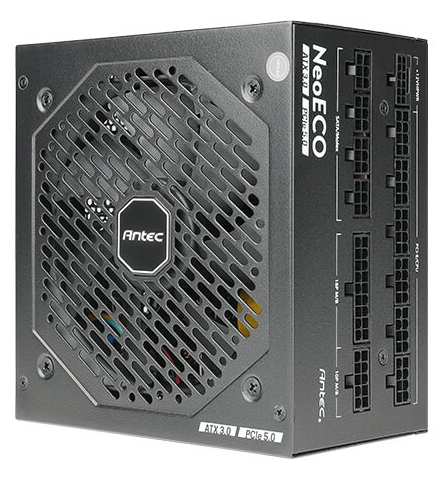

Antec NE 1000w 80+ Gold, Fully-Modular, ATX 3.0, PCI-E 5.0 Power Supply Overview

120 months

SPECIFICATIONS

Model NE1000G M ATX3.0
Type ATX 12V 3.0
Dimension 140(L)*150(W)*86(H)
Modular Full-Modular
Warranty 10 years
Input Voltage 100V-240V
Input Current 12A-6A
Input Frequency Range 60Hz-50Hz
PFC Active PFC
Power Good Signal 100-150ms
Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity 1000W
Operation Temperature 0~40°C
Regulatory cTUVus / TUV / CB / RCM / CE /
FCC / BIS / BSMI / KC / UKCA / ICES
Fan 120mm FDB Silent Fan
Certifications 80 Plus Gold

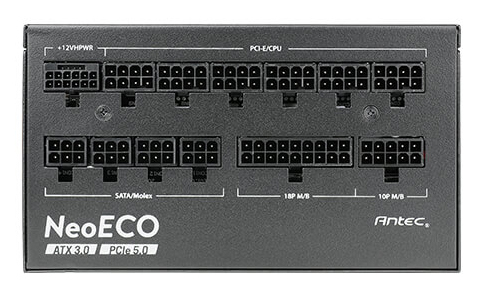

Connector 1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.0 12VHPWR
2 x 8(4+4)pin CPU
4 x 8(6+2) Pin PCI-E
12 x SATA
4 x Molex
Net Weight 1.64 Kgs
Gross Weight 4.66 Kgs
UPC# 0-761345-11391-5 NE1000G M ATX3.0
0-761345-11392-2 NE1000G M ATX3.0 AU
0-761345-11393-9 NE1000G M ATX3.0 EC
0-761345-11394-6 NE1000G M ATX3.0 GB
0-761345-11395-3 NE1000G M ATX3.0 JP
SKU PSA-NE1000GMA3
Brand Antec
Unit Of Measure ea
