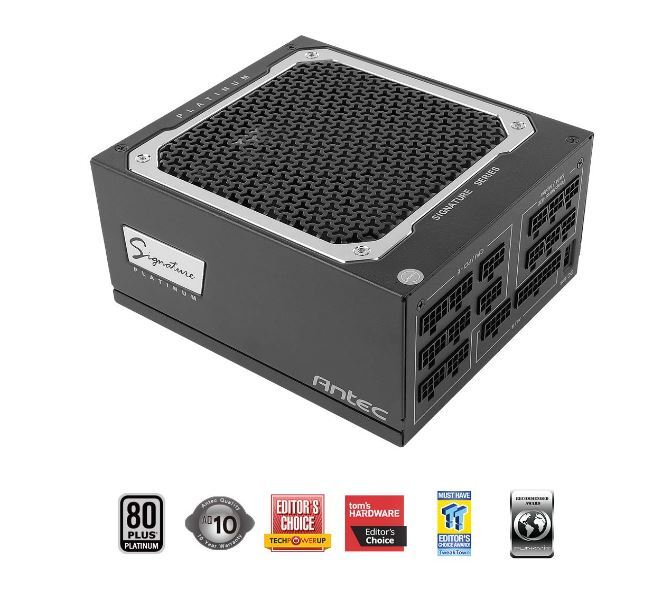

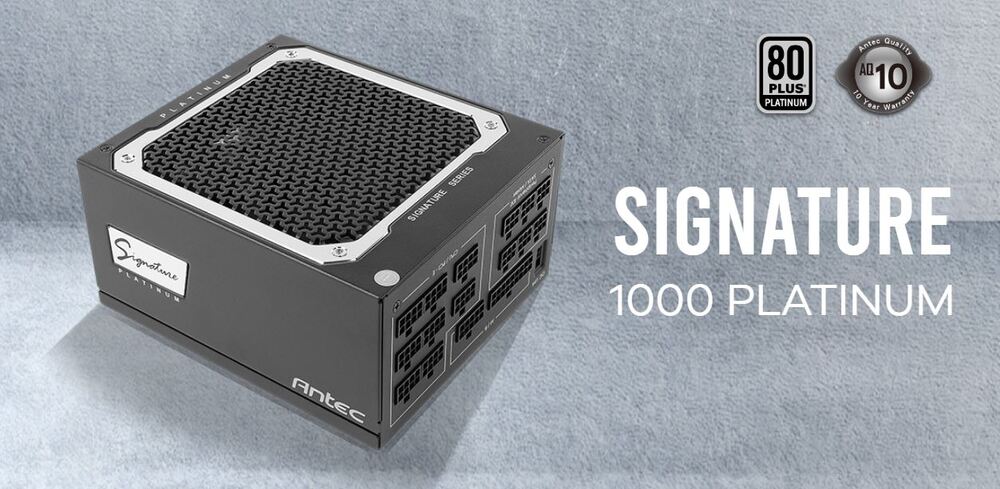

Antec SG 1000w 80+Platinum Fully Modular ATX Power Supply

60 months

Specifications

Product Name SP1000 Platinum
Model Name X8000A505-18
Type ATX
Modular Fully
Dimension (W x L x H) 150 x 170 x 86mm
Warranty 10 years
Input Voltage 100-240
Input Current 13A ~ 6.5A
Input Frequency Range 47Hz ~ 63Hz
PFC APFC
PFC at half / full load:
>0.95 at AC 110v 60Hz(typical)
>0.90 at AC 230v 50Hz(typical)
Power Good Signal 100 ~ 500mS
Efficiency At 20% / 50% / 100% load AC 115V internal,
the power efficiency should be at least 90% / 92% / 89%.
Protection OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity 1000W
Operation Temperature 0 ~ 40°C
Regulatory cTUVus / TUV / CB [IEC62368 Compliant] / CE /
FCC / BSMI / 3C / RCM
Fan 135 x 135 x 25(mm) FDB Silent Fan
Certifications 80 Plus Platinum

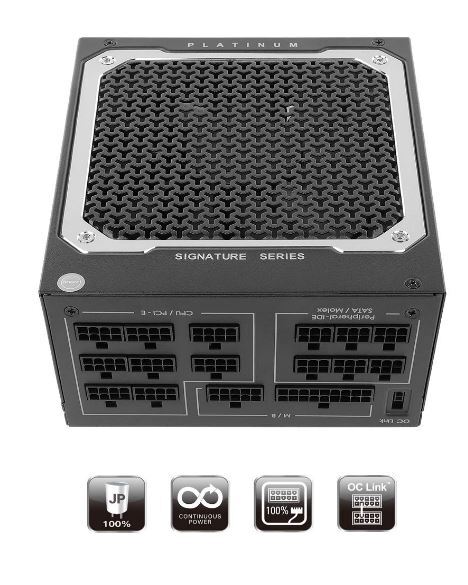

Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
8 x 8(6+2) Pin PCI-E
14 x SATA
5 x Molex
1 x FDD
UPC# 0-761345-11700-5 SP1000
0-761345-11701-2 SP1000 AU
0-761345-11702-9 SP1000 EC
0-761345-11703-6 SP1000 GB
0-761345-11704-3 SP1000 JP
Net Weight 2.11 Kgs
Gross Weight 3.93 Kgs
SKU PSA-SP1000-PLUS
Brand Antec
Unit Of Measure ea
