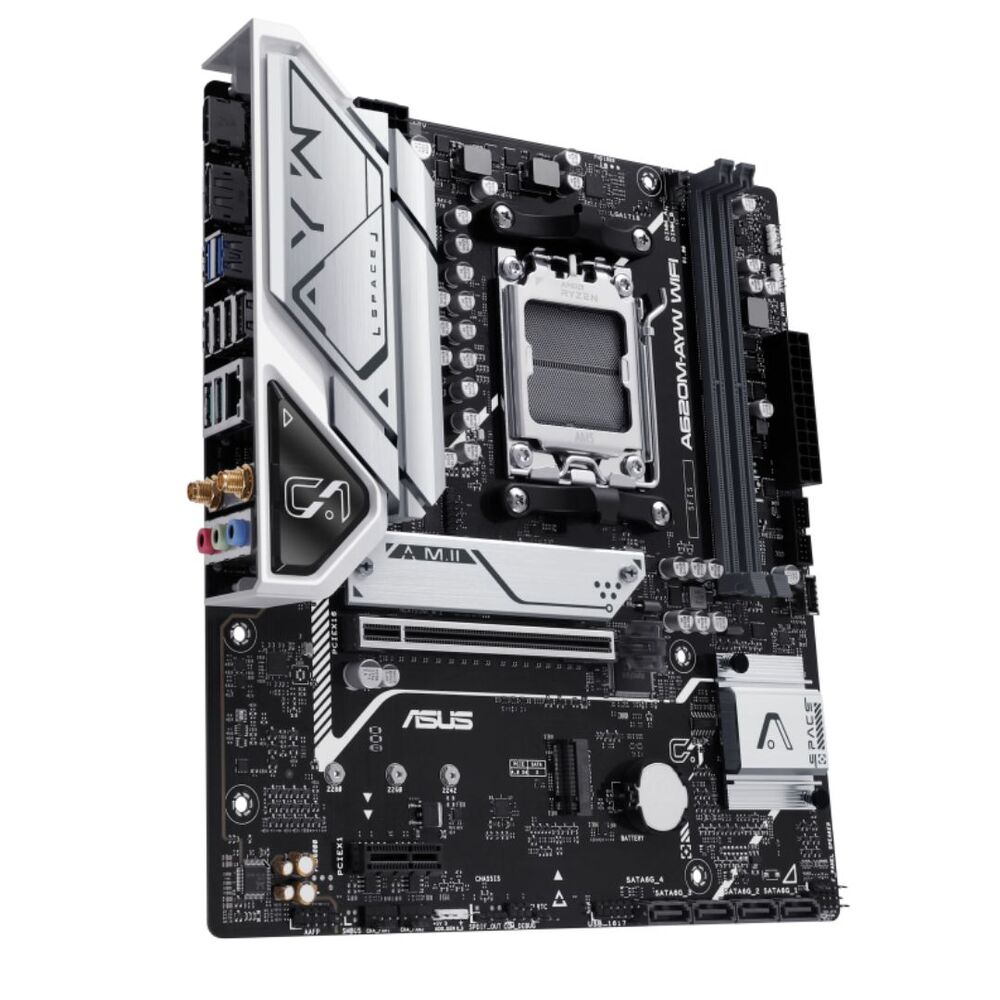

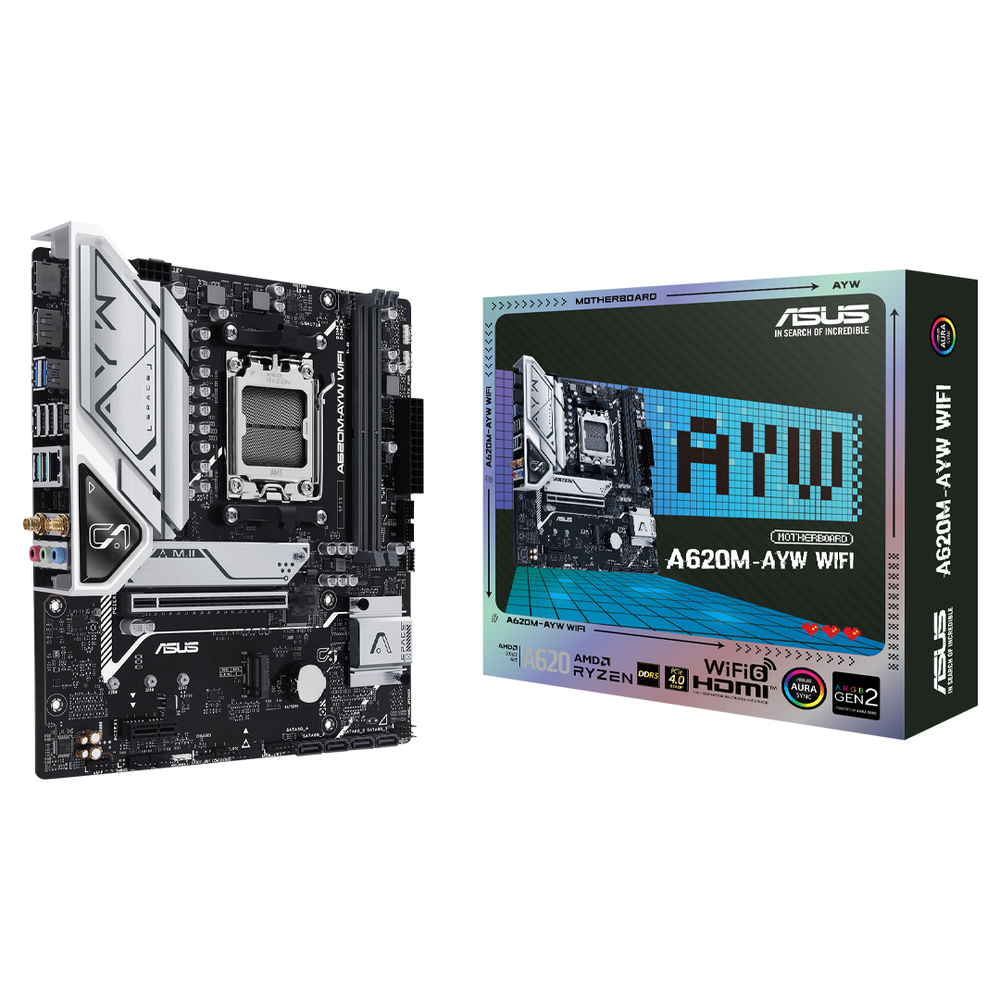

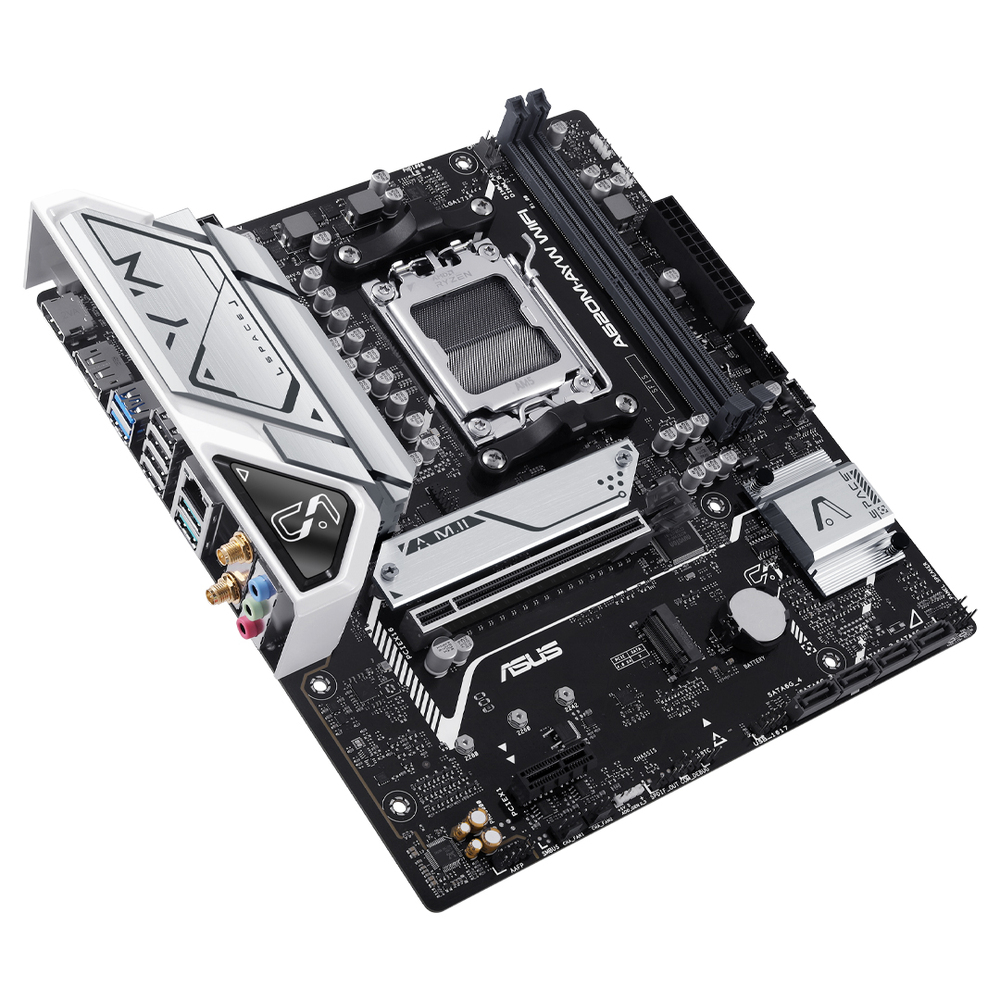

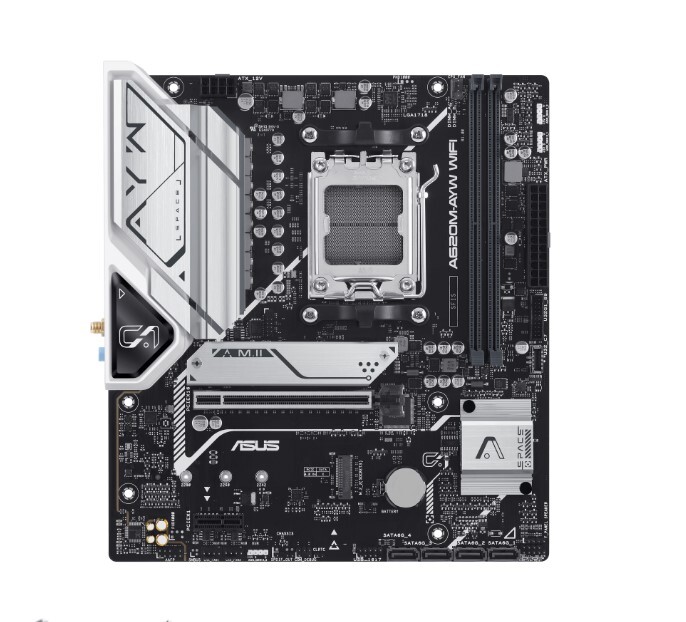

ASUS A620M-AYW WIFI AM5 Micro-ATX Motherboard

36 months

Specifications

Model Number	A620M-AYW-WIFI
CPU	AMD Socket AM5 for AMD Ryzen™ 7000 Series / 8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.
Chipset	AMD A620 Chipset
Memory	2 x DIMM slots, max. 96 GB, DDR5 8000+(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI™ port* * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Support max. 8K@60 Hz as specified in DisplayPort 1.4. * Supports 4K@60 Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0 x 16 slot (supports x 16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x 16 slot (supports x 8 / x 4 mode) AMD A620 Chipset** 1 x PCIe 3.0 x 1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 2 x M.2 Slots and 4 x SATA 6Gb/s Ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242 / 2260 / 2280 (supports PCIe 4.0 x 4 mode) M.2_2 slot (Key M), type 2242 / 2260 / 2280 (supports PCIe 4.0 x 4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242 / 2260 / 2280 (supports PCIe 4.0 x 4 mode) M.2_2 slot (Key M), type 2242 / 2260 / 2280 (supports PCIe 4.0 x 4 / x 2 mode) AMD A620 Chipset** 4 x SATA 6 Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0 / 1 / 10 and SATA RAID 0 / 1 / 10. ** Specifications vary by CPU types.
Ethernet	1 x Realtek 2.5 Gb Ethernet
Wireless & Bluetooth	Wi-Fi 6 1 x 1 Wi-Fi 6 (802.11 a / b / g / n / ac / ax) Supports 2.4 / 5G Hz frequency band Bluetooth® v5.3
USB	Rear USB (Total 8 Ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 Ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5 V /3 A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit / 192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

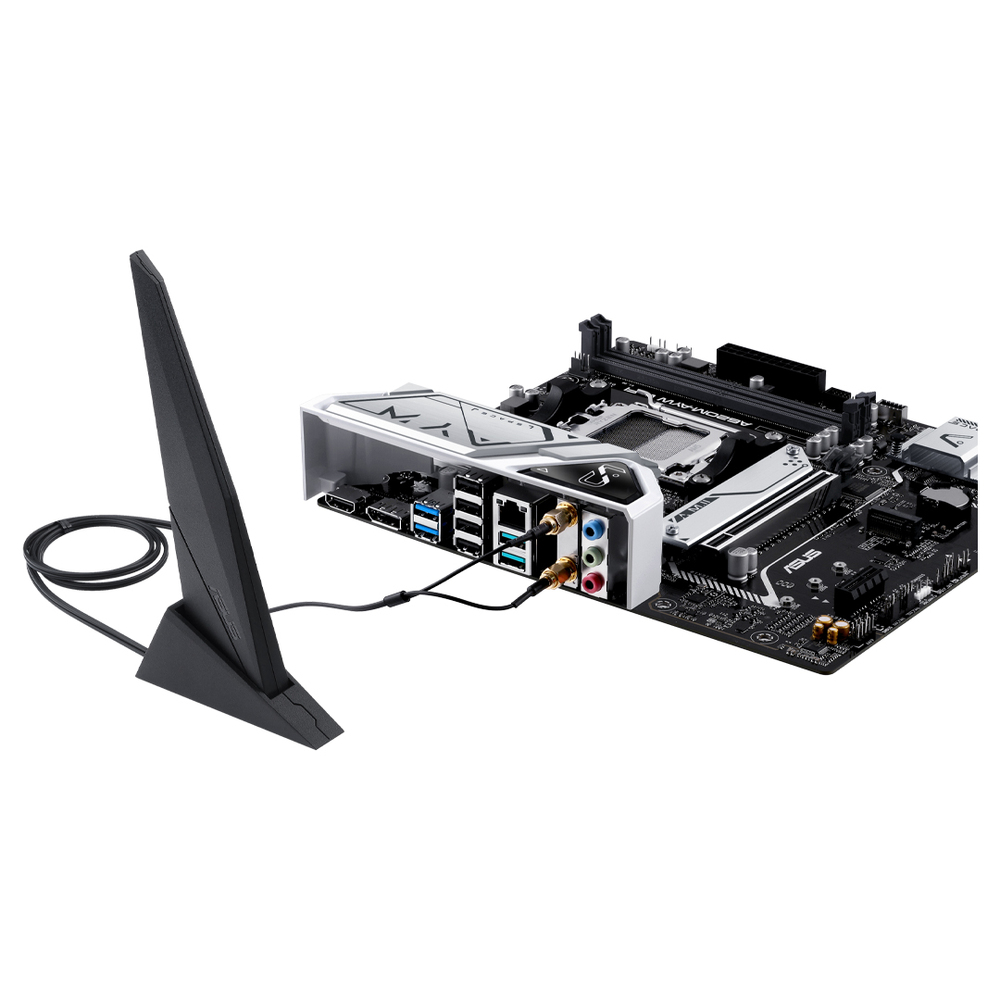

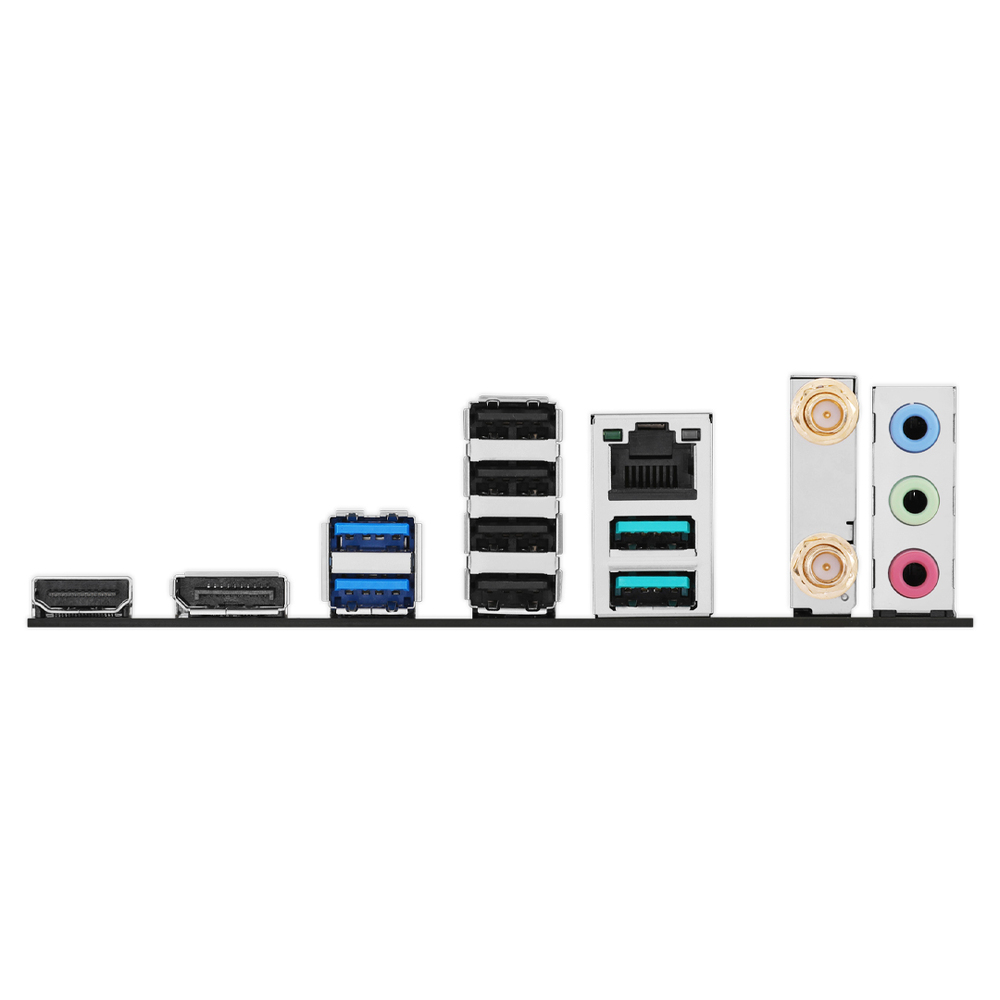

Back Panel I/O Ports	2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5 Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
Special Features	ASUS TUF Protection DIGI+ VRM LANGuard Overvoltage protection SafeSlot Core+ Stainless-steel back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design Aura Sync Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Power Saving Two-Way AI Noise Cancellation AI Suite 3 TurboV EVO DIGI+ VRM PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

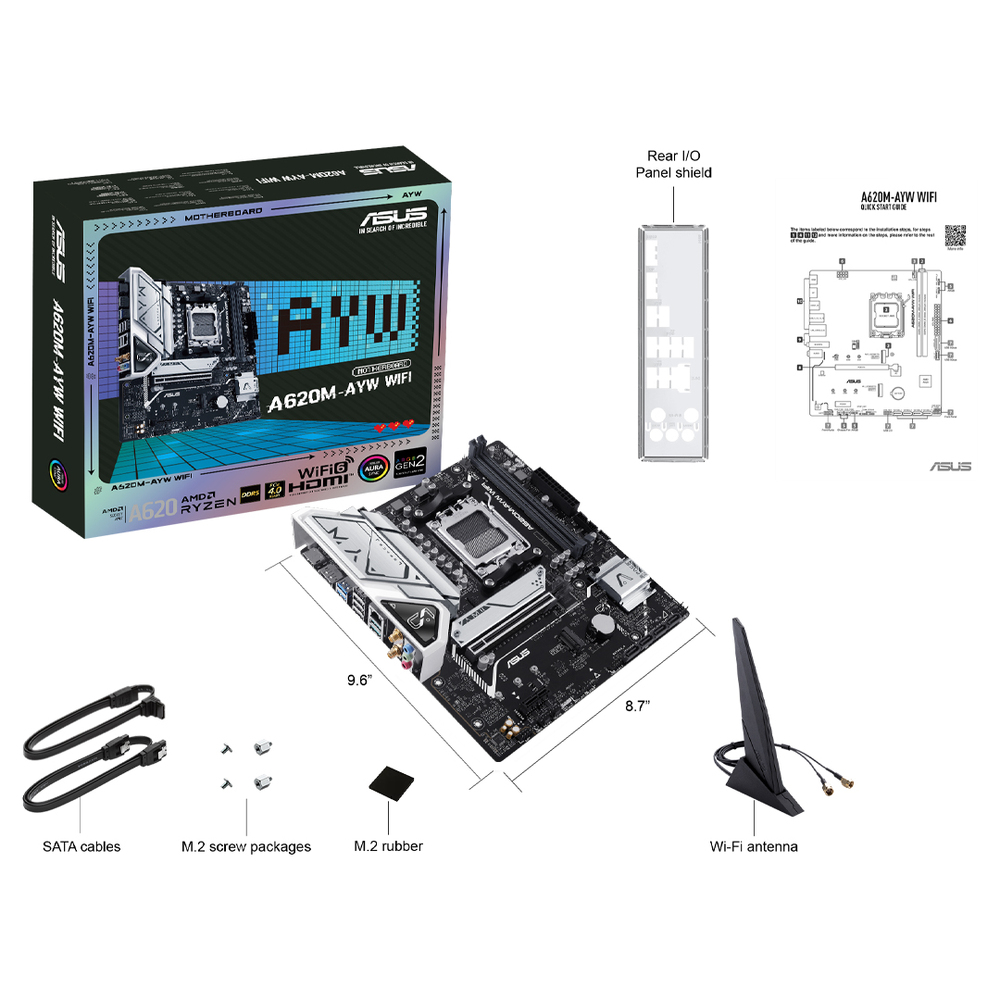

Accessories	Cables 2 x SATA 6 Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
