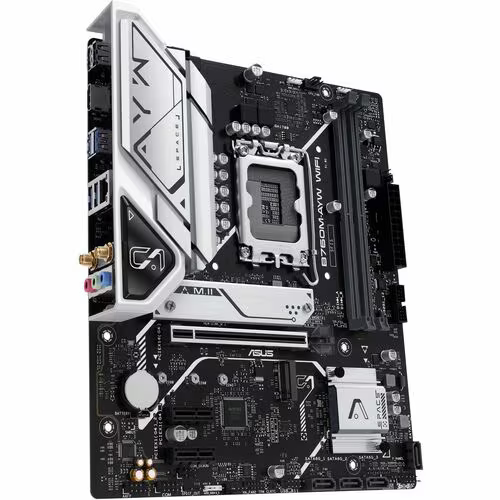

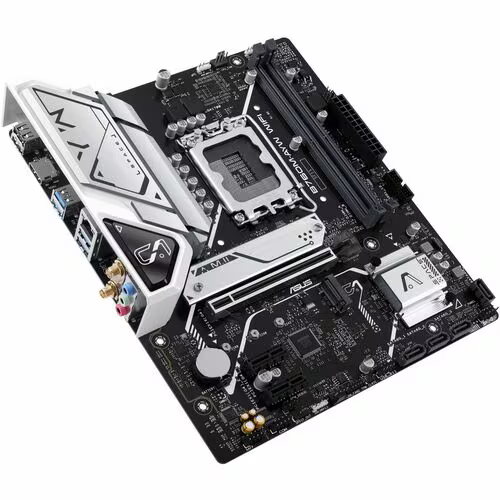

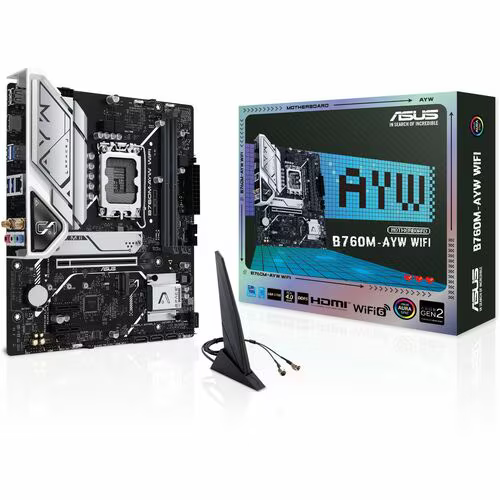

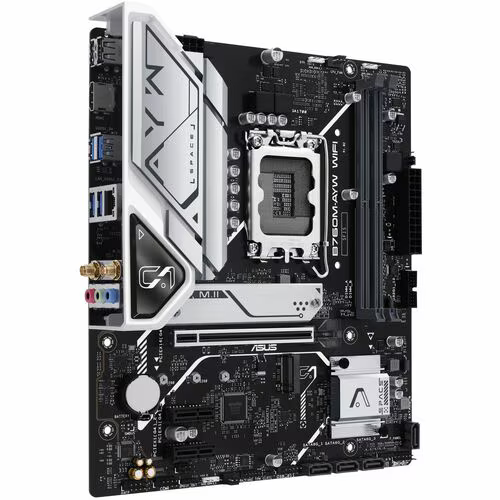

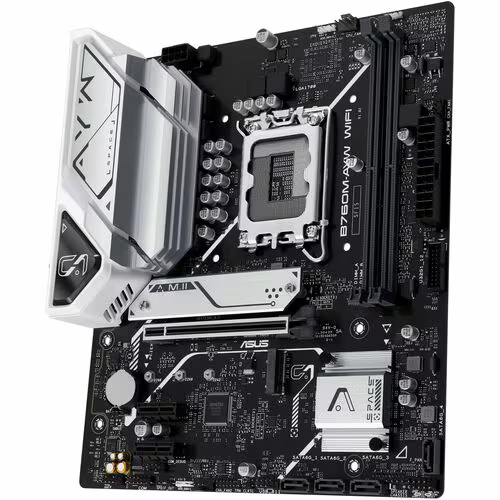

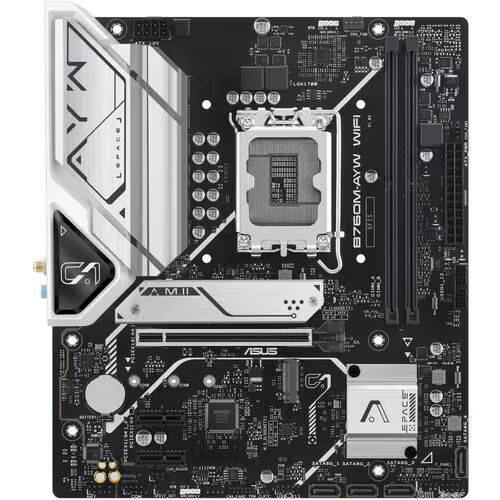

Asus B760M-AYW  LGA 1700 WIFI DDR5 mATX Motherboard Overview

36 months

Specifications:

Audio Channels 7.1
Brand Compatibility Intel
Onboard Video CPU Dependent Video
Form Factor Micro ATX
Width 244 mm
Depth 211 mm
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 4
Number of Onboard USB 2.0 Ports 2
Number of M.2 Interfaces 2
Number of PCI Express x1 Slots 2
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 4.0
Total Number of PCI Express Slots 3
Total Number of Expansion Slots 3.0
RAID Levels 0
  1
  10
  5
Controller Type Serial ATA/600
RAID Supported Yes
S/PDIF Yes
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
Total Number of USB Ports 6
Number of USB 3.2 Gen 1 Type-A Ports 4
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.3
2.5Gigabit Ethernet Yes
Product Type Desktop Motherboard
Manufacturer Part Number B760M-AYW WIFI
Manufacturer Website Address http://www.asus.com/au
Manufacturer ASUS Computer International
Product Model B760M-AYW WIFI
Product Name B760M-AYW WIFI Desktop Motherboard
Brand Name Asus
Processor Supported Core
  Celeron
  Pentium Gold
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model B760
Processor Generation Supported 14th Gen
  13th Gen
  12th Gen
Maximum Memory Supported 96 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 2
Memory Form Factor UDIMM
  DIMM
Memory Speed Supported 5800 MHz
  6000 MHz
  6200 MHz
  6400 MHz
  6600 MHz
  6800 MHz
  7000 MHz
  7200 MHz
  7400 MHz
  7600 MHz
  5600 MHz
  5400 MHz
  5200 MHz
  5000 MHz
  8000 MHz
  4800 MHz
  7800 MHz
SKU MBB760M-AYW-W
Brand Asus
Unit Of Measure ea
