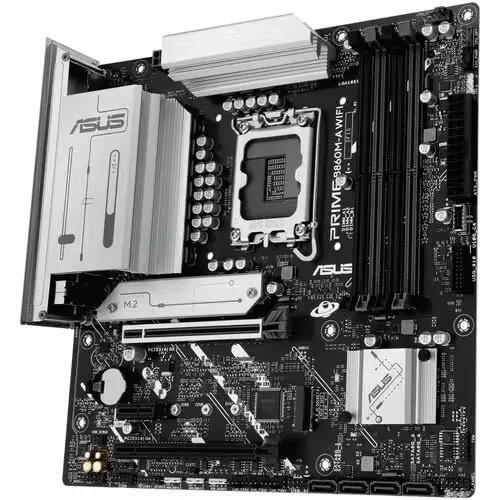

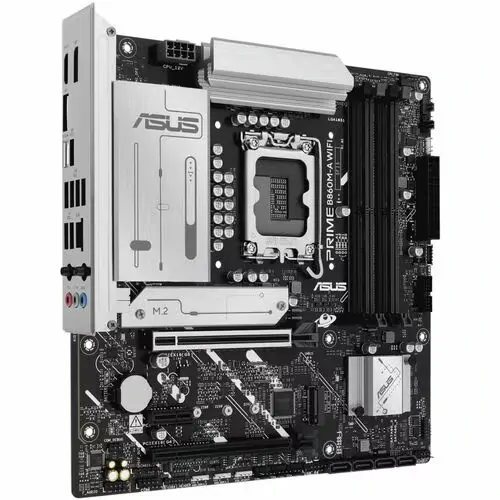

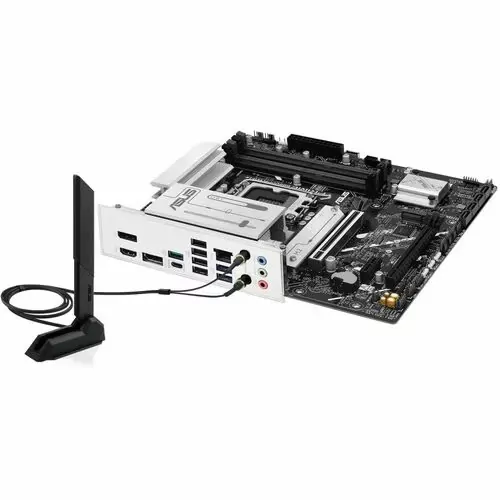

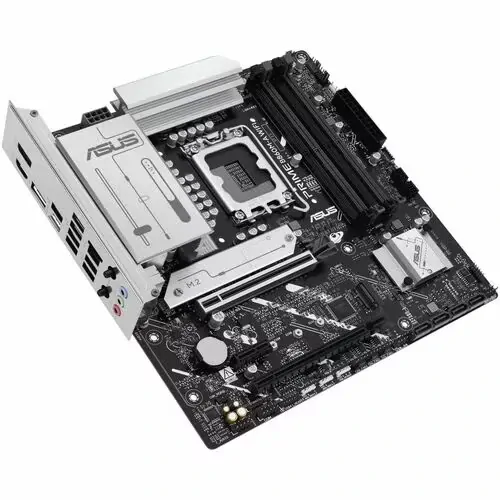

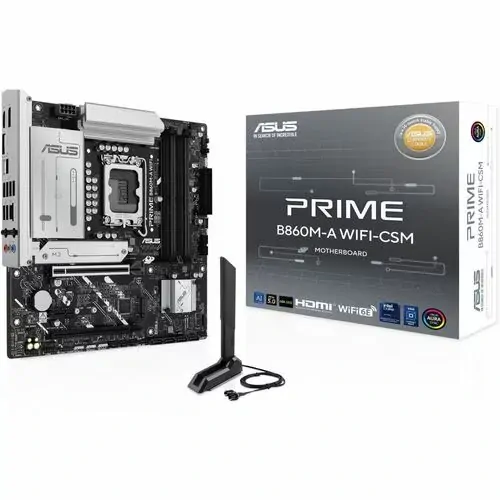

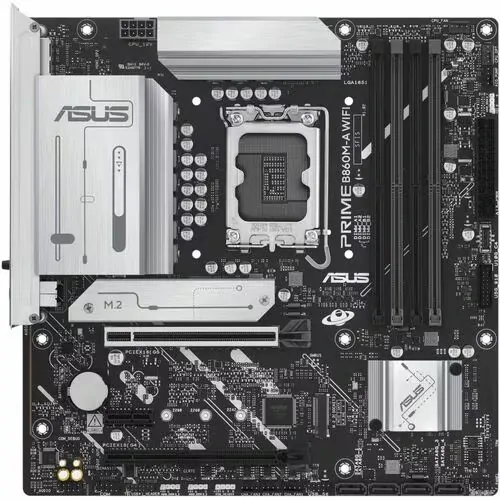

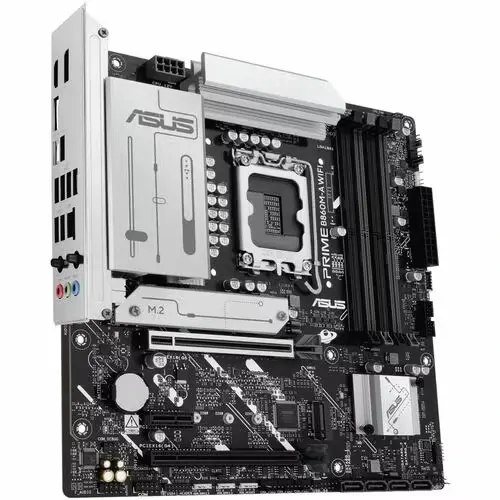

ASUS PRIME B860M-A WiFi-CSM LGA1851 mATX Motherboard Overview

36 months

Specifications:

Audio
Audio Channels 7.1
Technical Information
AI-powered Yes
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor Micro ATX
Width 243.8 mm
Depth 243.8 mm
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 5
Number of Onboard USB 2.0 Ports 2
Onboard S/PDIF Header Yes
Number of M.2 Interfaces 2
Processor & Chipset
Processor Supported Core Ultra
Total Processor Supported 1
Processor Socket Socket LGA-1851
Chipset Manufacturer Intel
Chipset Model B860
I/O Controller
RAID Levels 1
  10
  5
  0
Controller Type Serial ATA/600
RAID Supported Yes
I/O Expansions
Number of PCI Express x1 Slots 1
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 4.0
  PCI Express 5.0
Total Number of PCI Express Slots 3
Total Number of Expansion Slots 3
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ax
Bluetooth Standard Bluetooth 5.3
2.5Gigabit Ethernet Yes
Memory
Error Checking ECC
Maximum Memory Supported 256 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
  UDIMM
Memory Speed Supported 8666 MHz
General Information
Product Type Desktop Motherboard
Manufacturer Part Number PRIME B860M-A WIFI-CSM
Manufacturer Website Address http://www.asus.com/au
Manufacturer ASUS Computer International
Product Model B860M-A WIFI-CSM
Product Name PRIME B860M-A WIFI-CSM Desktop Motherboard
Product Line Prime
Brand Name Asus

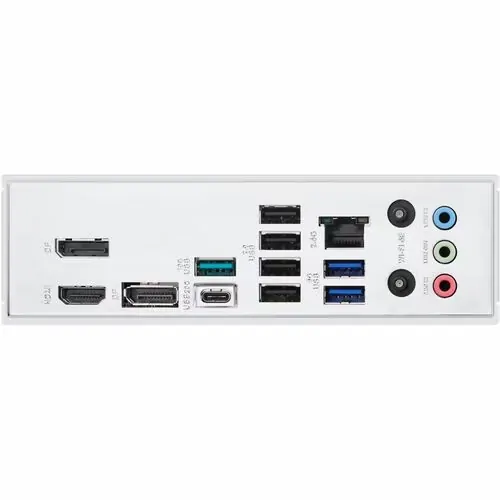

Interfaces/Ports
HDMI Yes
HDMI Version 2.1
VGA Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Thunderbolt Yes
Number of Thunderbolt 4 Ports 2
SKU 6371212
Brand ASUS
Unit Of Measure ea
