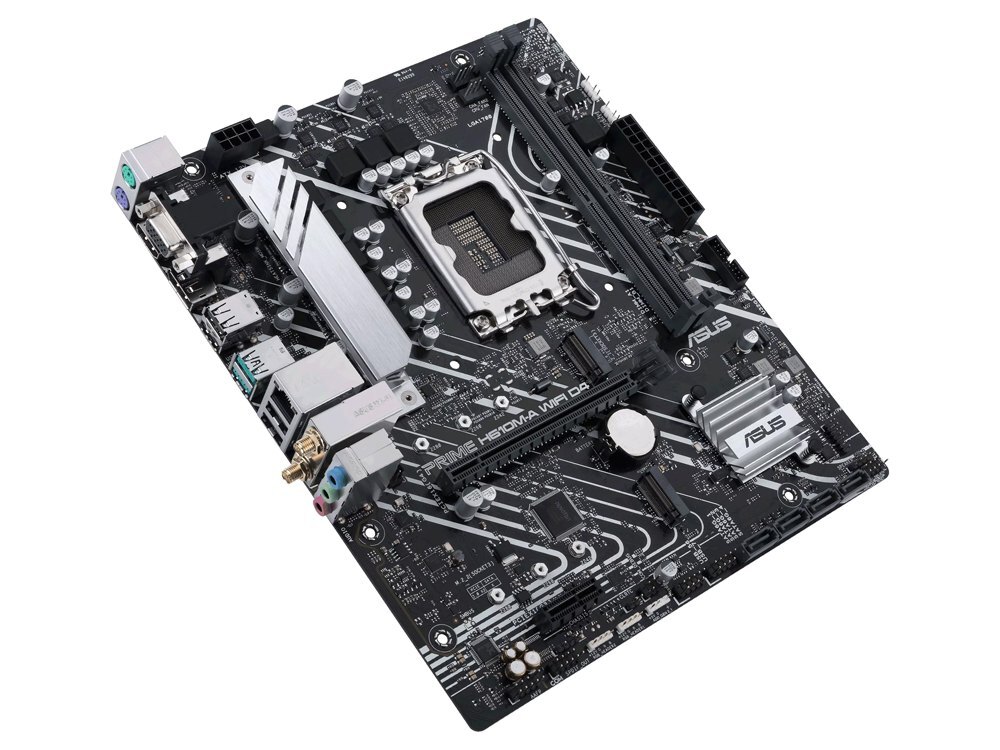

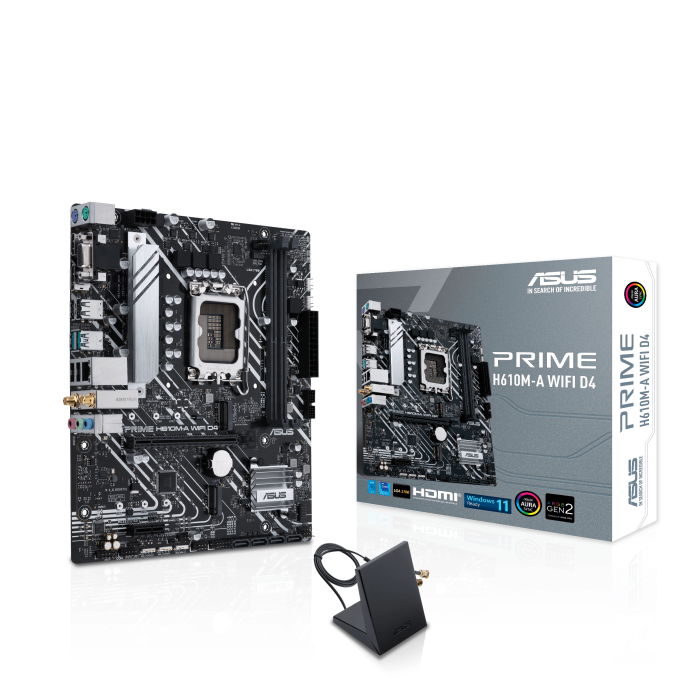

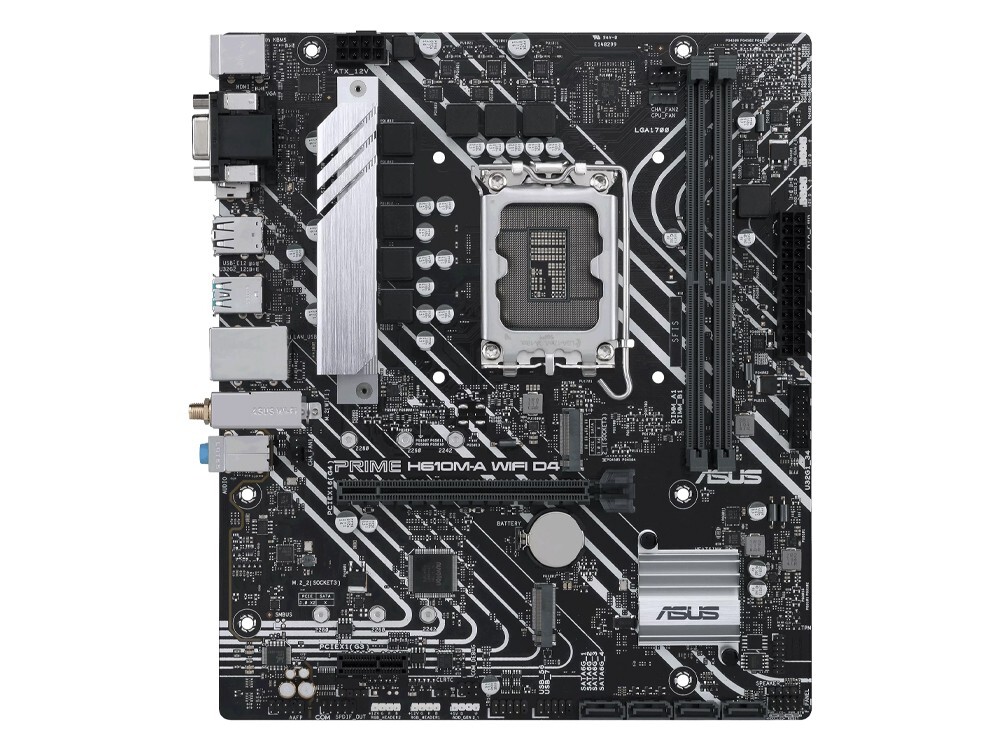

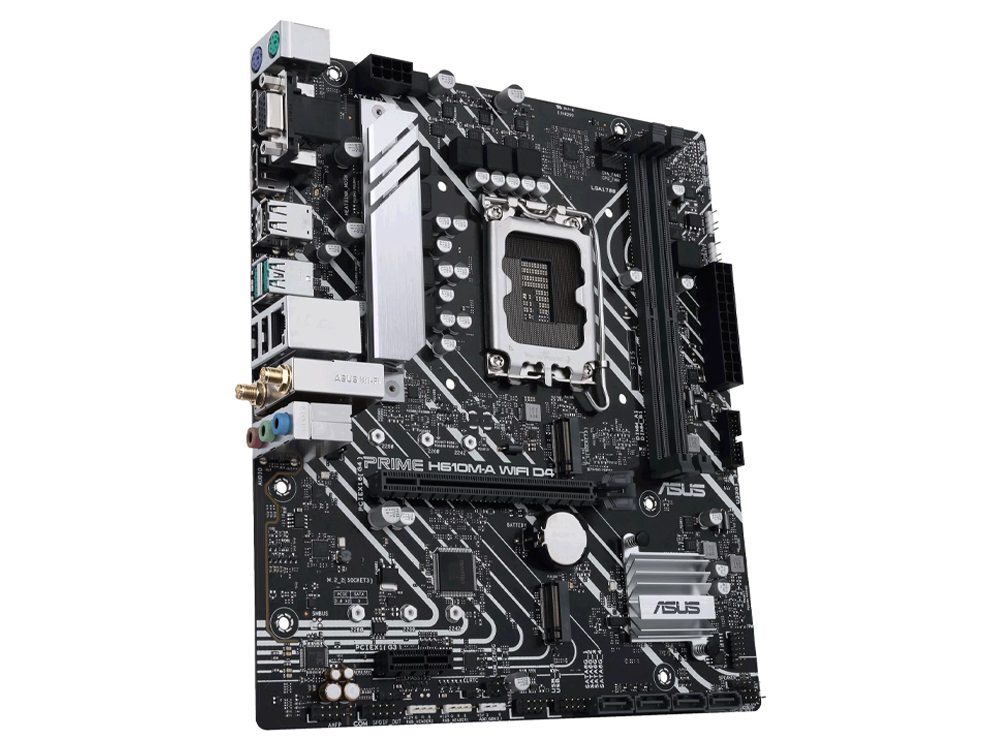

ASUS PRIME H610M-A WIFI D4 Intel LGA 1700 mATX Motherboard

36 months

Features

  • LGA 1700 socket:
  • Ready for 13th &12thGen Intel processors
  • Comprehensive cooling:
  • VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity:
  • 32Gbps M.2 slot, Intel 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
  • Aura Sync RGB:
  • Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Specifications:

Audio

Audio Channels 7.1

I/O Controller

Controller Type Serial ATA/600

Video

Onboard Video CPU Dependent Video

Miscellaneous

Environmentally Friendly Yes
Environmental Certification RoHS
Brand Compatibility Intel

Physical Characteristics

Form Factor Micro ATX
Width 243.8 mm
Depth 210.8 mm

Onboard Interfaces

Number of SATA Interfaces 4
Total Number of Onboard USB Ports 5
Number of Onboard USB 2.0 Ports 3
Number of M.2 Interfaces 2

Network & Communication

Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Bluetooth Standard Bluetooth 5.0

I/O Expansions

Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 2
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 4.0
PCI Express 3.0
Total Number of PCI Express Slots 2

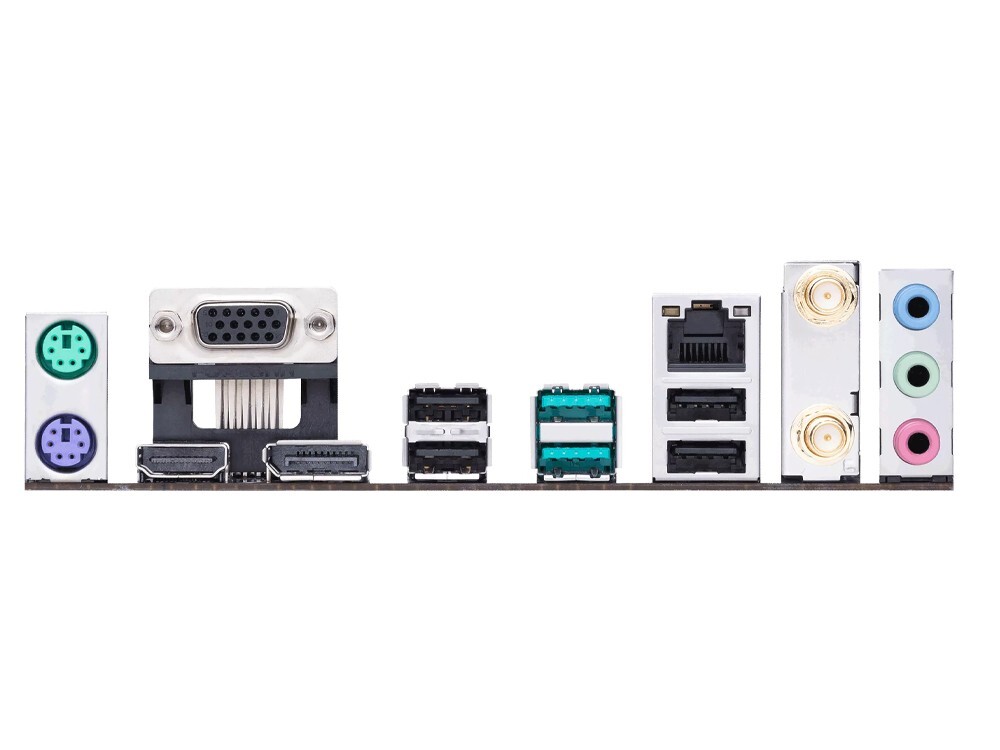

Interfaces/Ports

S/PDIF Yes
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 3.2 Gen 2 Type-A Ports 2

General Information

Product Type Desktop Motherboard
Manufacturer Part Number PRIMEH610MAWIFID4
Manufacturer Website Address http://www.asus.com/au
Manufacturer ASUS Computer International
Product Model PRIME H610M-A WIFI D4
Product Name PRIME H610M-A WIFI D4 Desktop Motherboard
Product Line Prime
Brand Name Asus

Processor & Chipset

Processor Supported Core
Pentium Gold
Celeron
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model H610
Processor Generation Supported 13th Gen
12th Gen
13th Gen
12th Gen

Memory

Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 2
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 3000 MHz
3200 MHz
2933 MHz
2133 MHz
2666 MHz
2800 MHz
2400 MHz
SKU MBH610M-A-WD4
Brand ASUS
Unit Of Measure ea
