ASUS Radeon DUAL RX7700 XT 12GB GDDR6 OC Graphics Card Overview

36 months

  • OC Mode: up to 2599 MHz (Boost Clock) / up to 2239 MHz (Game Clock)
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs
  • Auto-extreme technology uses automation to enhance reliability

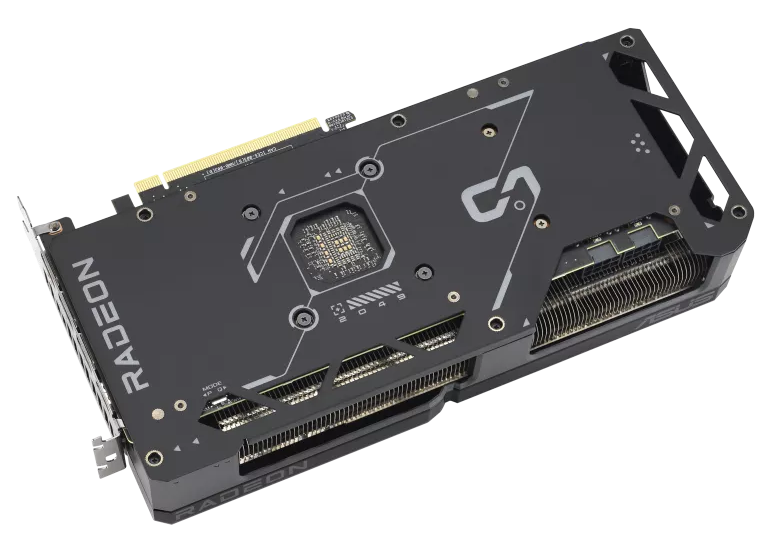

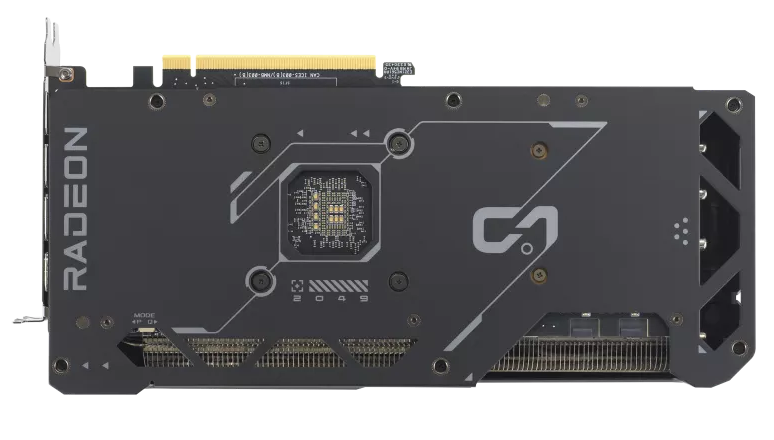

  • A protective backplate prevents PCB flex and trace damage
  • GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Specifications


Model TUF-RX7700XT-O12G-GAMING
Graphic Engine AMD Radeon™ RX 7700 XT
Bus Standard PCI Express 4.0
OpenGL OpenGL®4.6
Video Memory 12GB GDDR6
Engine Clock

OC mode : up to 2599 MHz (Boost Clock)/up to 2425 MHz (Game Clock)
Default mode : up to 2599 MHz (Boost Clock)/up to 2276 MHz (Game Clock)

Stream Processors 3456
Memory Speed 18 Gbps
Memory Interface 192-bit
Resolution Digital Max Resolution 7680 x 4320

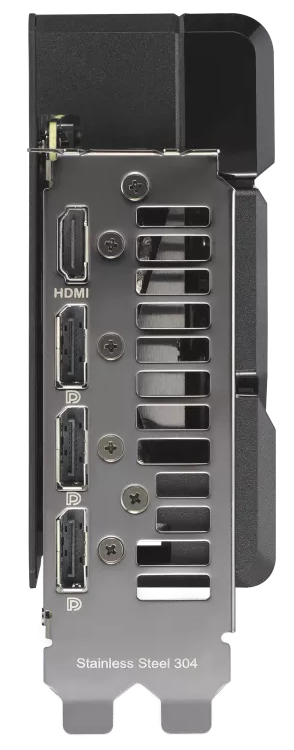

Interface Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 2.1)
HDCP Support Yes (2.3)
Maximum Display Support 4
NVlink/ Crossfire Support No
Accessories 1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Collection card
1 x Thank you card
1 x Speedsetup Manual
Software ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions 319.8 x 150.9 x 59.2 mm
Recommended PSU 750W
Power Connectors 2 x 8-pin
Slot 2.96 Slot
AURA SYNC ARGB
Note ASUS's wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on their PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
If two DisplayPort 2.1 monitors are connected, a third monitor will be limited to DisplayPort 1.4 functionality
SKU GARX7700XTADO
Brand ASUS
Unit Of Measure ea
