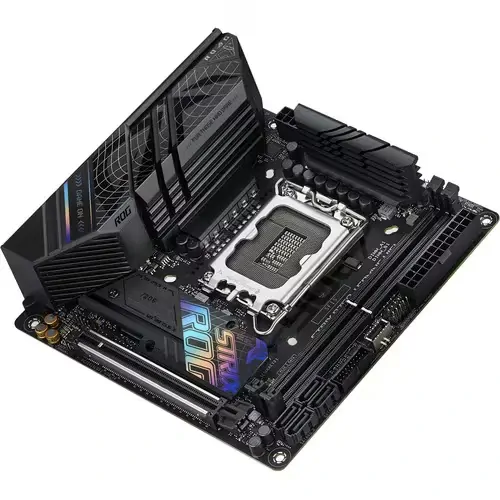

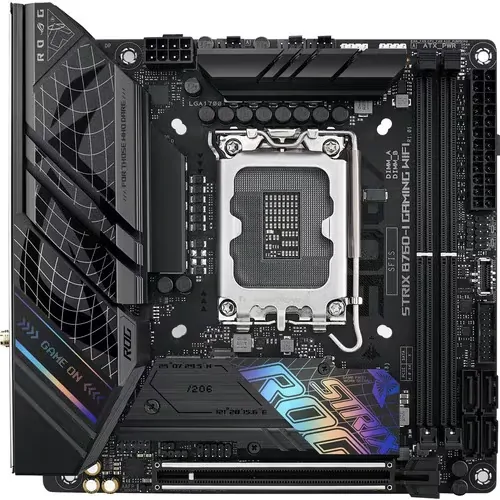

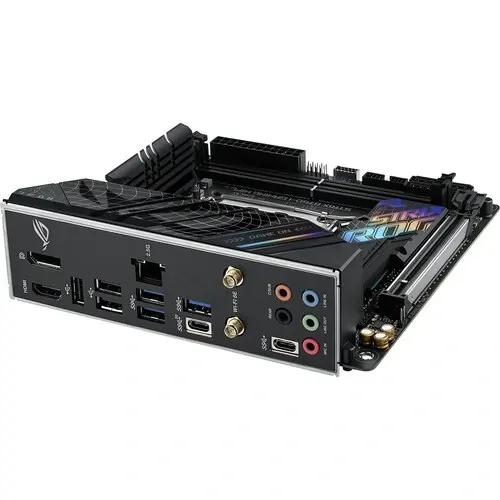

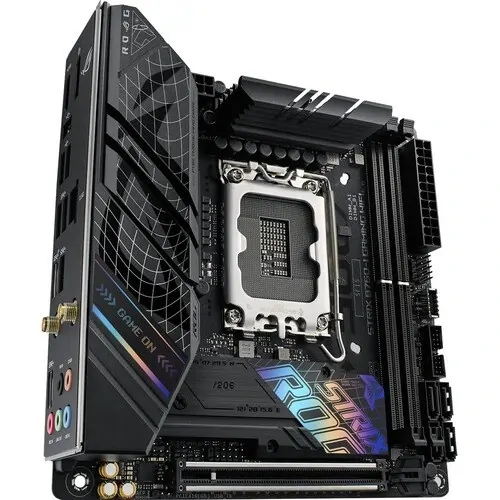

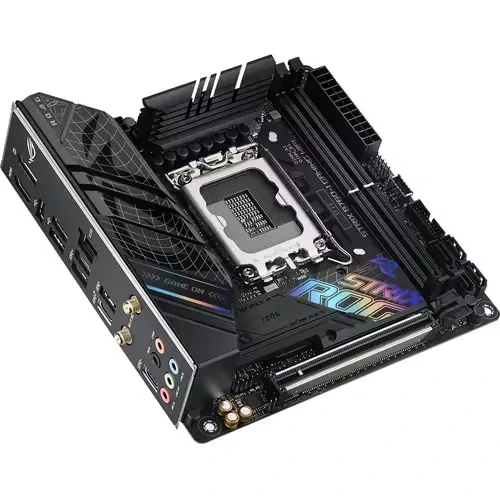

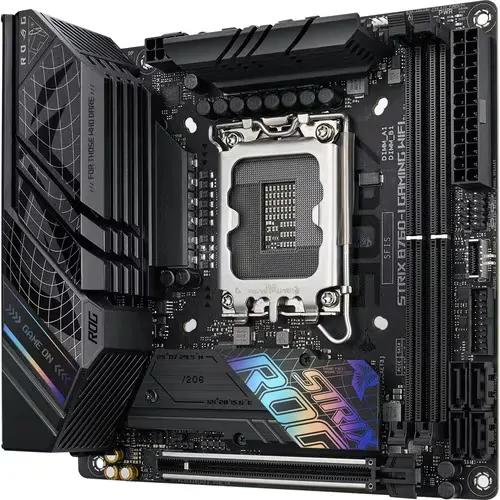

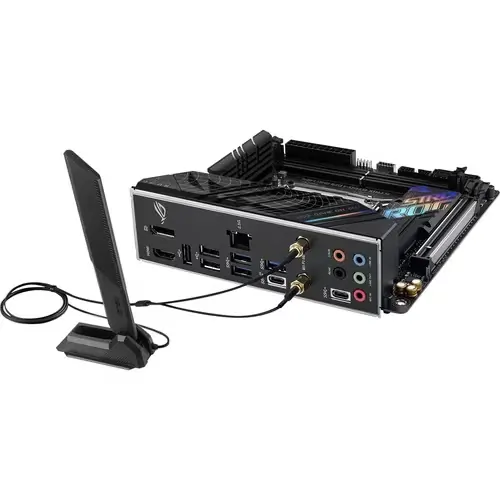

ASUS ROG Strix B760-I Gaming LGA1700 Wi-Fi ITX DDR5 Motherboard Overview

36 months

Specifitcations:

Audio
Audio Channels 7.1
Miscellaneous
Brand Compatibility Intel
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor Mini ITX
Width 170.2 mm
Depth 170.2 mm
I/O Expansions
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 5.0
Total Number of PCI Express Slots 1
Total Number of Expansion Slots 1.0
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 5
Number of Onboard USB 2.0 Ports 2
Number of M.2 Interfaces 2
I/O Controller
RAID Levels 0
  10
  1
  5
Controller Type Serial ATA/600
RAID Supported Yes
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.3
2.5Gigabit Ethernet Yes
Interfaces/Ports
S/PDIF Yes
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Number of USB 3.2 Gen 1 Type-A Ports 3
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number ROG STRIX B760-I GAMING WIFI
Manufacturer Website Address http://www.asus.com/au
Manufacturer ASUS Computer International
Product Model B760-I GAMING WIFI
Product Name STRIX B760-I GAMING WIFI Gaming Desktop Motherboard
Product Line Strix
Brand Name Asus ROG
Processor & Chipset
Processor Supported Core
  Celeron
  Pentium Gold
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model B760
Processor Generation Supported 12th Gen
  13th Gen
Memory
Maximum Memory Supported 64 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 2
Memory Form Factor DIMM
  UDIMM
Memory Speed Supported 4800 MHz
  5000 MHz
  7600 MHz
  5600 MHz
  5800 MHz
  6000 MHz
  6200 MHz
  6400 MHz
  6600 MHz
  6800 MHz
  7000 MHz
  7200 MHz
  7466 MHz
  5200 MHz
  5400 MHz

From the manufacturer

Warranty & Shipping Dimensions

SKU MBA-B760-I-ROGWF
Brand ASUS
Shipping Weight 2.0000kg
Unit Of Measure ea
