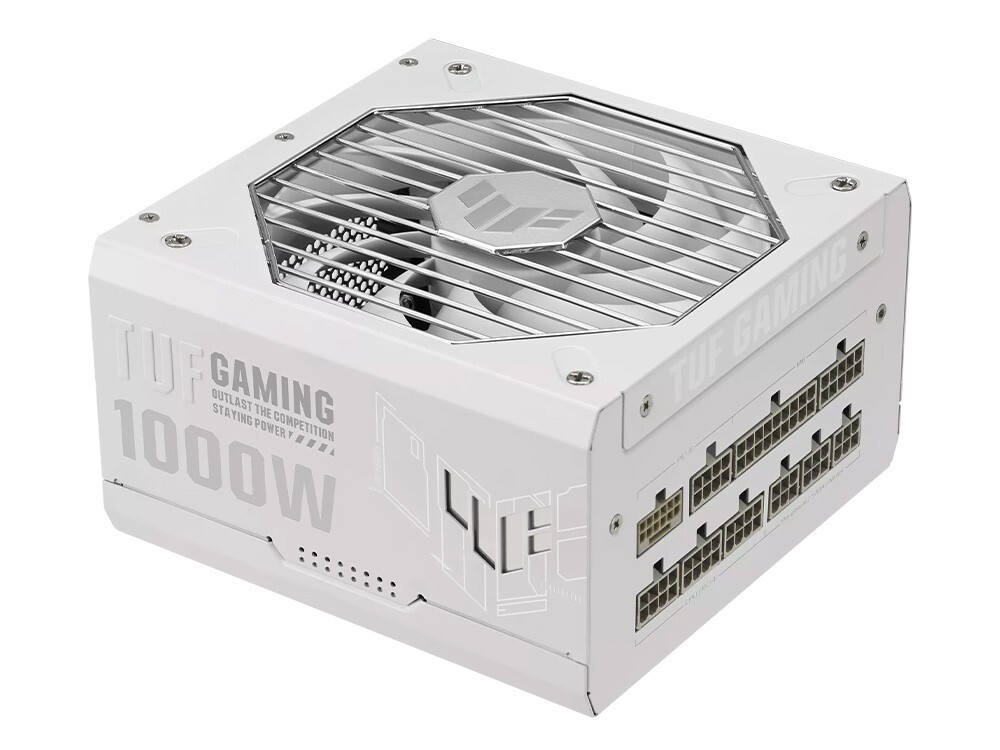

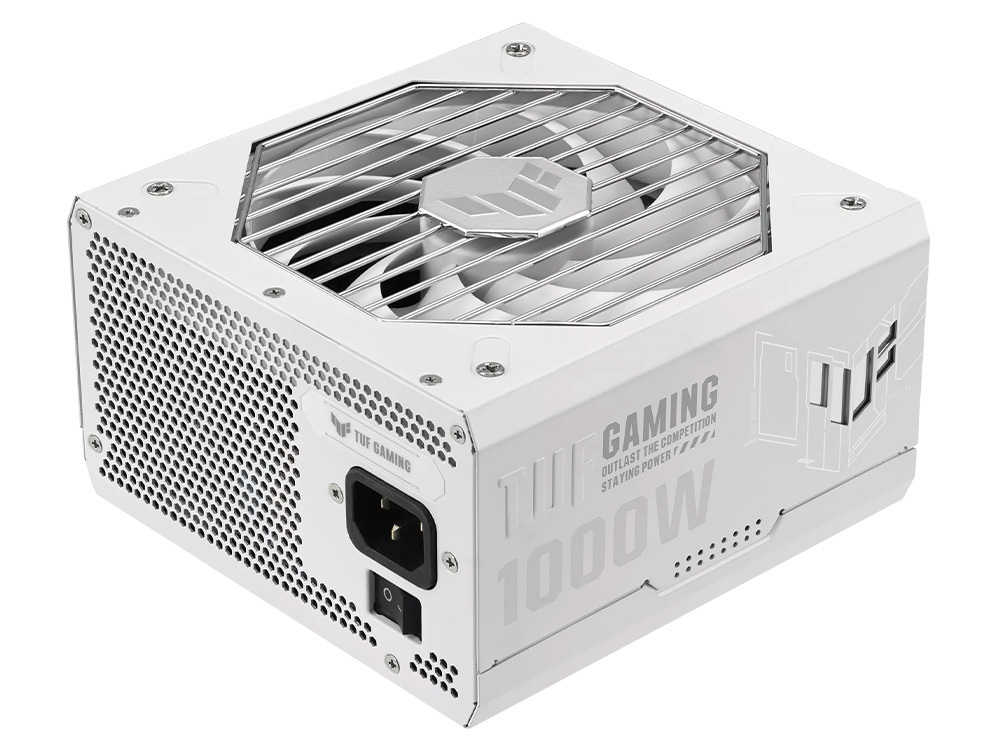

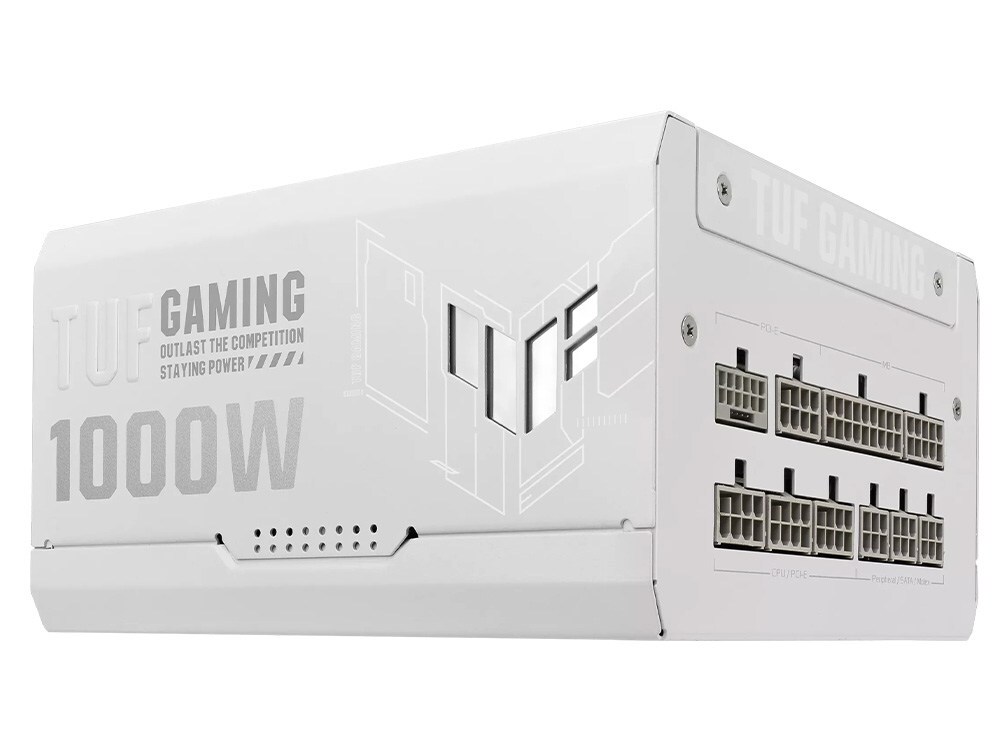

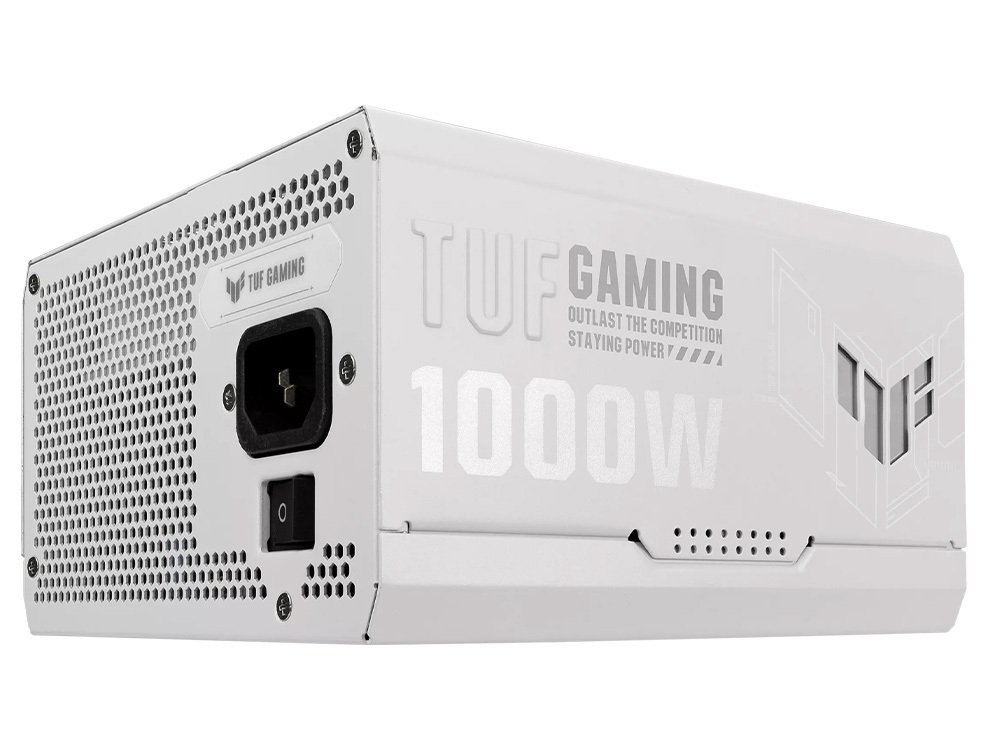

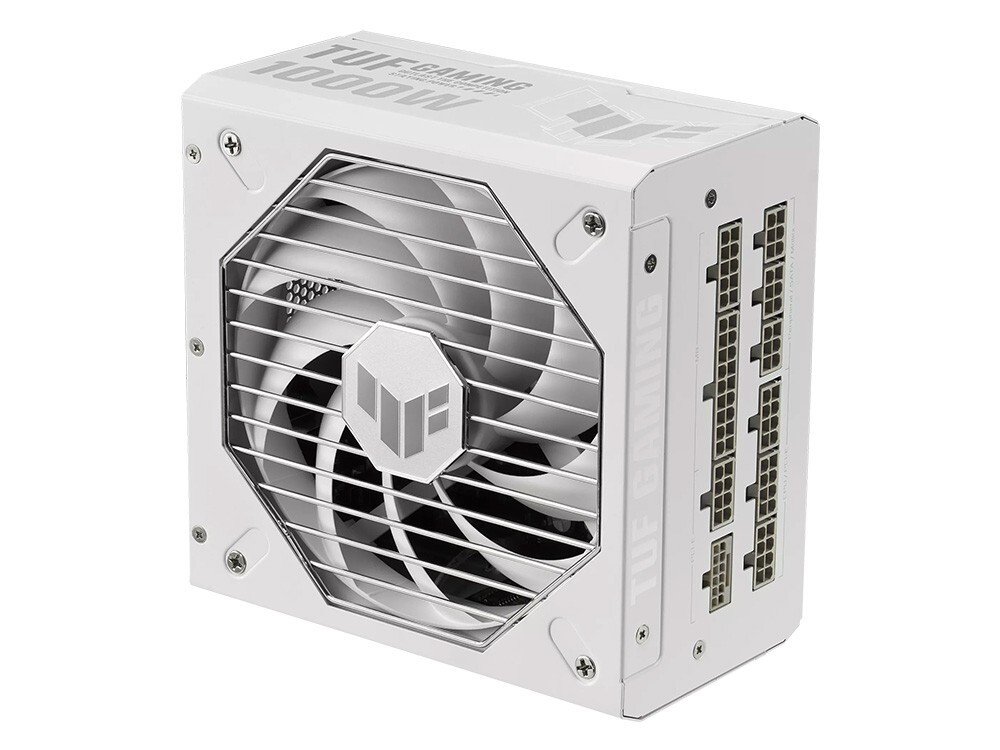

Asus TUF GAMING 1000G WHITE 1000W 80+ Gold Fully Modular ATX Power Supply Overview

120 months

Specifications


Model Number TUF-GAMING-1000G-WHITE
Intel Form Factor ATX12V
PFC Type Active PFC
ATX 3.0 Yes
Dimensions 150 x 150 x 86 mm
Efficiency 80 Plus Gold
Protection Features OPP / OVP / UVP / SCP / OCP / OTP
Hazardous Materials ROHS

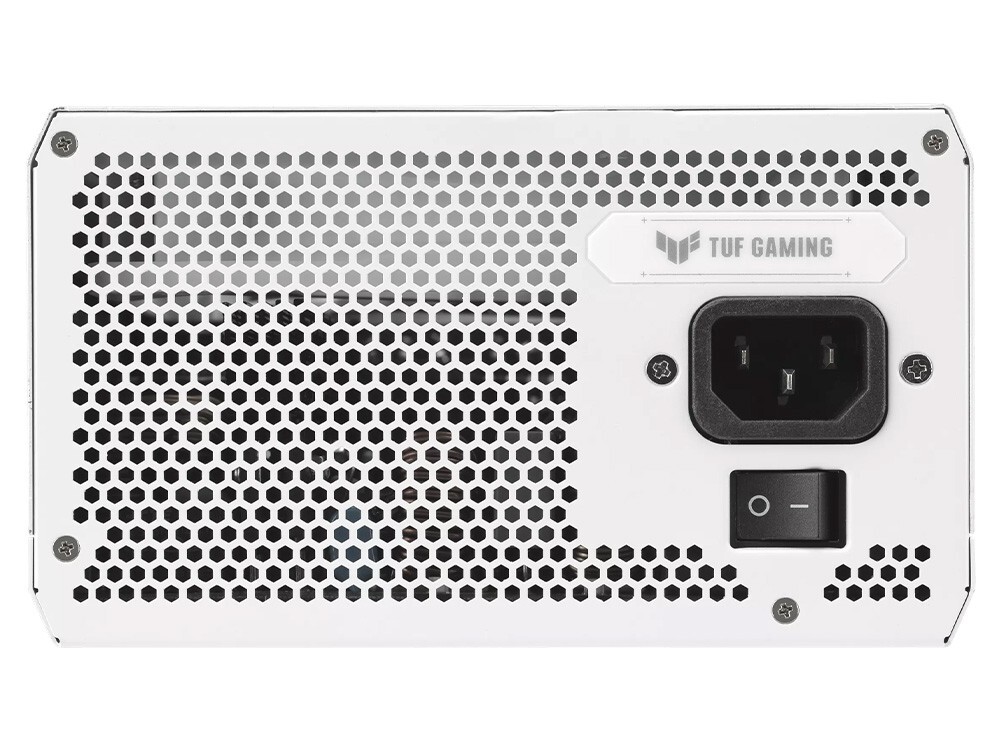

AC Input Range 100 - 240 Vac
DC Output Voltage +3.3 V +5 V +12 V -12 V +5 Vsb
Maximum Load 25 A 25 A 83.3 A 0.8 A 3 A
Combined Load 130 W 130 W 1000 W 9.6 W 15 W
Total Output 1000 W

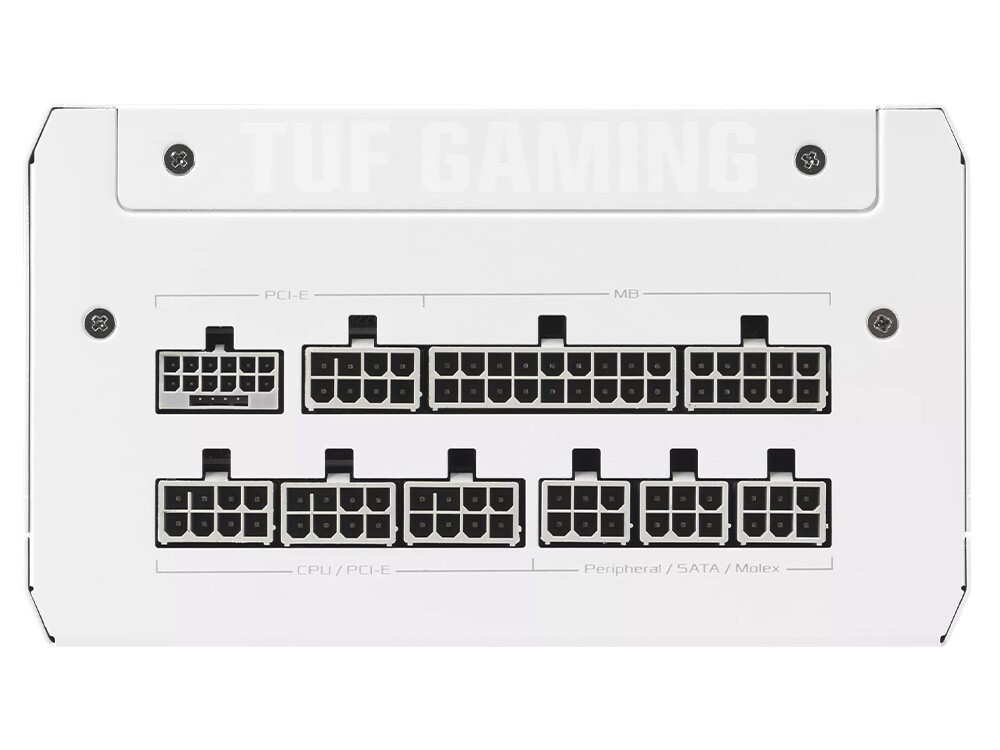

Cable Connectors MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
Peripheral x 4

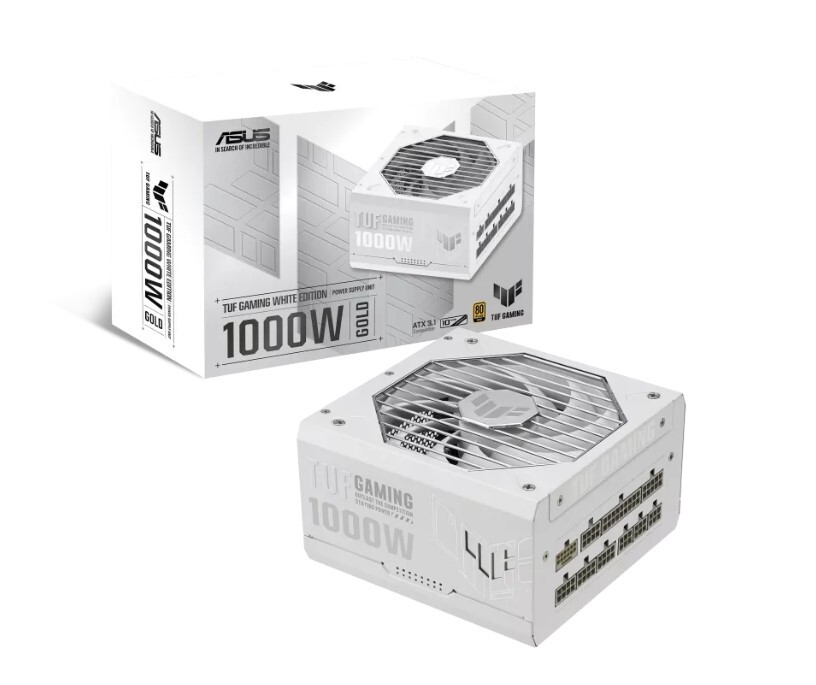

Package Contents Power Cord x 1
Motherboard Power Cable x 1 (610 mm)
CPU Cable x 2 (650 mm)
PCI-E Gen 5 16-pin Cable x 1 (675 mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675 mm)
PCI-E 1-to-1 Cable x 2 (675 mm)
SATA 1-to-2 Cable x 1 (400 + 120 mm)
SATA 1-to-3 Cable x 1 (400 + 120 + 120 mm)
Peripheral 1-to-4 Cable x 1 (400 + 150 + 150 + 150 mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight 2.48 kg (single PSU)

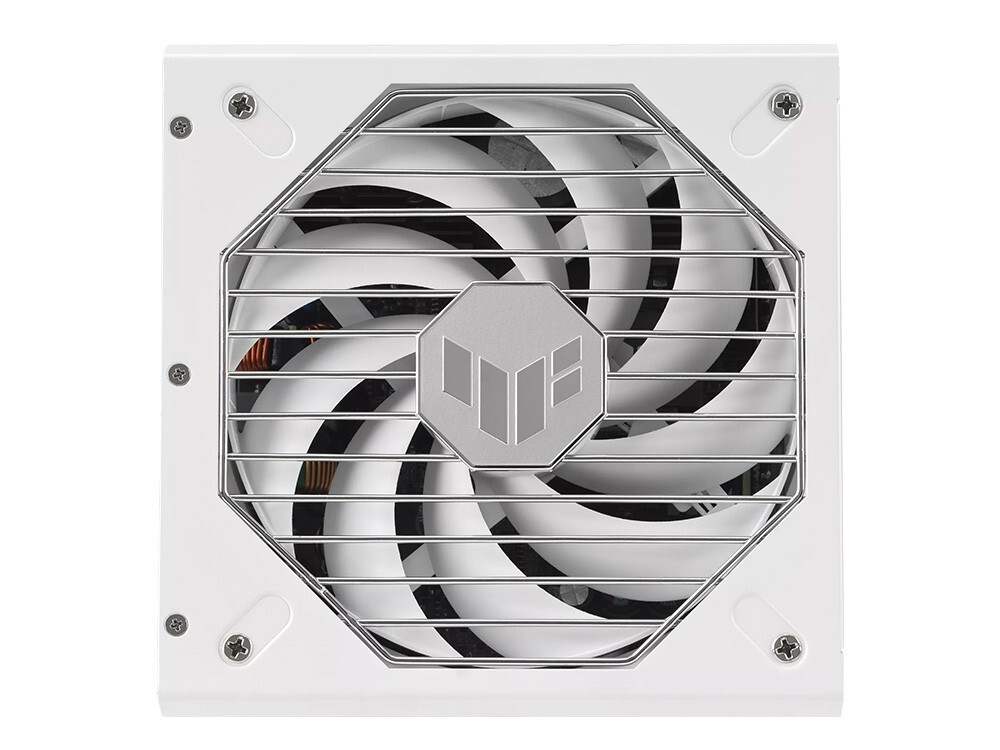

0dB Technology Supported. The fan shuts off entirely when the PSU is under certain load
SKU PSAS-TUF-G-1000G-W
Brand ASUS
Unit Of Measure ea
