24 months

Key features

- Line-interactive UPS Topology
- Energy Saving Technology
- Active PFC Compatible
- Pure Sine Wave Output
- Automatic Voltage Regulation (AVR)

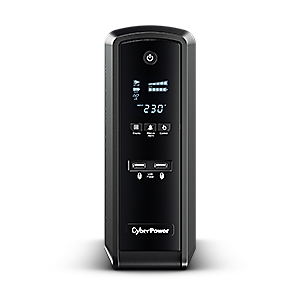

- LCD Status Display
- LED Status Indicator
- PowerPanel® Management Software
- Surge and Spike Protection
- Phone/ Fax/ Modem/ DSL/ Network Protection
- USB Charging Port

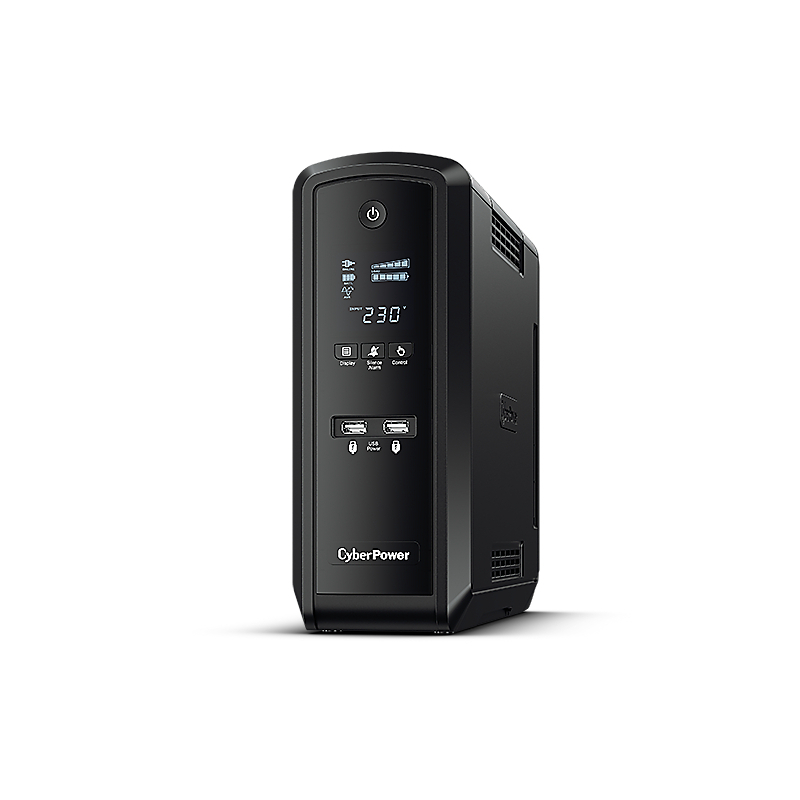

- Tower Form Factor
- TYPICAL APPLICATION
- PCs & Workstations
- Computers & Laptops
- Printers & Office Devices
- SOHO Networking Devices
- Phone/Fax/Modem
- Video/Audio Equipment
- NAS & Servers
- Home Theater Systems
- DVRs/Surveillance Systems
- POS Systems
- Home Desktop
- Home Office
- Office Desktop
- Back Office

Specifications

GENERAL

UPS Topology

Line-interactive

Energy Saving Technology

GreenPower UPS™ Bypass Technology

Active PFC Compatibility

Yes

INPUT

Nominal Input Voltage (Vac)

230

Input Voltage Range (Vac)

170 ~ 270

Input Frequency (Hz)

50 ± 3

60 ± 3

Input Frequency Detection

Auto-sensing

Rated Input Current (A)

10

Input Connector Type

IEC C14

Detachable Power Cord Plug Type

AU

Power Cord Length (ft.)

6

Power Cord Length (m.)

1.83

OUTPUT

Capacity (VA)

1300

Capacity (Watts)

780

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) (Vac)

230 ± 10%

On Battery Frequency (Hz)

50 ± 1%

60 ± 1%

Automatic Voltage Regulation (AVR)

Single Boost

Overload Protection

Internal Current Limiting , Circuit Breaker

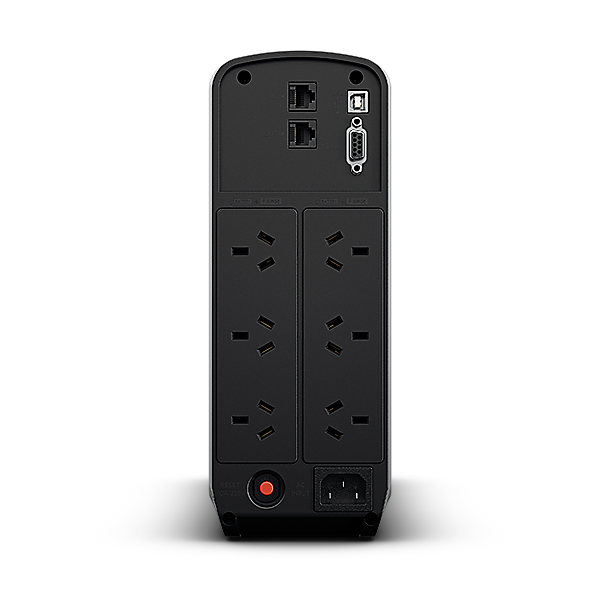

Outlets - Total (Socket)

6

Outlet Type (Socket)

AU x 6

Outlets - Battery & Surge Protected (Socket)

6

Outlets - Surge-Only Protected (Socket)

0

Outlets - Battery Backup (Socket)

0

Outlets - Extension (Socket)

0

Outlets - Widely Spaced (Socket)

0

Outlets - Critical Load (CL) (Socket)

0

Outlets - Non-Critical Load (NCL) (Socket)

0

Outlets - ECO Controlled Outlets (ECO Mode) (Socket)

0

USB Charging Ports (Port)

2

USB Charging Current (A)

2.1

Typical Transfer Time (ms)

4

BATTERY

Runtime at Half Load (min)

9

Runtime at Full Load (min)

2

Typical Recharge Time (Hours)

8

Start On Battery

Yes

User Replaceable

Yes

Battery Type

Sealed Lead-acid

Replacement Battery Pack

RBP0124

RBP Quantity (pcs)

1

SURGE PROTECTION & FILTERING

Surge Suppression (Joules)

405

EMI/RFI Filtration

Yes

Phone/Network Protection RJ11/RJ45 (Combo)

1-in, 1-out

MANAGEMENT & COMMUNICATIONS

LCD Panel

Yes

LCD Information Display

Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information ,Event & Log

LCD Setting & Control

Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning , Event & Log

LED Indicators

Power On

HID Compliant USB Port (pcs)

1

Serial Port

Combo (RS232 + Dry Contact)

Audible Alarms

Battery Mode , Low Battery , Overload , UPS Fault

Power Management Software

PowerPanel® Personal Edition

PHYSICAL

Form Factor

Tower

Enclosure Construction

Plastic

Color

Black

PHYSICAL SIZE - UPS MODULE

Dimensions (WxHxD) (in.)

3.94 x 10.43 x 14.57

Dimensions (WxHxD) (mm.)

100 x 265 x 370

Weight (lbs.)

21.83

Weight (kg.)

9.9

SHIPPING DIMENSIONS

Dimensions (WxHxD) (in.)

7.68 x 14.57 x 18.35

Dimensions (WxHxD) (mm.)

195 x 370 x 466

Weight (lbs.)

25.57

Weight (kg.)

11.6

ENVIRONMENTAL

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) (%)

0 ~ 95

Operating Elevation (feet/meters)

0-1,000 feet (0-300 meters)

Storage Temperature (°F)

5 ~ 113

Storage Temperature (°C)

-15 ~ 45

Storage Relative Humidity (Non-condensing) (%)

0 ~ 95

Storage Elevation (feet/meters)

0-5,000 feet (0-1,500 meters)

Online Thermal Dissipation (BTU/hr)

41

CERTIFICATIONS

Certifications

CE , EAC , RCM

RoHS

Yes

WARRANTY

Product Warranty Period (Year)2

Battery Warranty Period (Year)2
