GENERAL

Phase

Single Phase

Form Factor

Tower

UPS Topology

Line-interactive

Energy Saving Technology

GreenPower UPS™ Bypass Technology

INPUT

Generator Compatibility

Yes

Nominal Input Voltage ( Vac )

230 ± 10%

Input Voltage Range ( Vac )

167 ~ 295

Input Frequency ( Hz )

50 ± 5

60 ± 5

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

4.35

Input Connector Type

IEC C14 　

Detachable Power Cord Plug Type

AU x 1   　

Power Cord Length (ft.)

5

Power Cord Length (m.)

1.5

OUTPUT

Capacity (VA)

1000

Capacity (Watts)

550

On Battery Waveform

Simulated Sine Wave

On Battery Voltage(s) ( Vac )

230 ± 10 %

On Battery Frequency ( Hz )

50 ± 1%

60 ± 1%

Automatic Voltage Regulation (AVR)

Single Boost, Single Buck

Overload Protection

Circuit Breaker

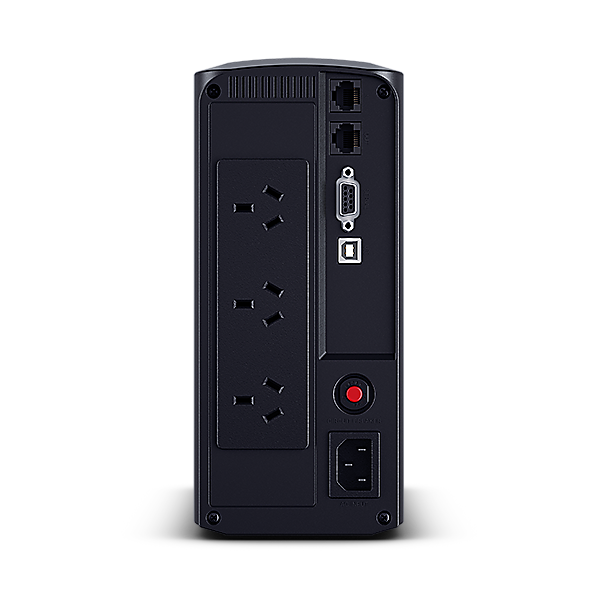

Outlet(s) - Total

3

Outlet Type

AU x 3   　

Outlet(s) - Battery & Surge Protected

3

Typical Transfer Time ( ms )

4

BATTERY

Runtime at Half Load ( min )

9

Runtime at Full Load ( min )

1

Typical Recharge Time ( Hours )

8

Start On Battery

Yes

User-replaceable

No

Battery Type

Sealed Lead-acid

SURGE PROTECTION & FILTERING

Surge Suppression ( Joules )

450

EMI/RFI Filtration

Yes

Phone/Network Protection RJ11/RJ45 (Combo)

1-in, 1-out

MANAGEMENT & COMMUNICATIONS

LCD Panel

Yes

LCD Information Display

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information

LCD Setting & Control

Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning

LED Indicators

Power On

HID Compliant USB Port(s)

1

Audible Alarms

Battery Mode, Low Battery, Overload, UPS Fault

Management Cable ( pcs )

USB Cable x1

Ethernet Data Transmission Speed

Up to 1Gbps

Power Management Software

PowerPanel Personal (Recommended)

PHYSICAL

Enclosure Construction

Plastic

Color

Black

PHYSICAL SIZE - UPS MODULE

Dimensions (WxHxD) (in.)

3.9 x 8.9 x 10.2

Dimensions (WxHxD) (mm.)

100 x 227 x 260

Weight (lbs.)

13.73

Weight (kg.)

6.23

ENVIRONMENTAL

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 90

Operating Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)

-4 ~ 122

Storage Temperature (°C)

-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )

0 ~ 90

Storage Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Online Thermal Dissipation ( BTU/hr )

23.9

Audible Noise at 1.0M from Surface of Unit ( dBA )

40

CERTIFICATIONS

Certifications

CE, RCM

RoHS

Yes
