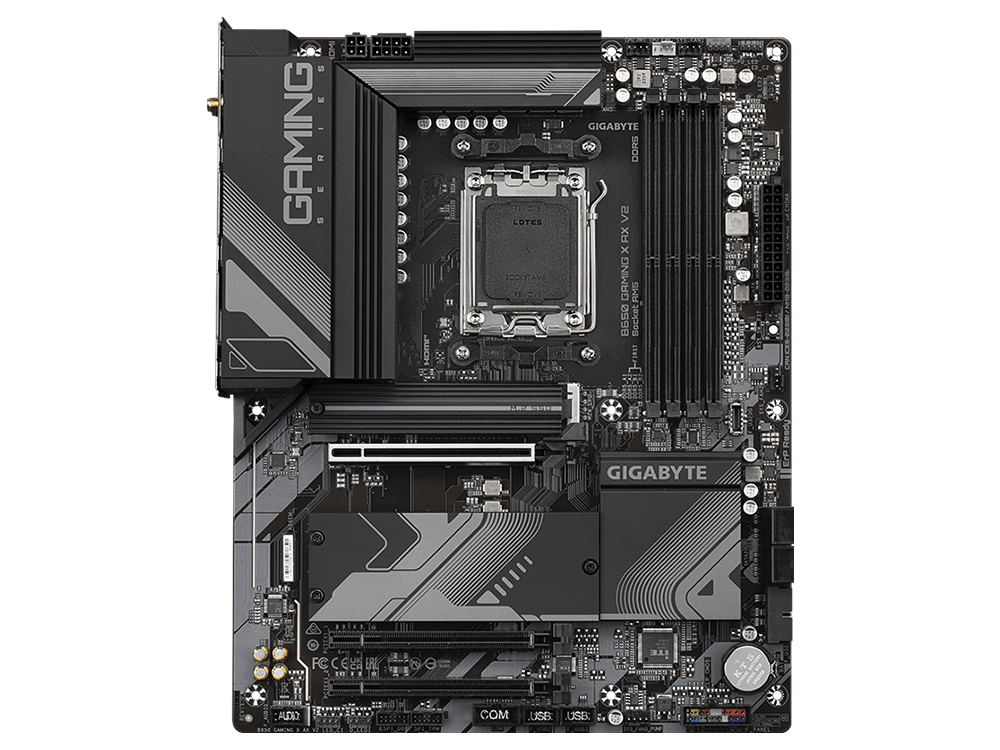

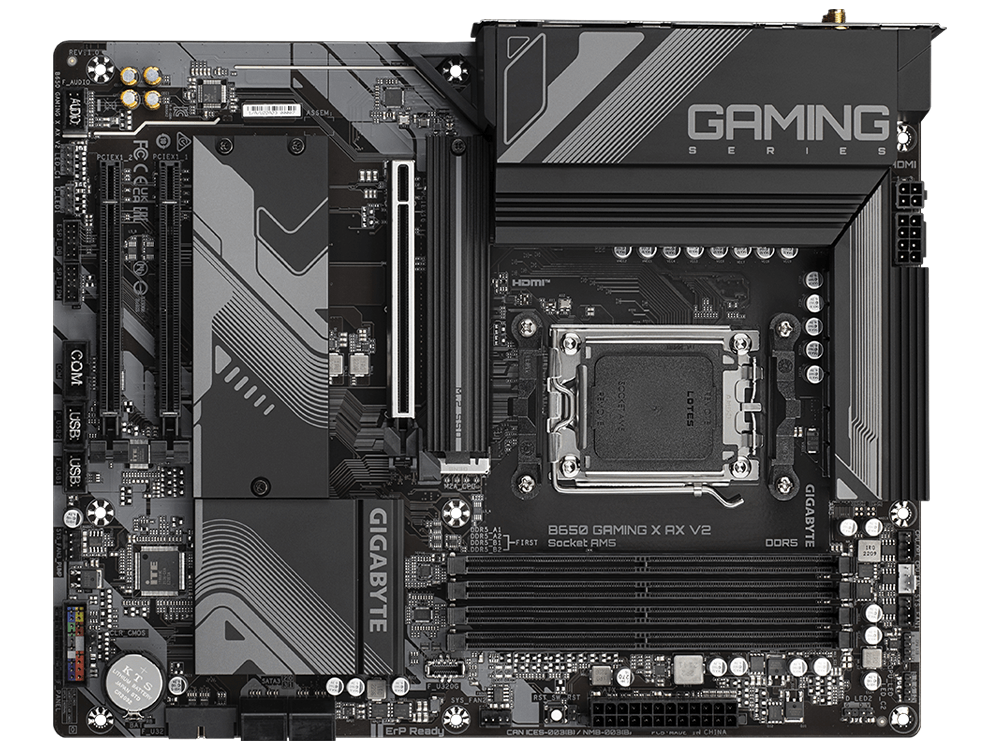

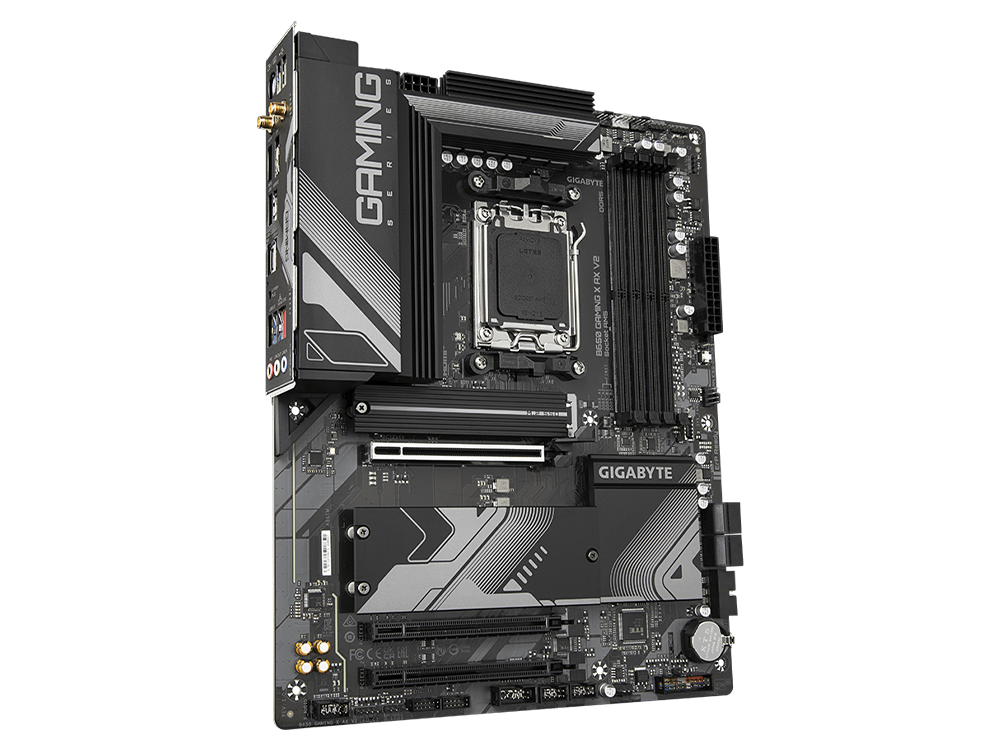

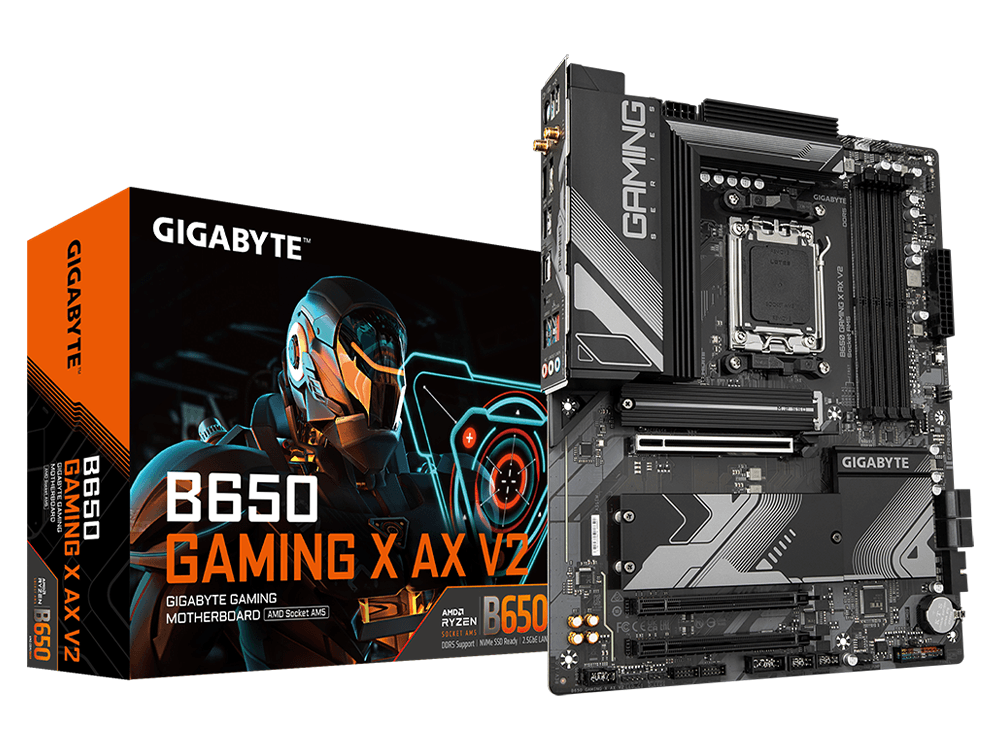

Gigabyte B650 Gaming X AX V2 AMD AM5 ATX Motherboard

36 months

Specifications:

Model Number	B650-GAMING-X-AX-V2
CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD B650
Memory	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1R x 8 / 2R x 8 / 1R x 16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics Support: 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless Communication Module	Realtek® Wi-Fi 6E RTL8852CE (PCB Rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160 MHz wireless standard AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB Rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160 MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x 16 Slot (PCIE x 16), Integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x 16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 4 mode * The PCIE x 16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIE x 16 slot. Chipset: 2 x PCI Express x 16 slots, supporting PCIe 3.0 and running at x1 (PCIE x 1_1/2)
Storage Interface	1 x M.2 Connector (M2B_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 25110 / 2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x 4 / x 2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 4 / x 2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110 / 2580 PCIe 4.0 x 4 / x 2 SSDs 4 x SATA 6 Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen 1 port on the back panel CPU + USB 2.0 Hub: 3 x USB 2.0 / 1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 x 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0 / 1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan / water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip / RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

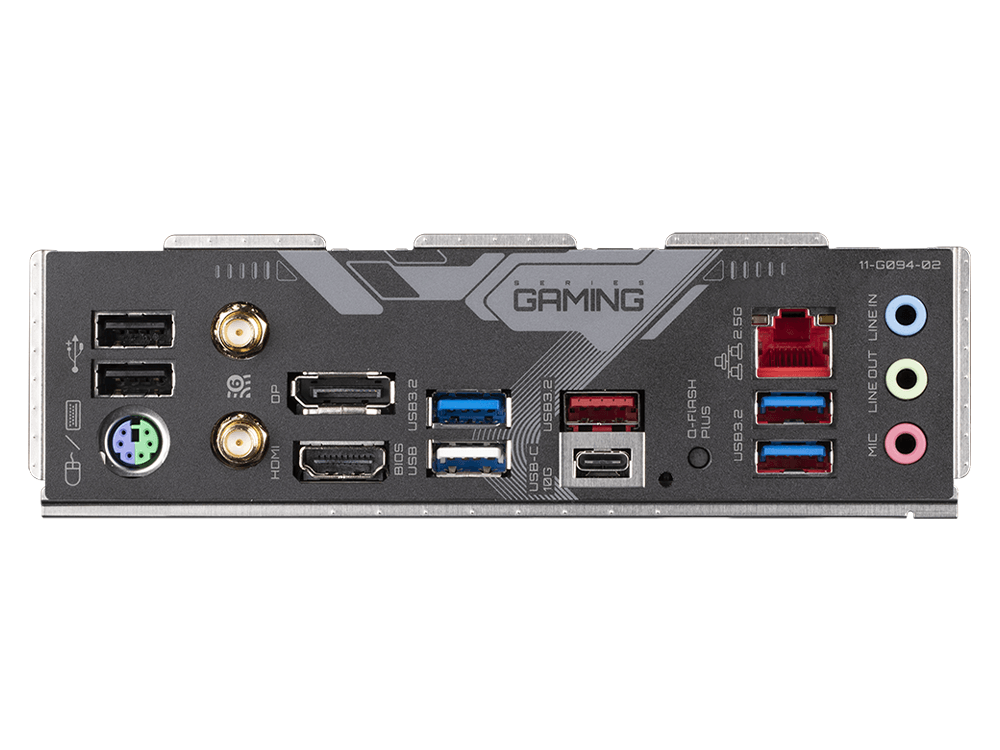

Back Panel Connectors	2 x SMA antenna connectors (2T2R) 1 x Q-Flash Plus button 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0 / 1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5 cm x 24.4 cm
