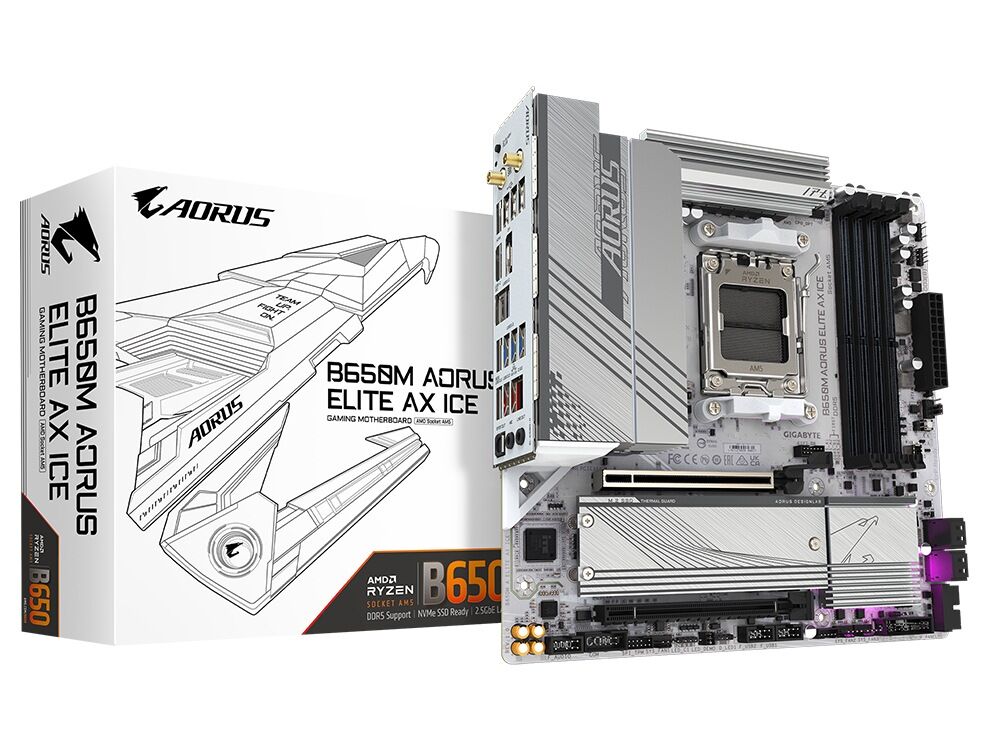

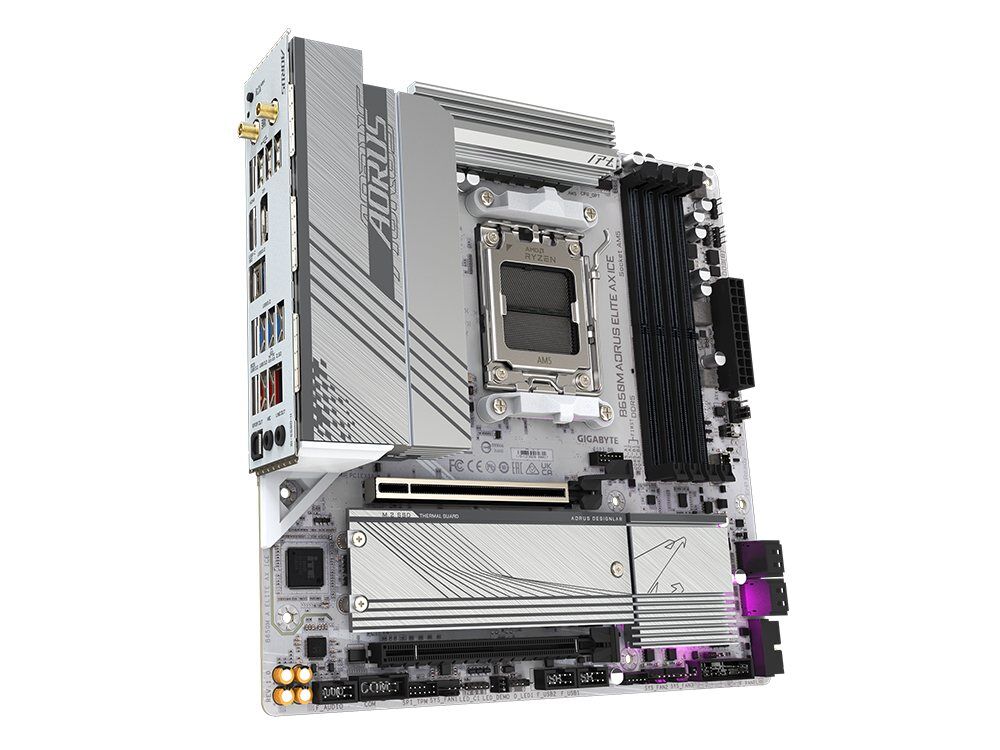

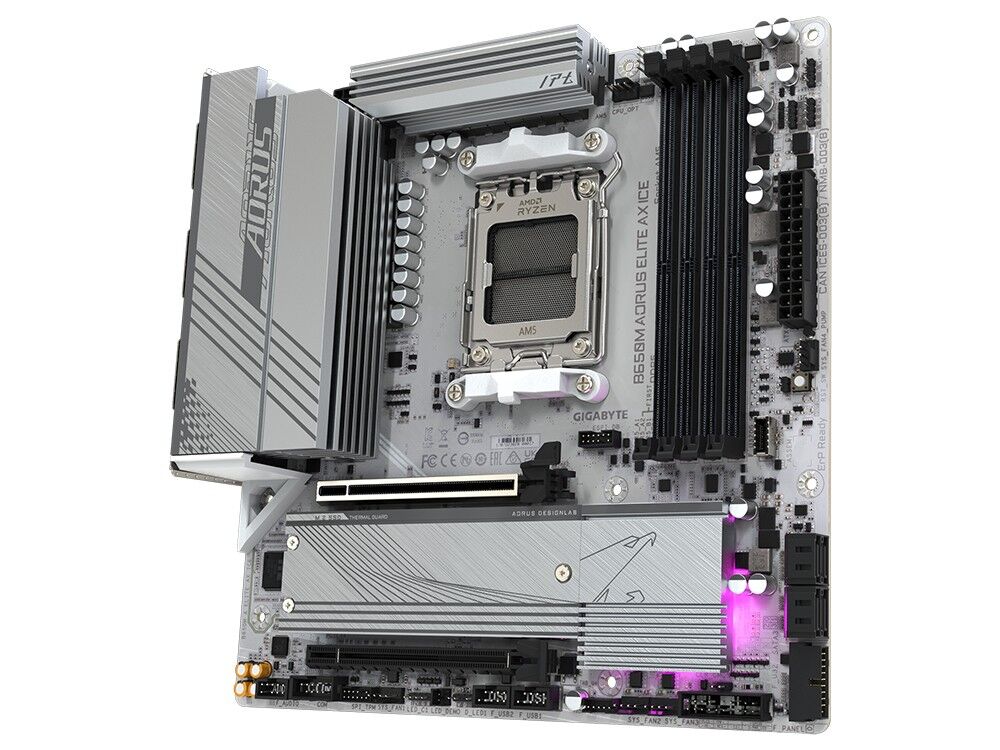

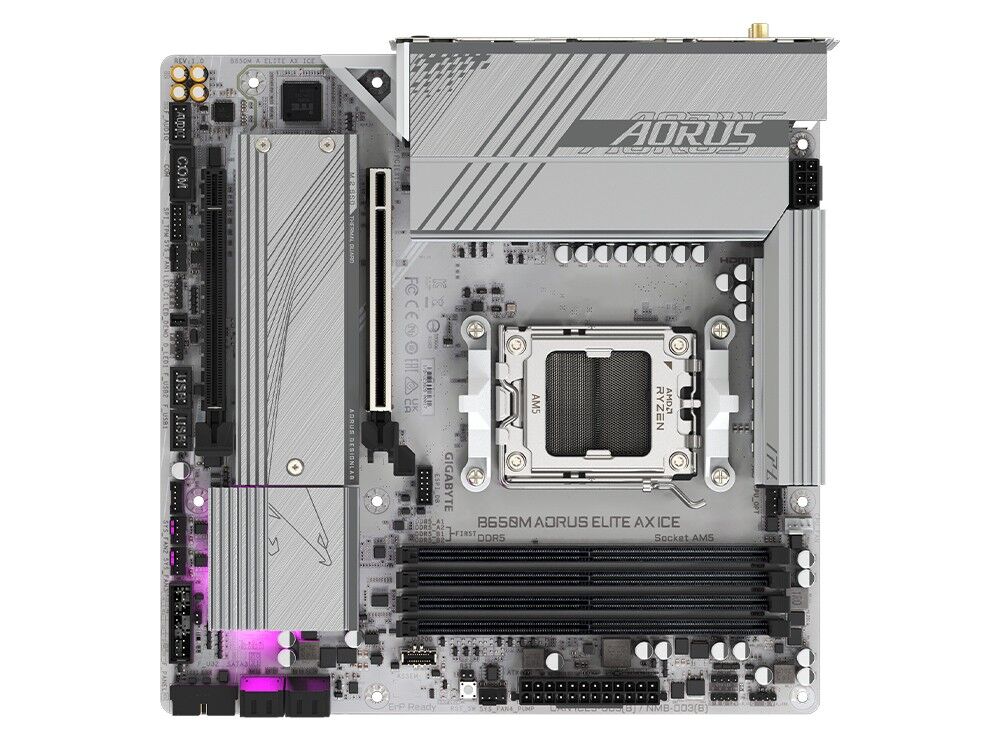

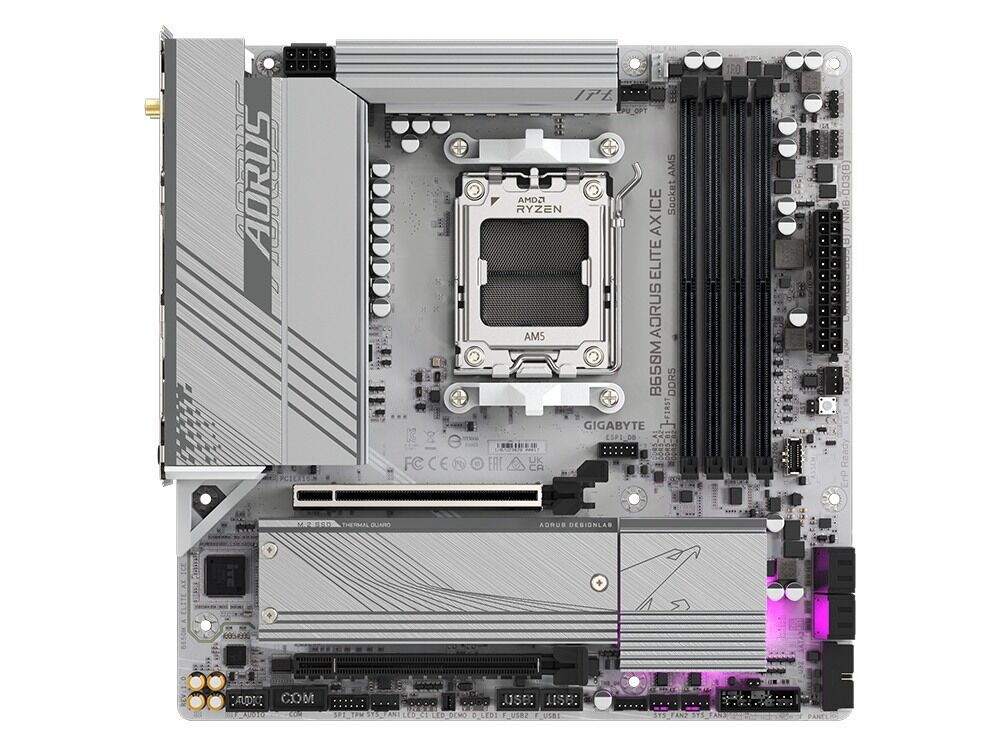

Gigabyte B650M Aorus Elite AX Ice AM5 Motherboard

36 months

Specifications:

Model Number	B650M-AORUS-ELITE-AX-ICE
CPU	AMD Socket AM5, Support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors * Please refer to "CPU Support List" for more information.
Chipset	AMD B650
Memory	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1R x 8 / 2R x 8 / 1R x 16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics Support: 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless Communication Module	Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: 1 x PCI Express x 16 slot, supporting PCIe 4.0 and running at x 16 (PCIE x 16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE x 16 slot. Chipset: 1 x PCI Express x 16 slot, supporting PCIe 4.0 and running at x 4 (PCIE x 4)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 25110 / 2280 PCIe 5.0 (Note) x 4 / x 2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110 / 2280 PCIe 4.0 x 4 / x 2 SSD support) (M2B_CPU) Chipset: 4 x SATA 6 Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0 / 1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 x 2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0 / 1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 1 x CPU fan header 1 x CPU fan / water cooling pump header 3 x system fan headers 1 x system fan / water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip / RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 x 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0 / 1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

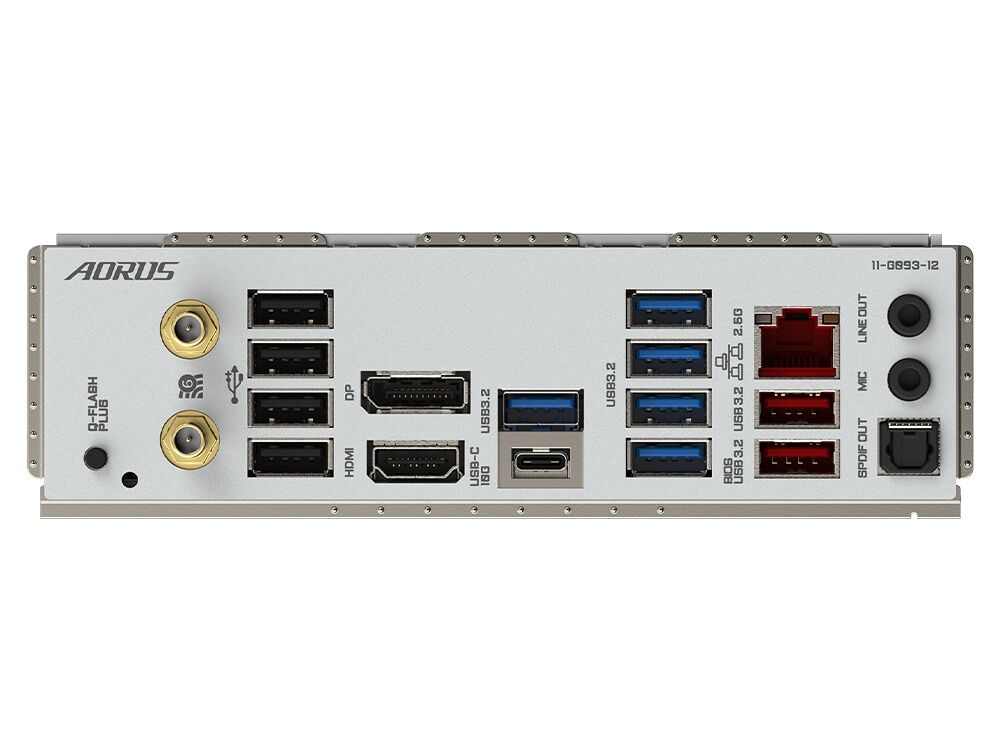

Back Panel Connectors	1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0 / 1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4 cm x 24.4 cm
