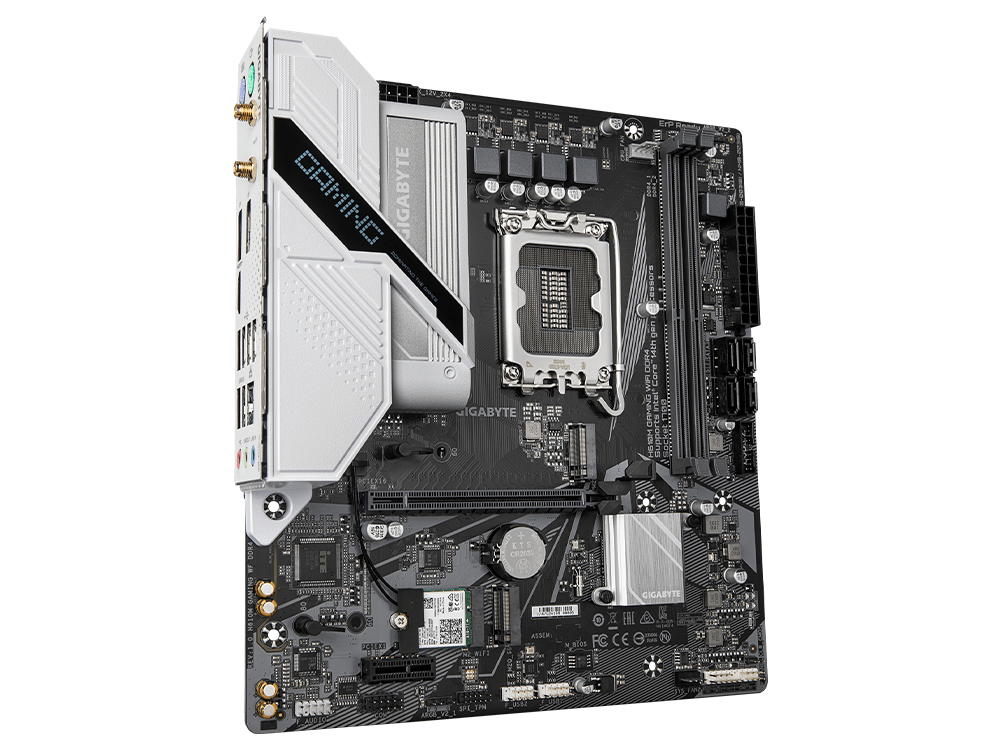

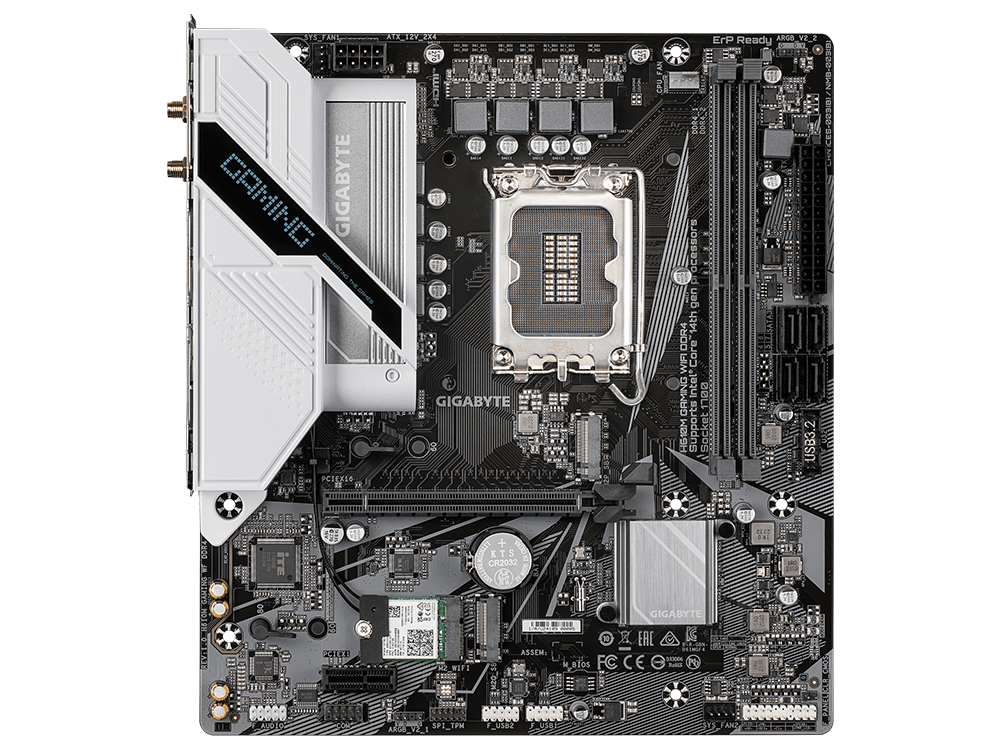

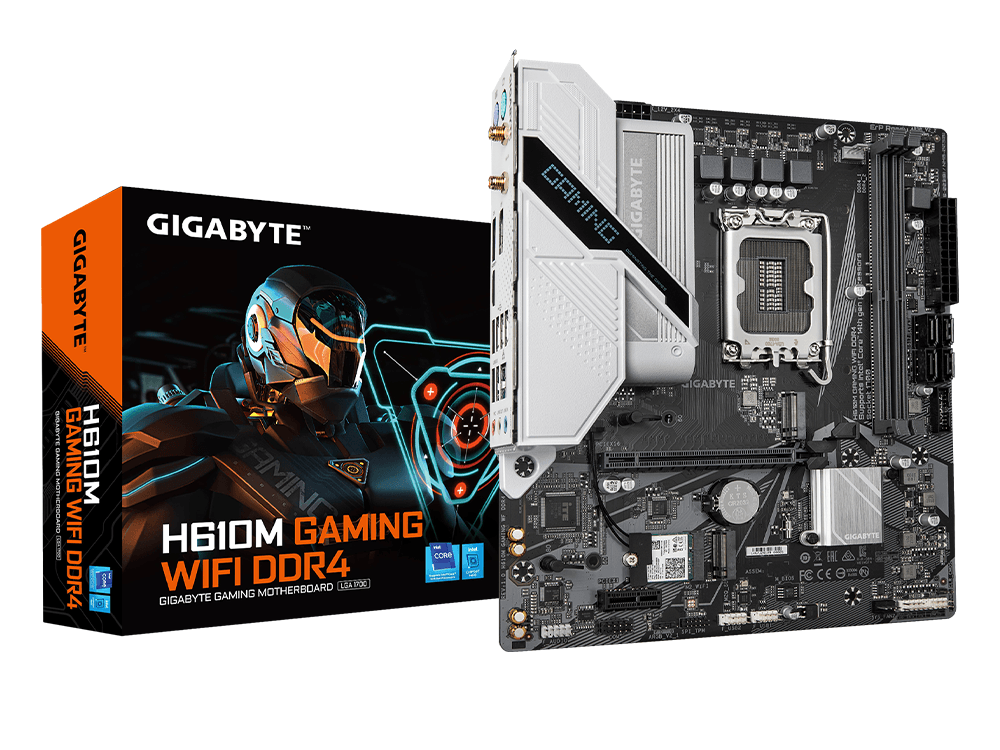

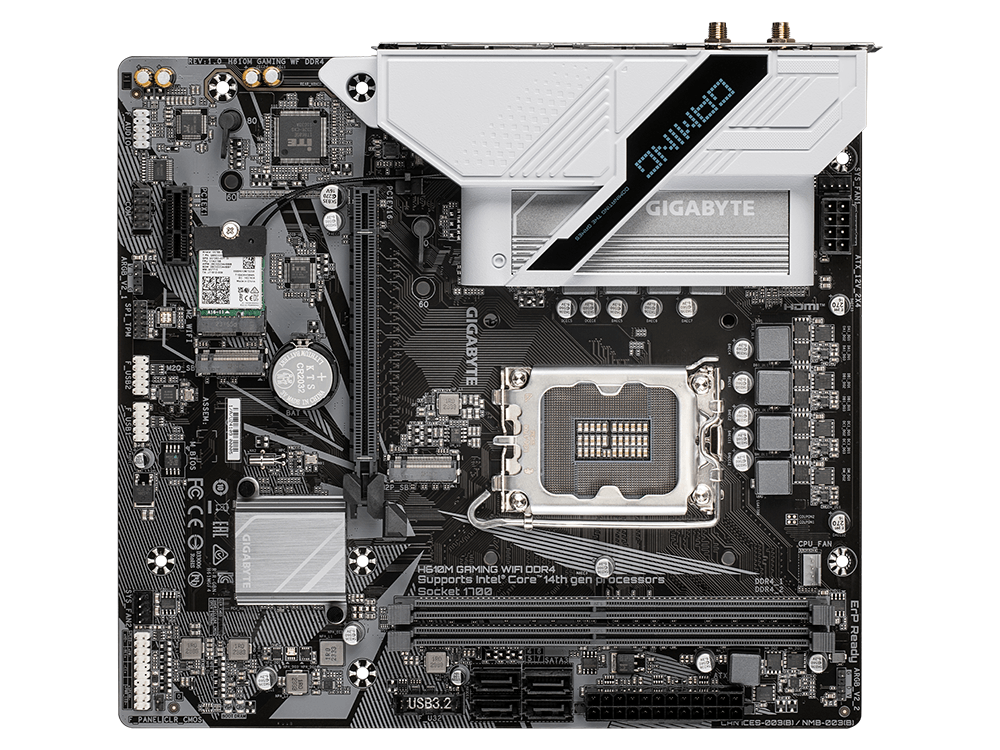

Gigabyte H610M Gaming WIFI DDR4 LGA1700 mATX Motherboard

36 months

Specifications:

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,
	Pentium® Gold and Celeron® Processors
	(Go to GIGABYTE's website for the latest CPU support list.)
	L3 cache varies with CPU
Chipset	Intel® H610 Express Chipset
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
	of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
	non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data
	rate (speed), and number of DRAM modules, please refer to "Memory Support
	List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	- 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support for native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
	Audio
	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure
	7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Intel® Wireless- AC 9560 (PCB rev. 1.0)
	- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
	- BLUETOOTH 5.1
	- Support 11ac 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
	Expansion Slots
	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
	support) (M2P_SB)
	- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support)
	(M2Q_SB)
	- 4 x SATA 6Gb/s connectors
USB	Chipset:
	- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through
	the internal USB header)
	- 2 x USB 2.0/1.1 ports available through the internal USB header
	Chipset+2 USB 2.0 Hubs:
	- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through
	the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	2 x addressable RGB Gen2 LED strip headers
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
	2.0/GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x Clear CMOS jumper

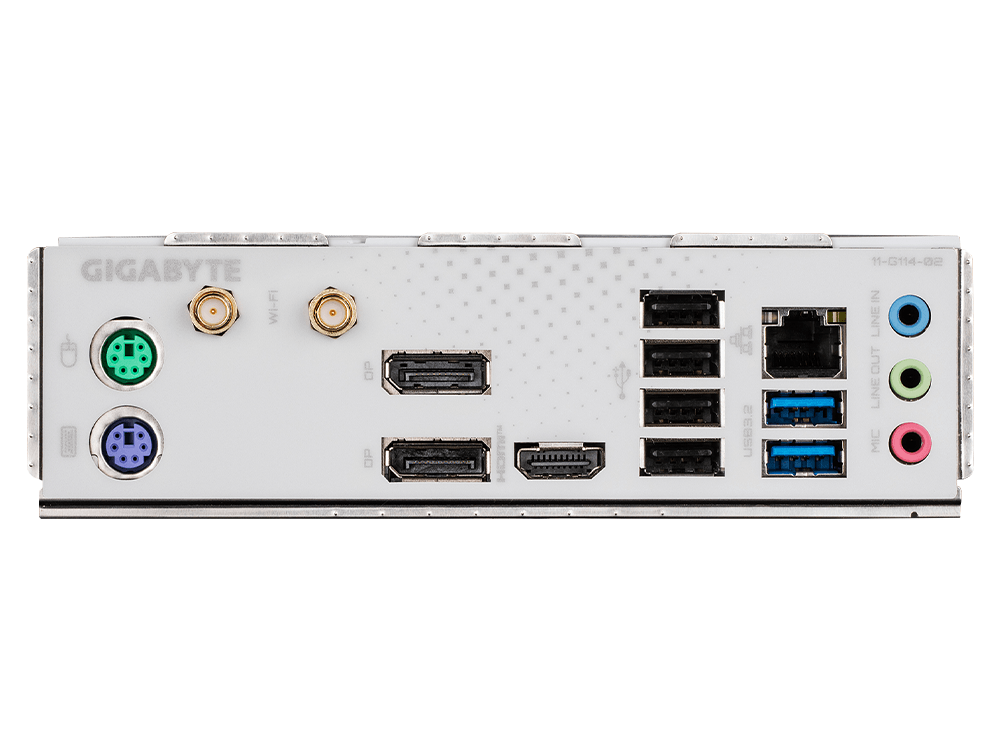

Back Panel Connectors	1 x PS/2 keyboard port
	1 x PS/2 mouse port
	2 x SMA antenna connectors (2T2R)
	2 x DisplayPorts
	1 x HDMI port
	2 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the fan
	you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported
	functions of each application may also vary depending on motherboard
	specifications.
	Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 22.0cm

SKU	MBG-H610M-GAMWFDDR4
Brand	Gigabyte
Unit Of Measure	ea
