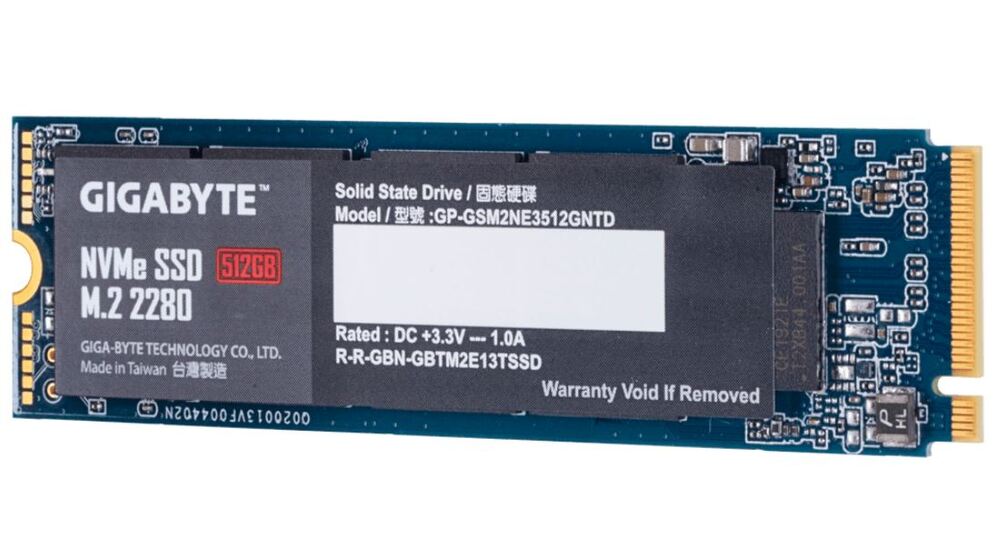

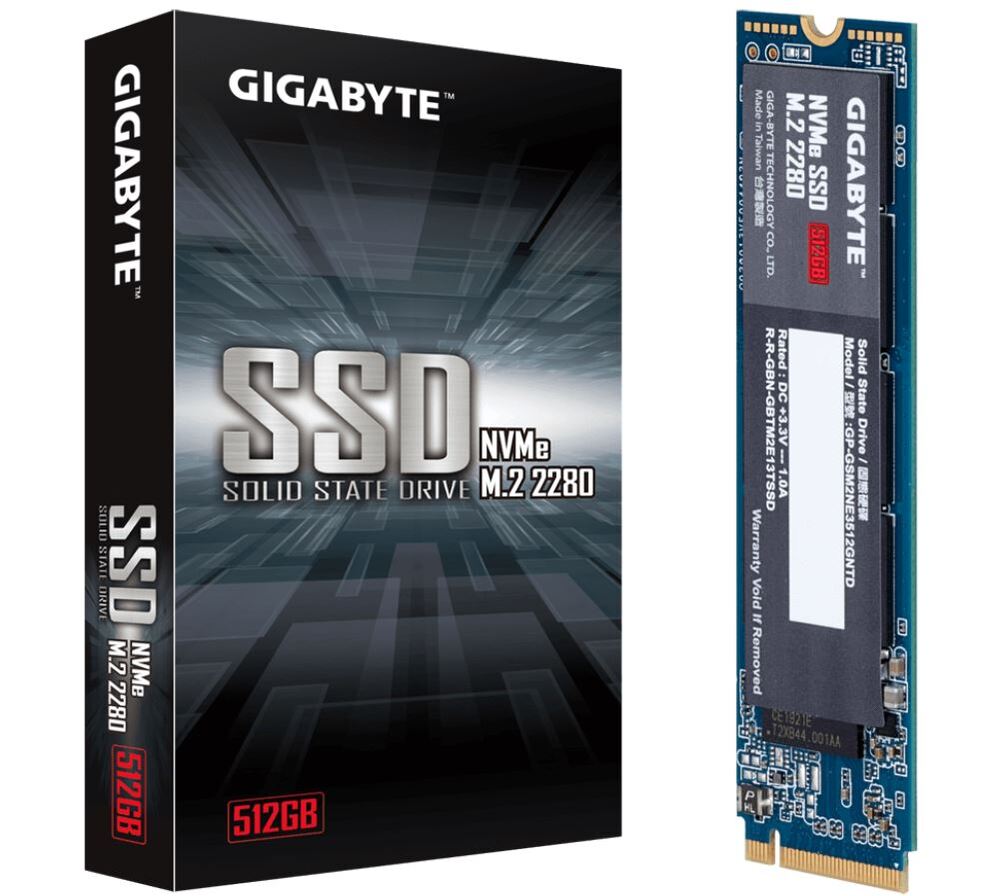

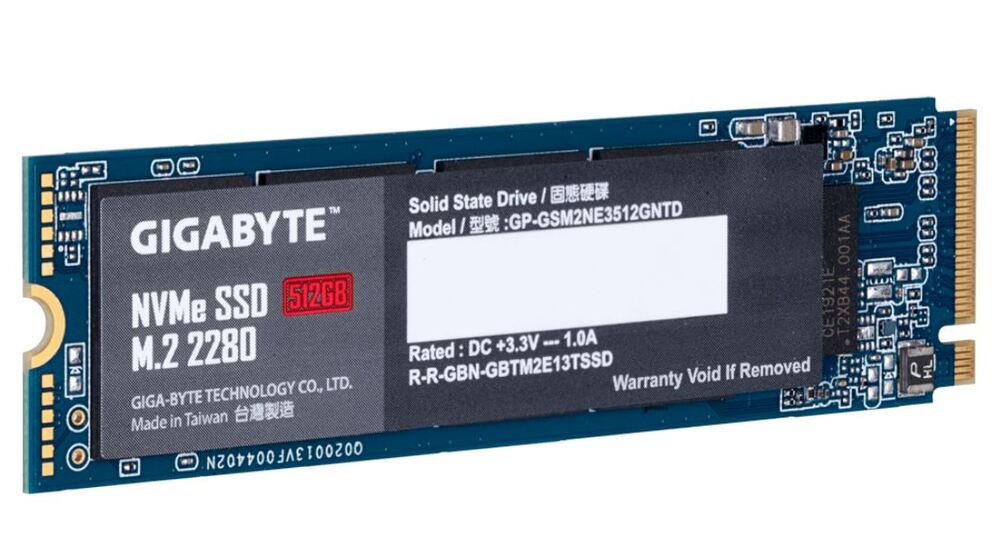

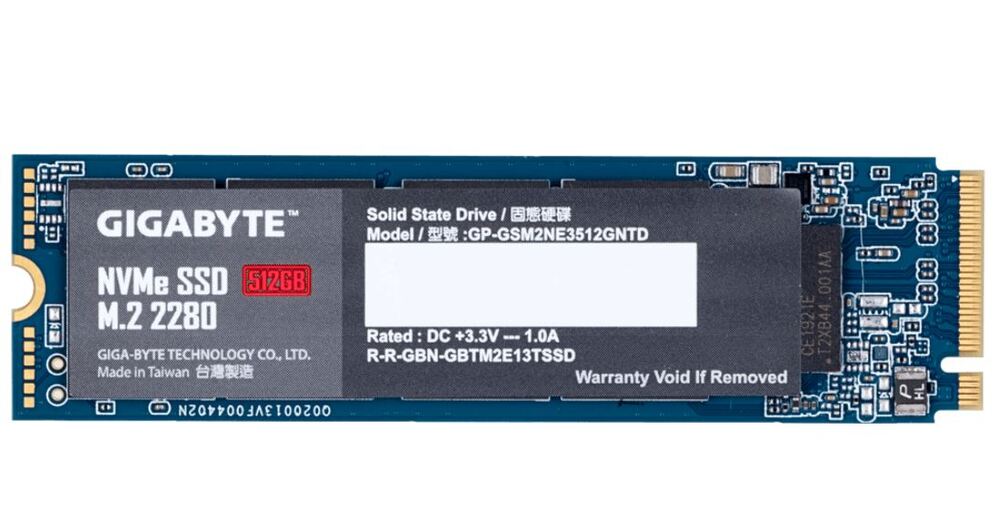

Gigabyte 512GB m.2 PCIe 3.0x4 NVMe SSD Read/Write: 1700Mb/s & 1550MB/s 5 years warranty

60 months

SPECIFICATIONS

Interface

PCI-Express 3.0 x4, NVMe 1.3

Form Factor

M.2 2280

Total Capacity

512gb

Warranty

Limited 5-year or 800TBW

NAND

NAND Flash

External DDR Cache

N/A

Sequential Read speed

Up to 1700 MB/s

Sequential Write speed

Up to 1550 MB/s

Random Read IOPS

Up to 270K

Random Write IOPS

Up to 340K

Dimension

80 x 22 x 2.3 mm

Mean time between failure (MTBF)

1.5M hours

Power Consumption (Active)

Avg. read : 3.3W ; Write : 2.8W

Power Consumption (Idle)

1.8mw

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Note

* Test system configuration: configuration may vary by   models, we will choose the latest platform for verification.

* Performance may vary based on SSD's firmware version   and system hardware & configuration. Sequential performance measurements   based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.

* Speeds based on internal testing. Actual performance   may vary.

* TBW (Terabyte Written):Terabytes Written" is the   total amount of data that can be written into an SSD before it is likely to   fail.

* 1GB = 1 billion bytes. Actual useable capacity may   vary.

* 5-years or 800TBW, whichever comes first.

SKU M.2-GB-GSM2NE3512GNTD
Brand Gigabyte
Unit Of Measure ea
