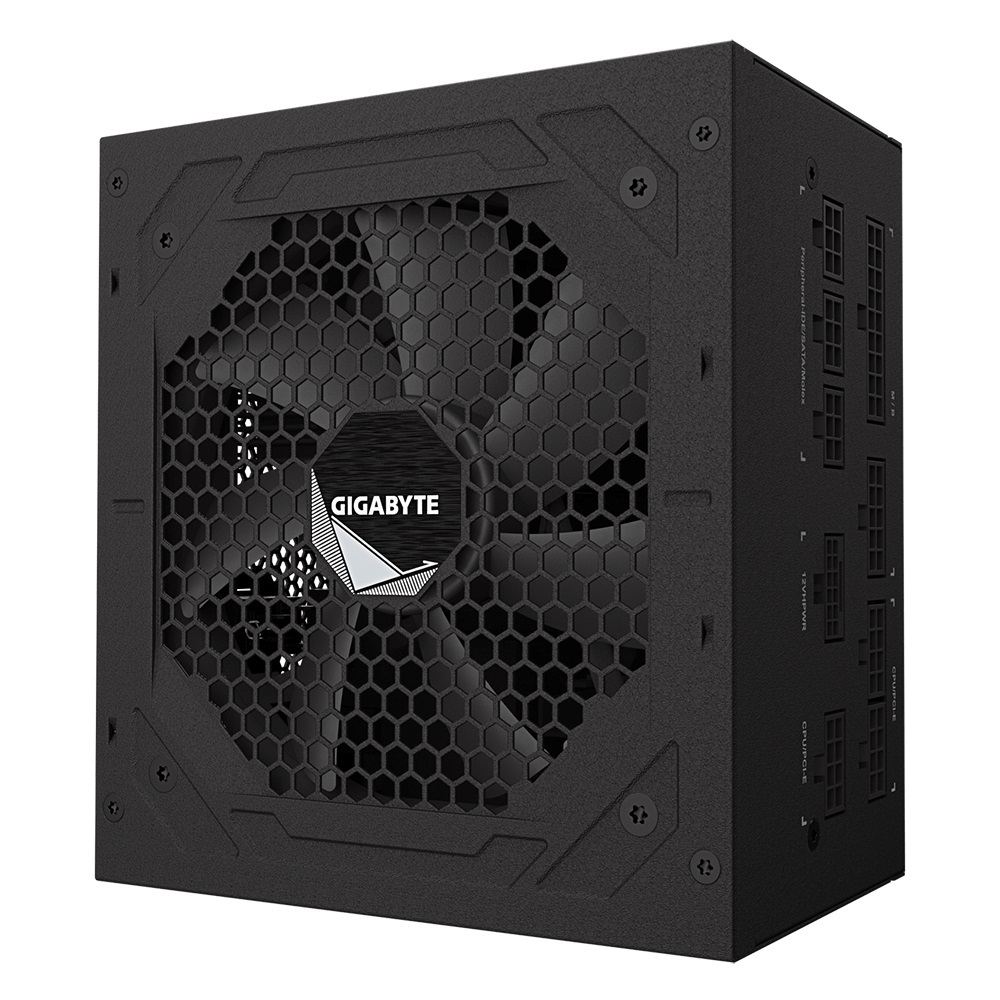

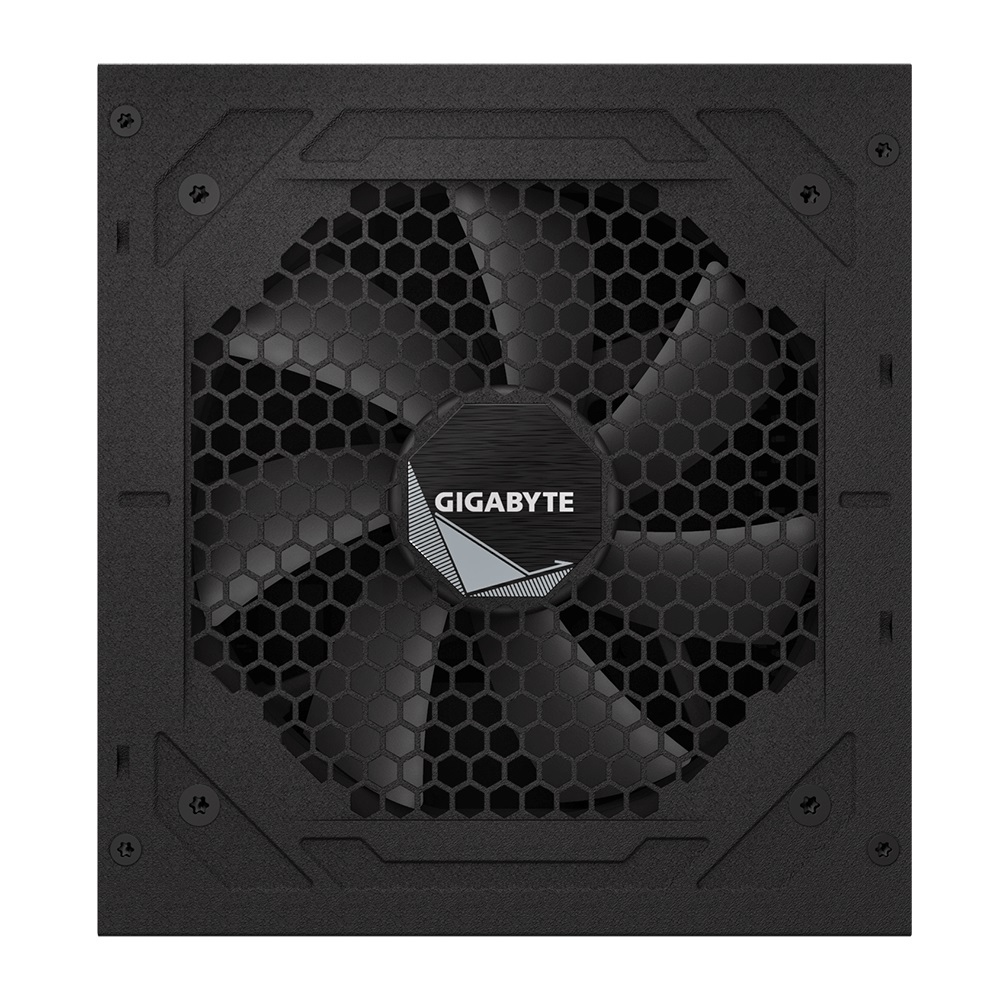

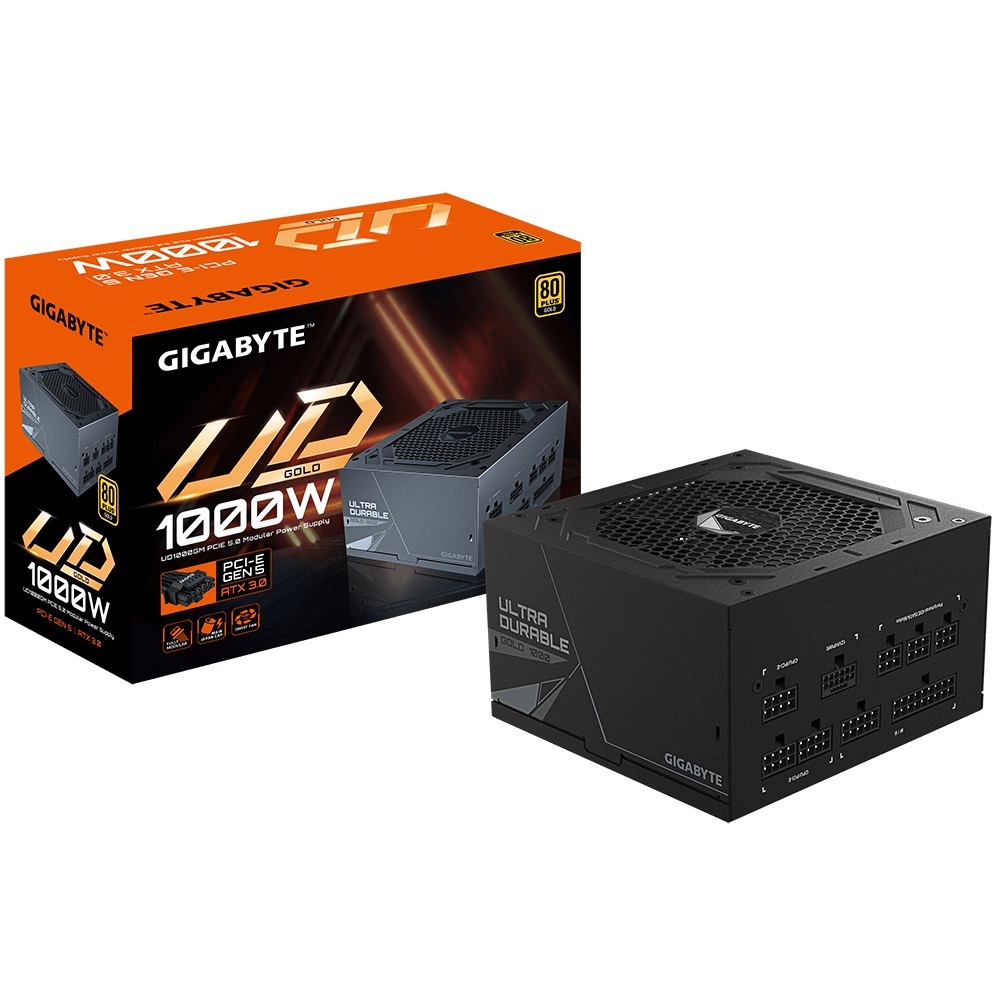

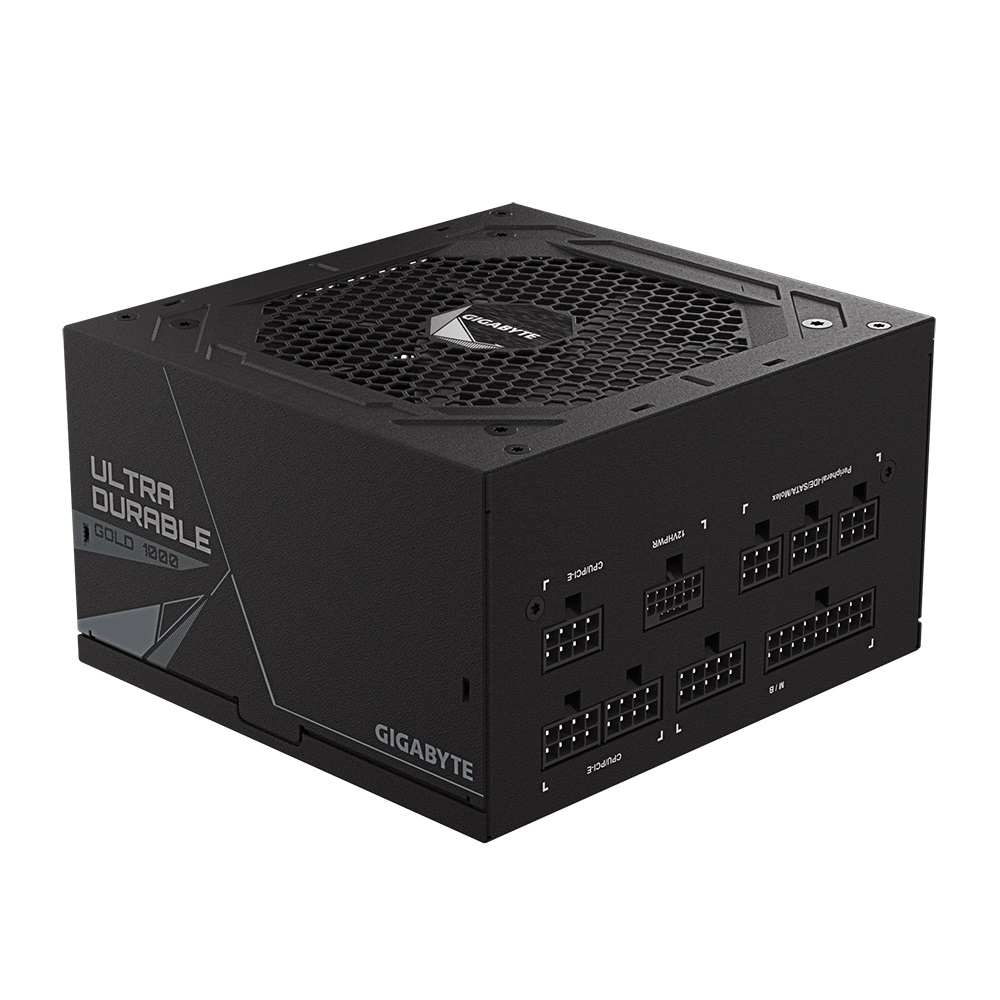

Gigabyte UD1000GM PG5 2.0 1000W ATX Power Supply 80+ Gold Overview

120 months

 Specifications

Model

GP-UD1000GM PG5

Type

Intel Form Factor ATX 12V v3.0

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-6.5A

Input Frequency

60-50 Hz

Output Capacity

1000W

Dimension

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing(HYB)fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

  CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
  PCI-e 16 Pin x 1: 700mm*1
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 :
  600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
SKU PSG-UD1000GMPG5-2.0
Brand Gigabyte
Unit Of Measure ea
Type StockedItem
