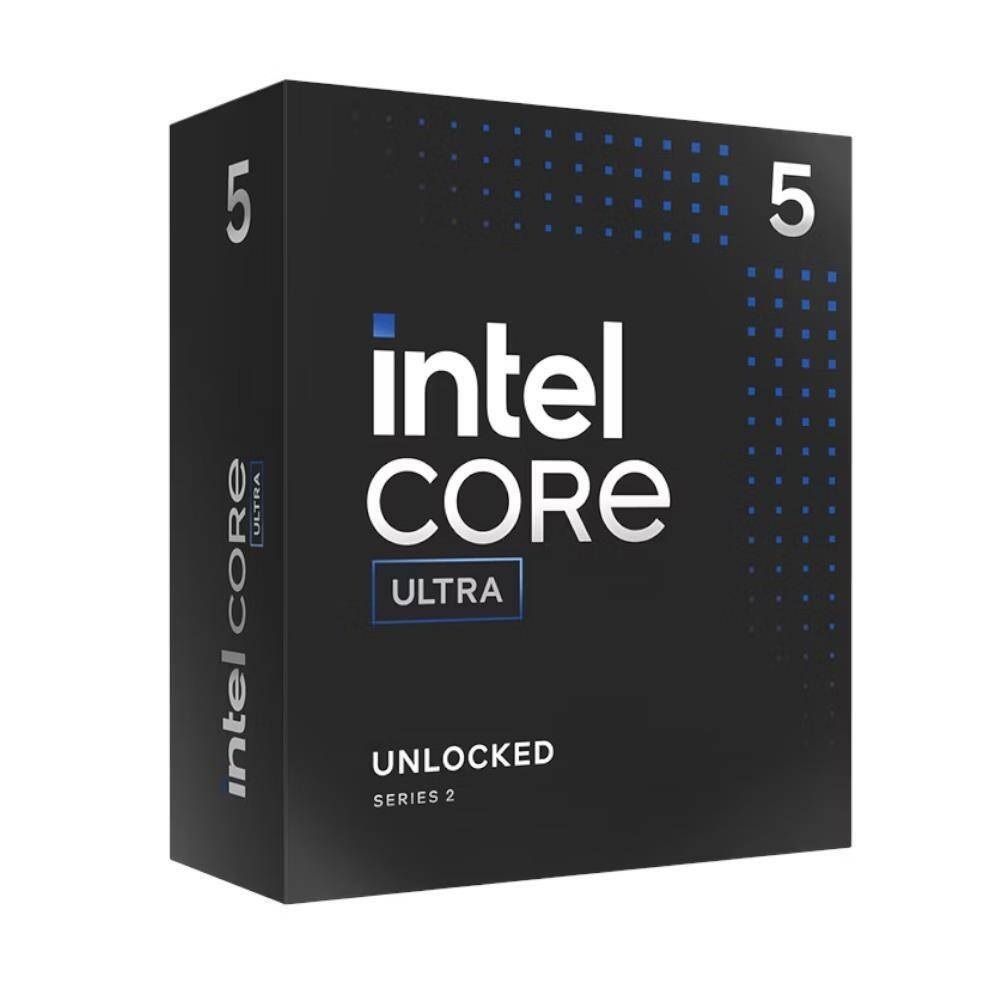

Intel Core Ultra 5 245K 15th Gen LGA1851 CPU  Overview

36 months

Specifications

Performance Cores

P-Cores 6
Base Frequency (P) 4.2 GHz
Turbo Boost Frequency (P) 5.2 GHz



Efficient Cores

E-Cores 8
Base Frequency (E) 3.6 GHz
Turbo Boost Frequency (E) 4.6 GHz



Total

Total Cores 14
Total Threads 14
L2 Cache 26 MB
L3 Cache 24 MB Intel® Smart Cache
Processor Base Power 125 W
Maximum Turbo Power 159 W



Package

Sockets Supported LGA-1851
Thermal Solution Specification PCG 2020A
Max Operating Temperature 105°C



Integrated GPU

Integrated Graphics Intel® Graphics
GPU Base Clock 300 MHz
GPU Boost Clock 1.9 GHz
Xe-cores 4
Max Resolution (HDMI) 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP) 8K @ 60Hz
Max Resolution (eDP) 4K @ 60Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Intel® Quick Sync Video Yes
# of Displays Supported 4
Device ID 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes



Memory Support

Memory types Up to DDR5 6400 MT/s
Max Memory Capacity 192 GB
Max. Memory Channels 2
Max. Memory Speed 6400 MHz
ECC Support Yes



NPU Specifications

NPU Name Intel® AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN
SKU CPUU5245K
Brand Intel
Unit Of Measure ea
