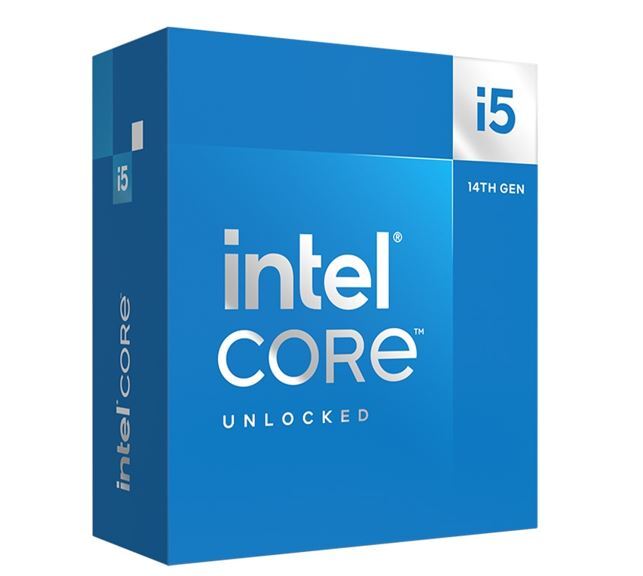

Intel i5 14600K 4GHz 14-Cores 20-Threads 24MB 125W 14th Gen LGA1700 CPU

36 months

Manufacturer Specifications

	Intel® Core™ i5 processor 14600K (24M Cache- up to 5.30 GHz)

Essentials
Product Collection	Intel® Core™ i5 Processors (14th gen)
Code Name	Products formerly RAPTOR LAKE
Vertical Segment	Desktop
Processor Number	i5-14600K
Lithography	Intel 7
Use Conditions	PC/Client/Tablet \| Workstation

CPU Specifications
Total Cores	14
# of Performance-cores	6
# of Efficient-cores	8
Total Threads	20
Max Turbo Frequency	5.3 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Efficient-core Max Turbo Frequency	4 GHz
Performance-core Base Frequency	3.5 GHz
Efficient-core Base Frequency	2.6 GHz
Cache	24 MB Intel® Smart Cache
Total L2 Cache	20 MB
Processor Base Power	125 W
Maximum Turbo Power	181 W

Supplemental Information
Marketing Status	Launched
Launch Date	Q4'23
Embedded Options Available	No

Memory Specifications
Max Memory Size (dependent on memory type)	192 GB
Memory Types	Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels	2
Max Memory Bandwidth	89.6 GB/s
ECC Memory Supported ‡	Yes

GPU Specifications
Processor Graphics ‡	Intel® UHD Graphics 770
Graphics Base Frequency	300 MHz
Graphics Max Dynamic Frequency	1.55 GHz
Graphics Output	eDP 1.4b \| DP 1.4a \| HDMI 2.1
Execution Units	32
Max Resolution (HDMI)‡	4096 x 2160 @ 60Hz
Max Resolution (DP)‡	7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡	5120 x 3200 @ 120Hz
DirectX* Support	12
OpenGL* Support	4.5
OpenCL* Support	3
Multi-Format Codec Engines	2
Intel® Quick Sync Video	Yes
Intel® Clear Video HD Technology	Yes
# of Displays Supported ‡	4
Device ID	0xA780

Expansion Options
Direct Media Interface (DMI) Revision	4
Max # of DMI Lanes	8
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations ‡	Up to 1x16+4 \| 2x8+4
Max # of PCI Express Lanes	20

Package Specifications
Sockets Supported	FCLGA1700
Max CPU Configuration	1
Thermal Solution Specification	PCG 2020A
TJUNCTION	100°C
Package Size	45.0 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator	3
Intel® Thread Director	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology ‡	2
Intel® Hyper-Threading Technology ‡	Yes
Intel® 64 ‡	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1 \| Intel® SSE4.2 \| Intel® AVX2
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Volume Management Device (VMD)	Yes

Security & Reliability
Intel® Standard Manageability (ISM) ‡	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit ‡	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® VT-x with Extended Page Tables (EPT) ‡	Yes

‡ This feature may not be available on all computing systems. Please check with the system vendor to determine if your system delivers this feature, or reference the system specifications (motherboard, processor, chipset, power supply, HDD, graphics controller, memory, BIOS, drivers, virtual machine monitor-VMM, platform software, and/or operating system) for feature compatibility. Functionality, performance, and other benefits of this feature may vary depending on system configuration.

SKU	CPI5-14600K
Brand	Intel
Unit Of Measure	ea
