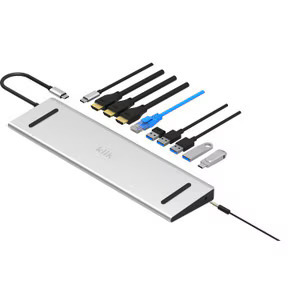

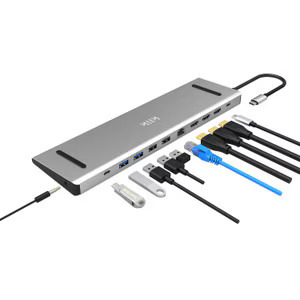

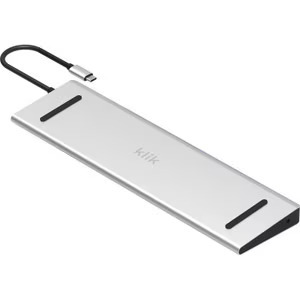

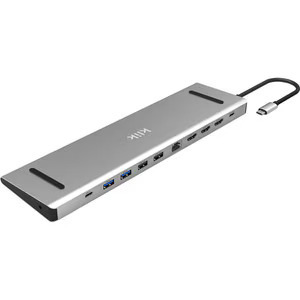

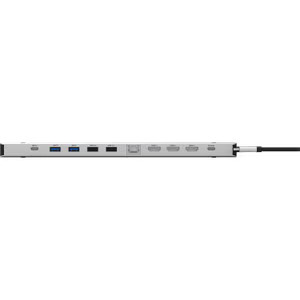

Connect three monitors, a keyboard & mouse, USB storage devices a wired Gigabit network, headphones or speakers and other USB devices all via a single USB-C connection.

Features
• Unique design allows dock to be placed either way around so USB-C input can be on either side
• Run three monitors in extended desktop mode for Windows
• Supports triple monitors at 4K Ultra HD 3840 x 2160 @30Hz*
• Supports dual monitors at 4K Ultra HD 3840 x 2160 @60Hz*

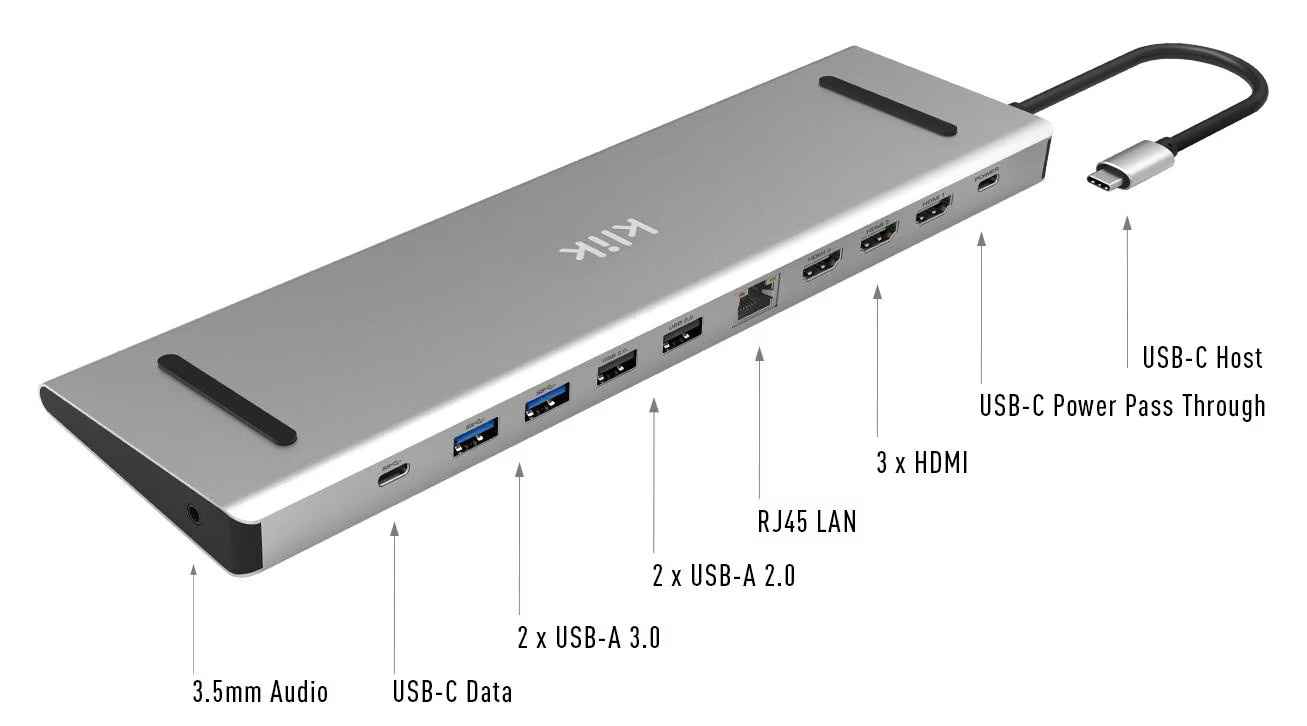

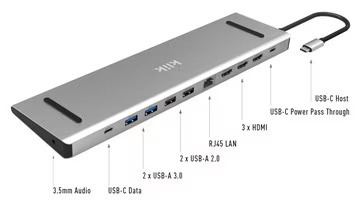

• 3 x HDMI monitor ports
• 2 x USB-A 3.0 data ports (5Gbps)
• 1 x USB-C 3.1 data port (5Gbps)
• 2 x USB-A 2.0 data ports (480Mbps)
• 1 x RJ45 Gigabit Ethernet network port
• 1 x 3.5mm audio port for headphones or speakers
• 1 x USB-C female port for up to 100W of power pass through
• 1 x attached 20cm USB-C Male Host Cable


* Computer’s USB-C port must support DP1.4 with DSC

Note: MacBooks & Chromebooks will only support single monitor

2 years

Specifications

Windows Monitor SupportYes

Mac/Chrome Monitor SupportSingle Display Only

Max Single Resolution4K (3840 x 2160) @60Hz

Max Dual Resolution2 x 4K (3840 x 2160) @60Hz

Max Triple Resolution3 x 4K (3840 x 2160) @30Hz

Host Port ConnectionUSB-C

Expansion Ports3 x HDMI, 4 x USB-A, 1 x USB-C, 1 x Gigabit LAN, 1 x 3.5mm Audio

USB Fast Charge Ports1

Product Dimensions278 x 78 x 17mm

Product Weight284g

In The Box1 x KCMPH3SAD, 1 x User Manual

OS CompatibilityWindows (MacOS & Chrome OS support single display only)

Host Display USB-C RequirementsDisplayPort Alternate Mode (DP Alt-Mode)

SKU KCMPH3SAD
Brand klik
Unit Of Measure ea
