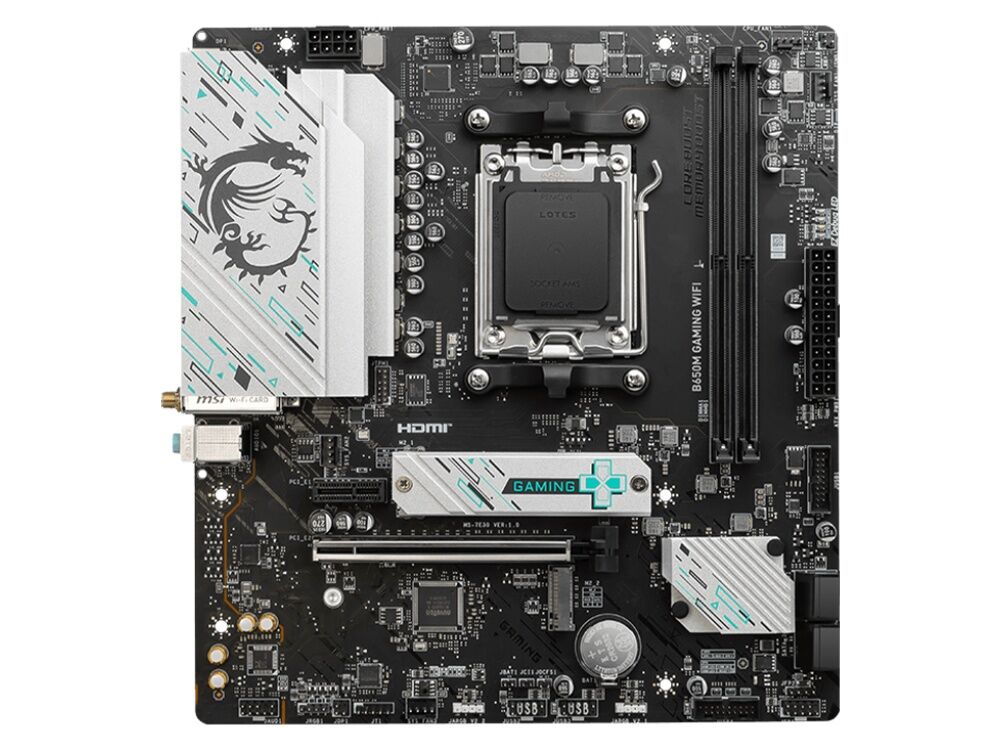

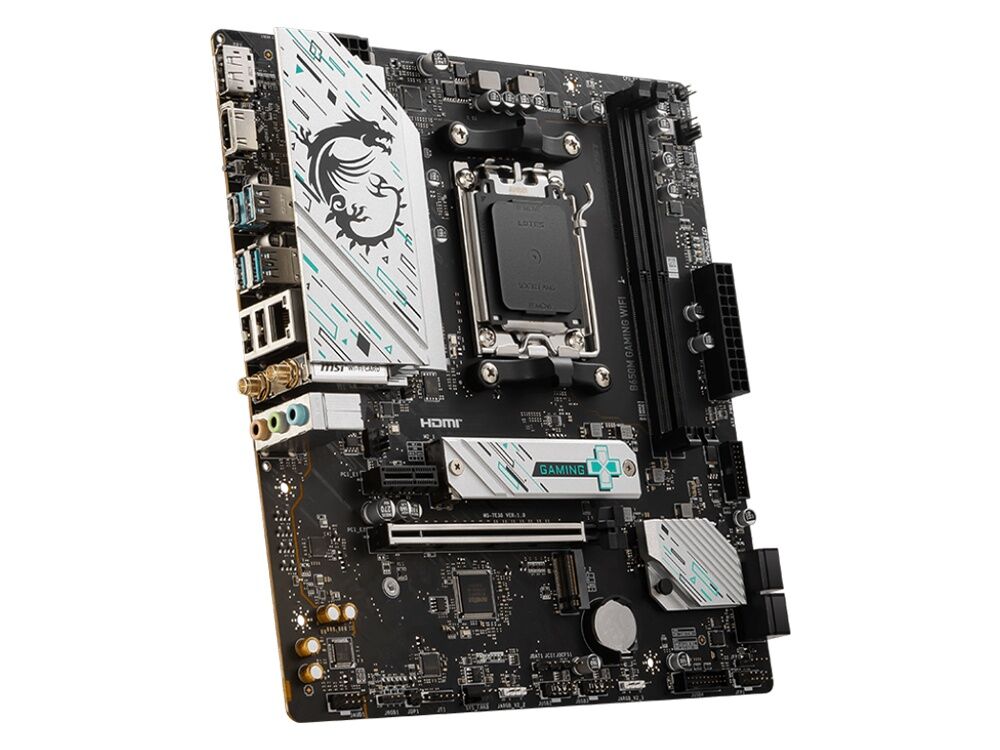

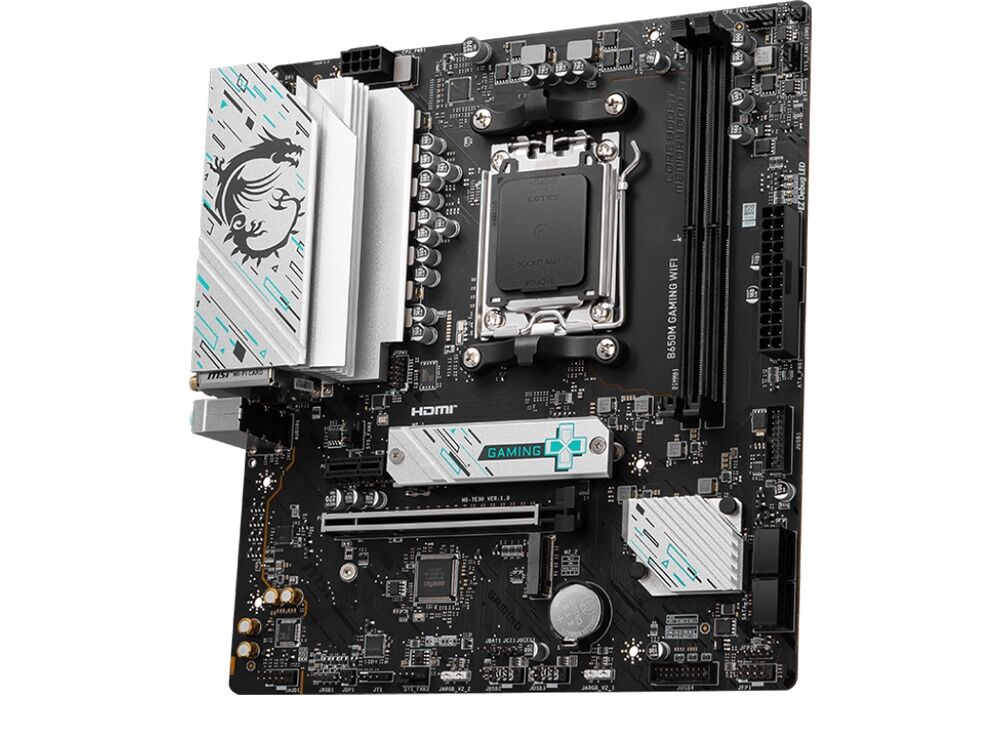

MSI B650M GAMING WIFI mATX AM5 Motherboard Overview

36 months

Specifications


Model Number B650M-GAMING-WIFI
Chipset AMD B650
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket AM5
Memory 2 x DDR5, Maximum Memory Capacity 128 GB
Memory Support DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
Max. Overclocking Frequency:
1DPC 1R Max speed up to 7800+ MHz
1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Onboard Graphics 1 x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60 Hz*
1 x DisplayPort
Support DP 1.4, maximum resolution of 4K 60 Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1 x PCI-E x 16 slot
Supports x 16 / x 1
Supports x 16 (For Ryzen™ 9000 and 7000 Series processors)
Supports x 8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
Supports x 4 (For Ryzen™ 5 8500G processor)
1 x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x 1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x 16 (From CPU)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 2 x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x 4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x 4 , supports 2280 devices
4 x SATA 6G
The M2_2 slot will be unavailable when using Ryzen™ 5 8500G processor
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB 2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
3 x USB 5 Gbps Type A (Rear)
1 x USB 5 Gbps Type C (Rear)
4 x USB 5 Gbps Type A (Front)
LAN Realtek® RTL8125BG 2.5 Gbps LAN
Internal I/O 1 x Power Connector (ATX_PWR)
1 x Power Connector (CPU_PWR)
1 x CPU Fan
3 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5 Gbps Type A ports
Wireless LAN & Bluetooth AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX / RX
Supports 20 MHz, 40 MHz, 80 MHz, 160 MHz bandwidth in 2.4 GHz / 5 GHz or 6 GHz* bands
Supports 802.11 a / b / g / n / ac / ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6 GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED Feature 4 x EZ Debug LED

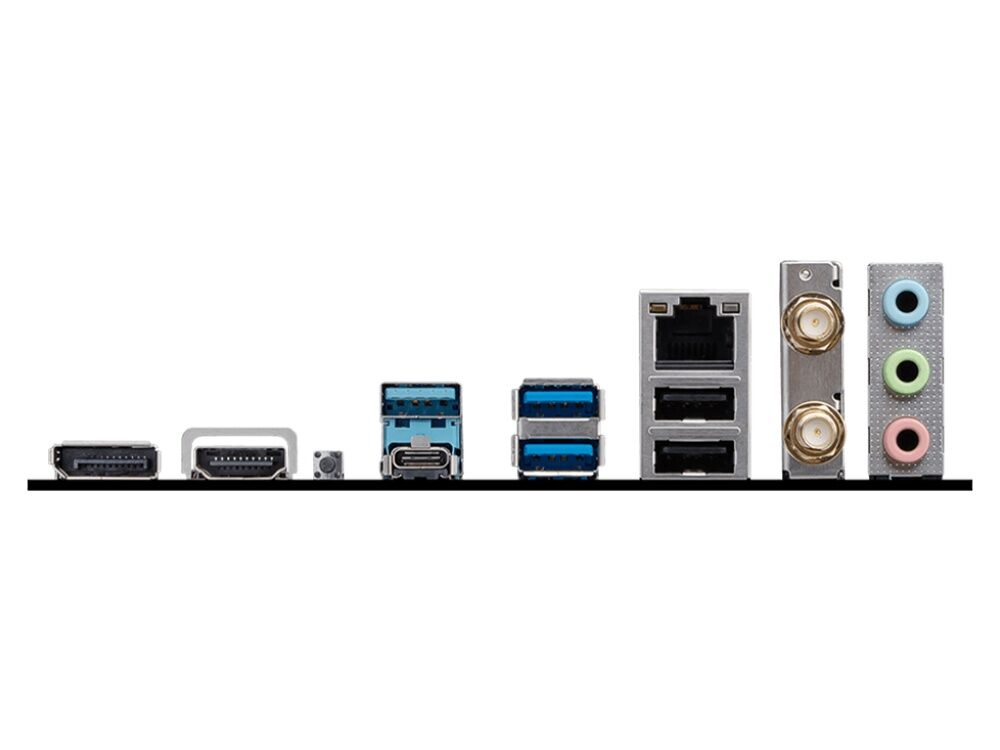

Back Panel Ports DisplayPort
HDMI™
USB 3.2 Gen1 5 Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
USB 3.2 Gen1 5 Gbps (Type-C)
USB 3.2 Gen1 5 Gbps (Type-A)
USB 2.0
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit

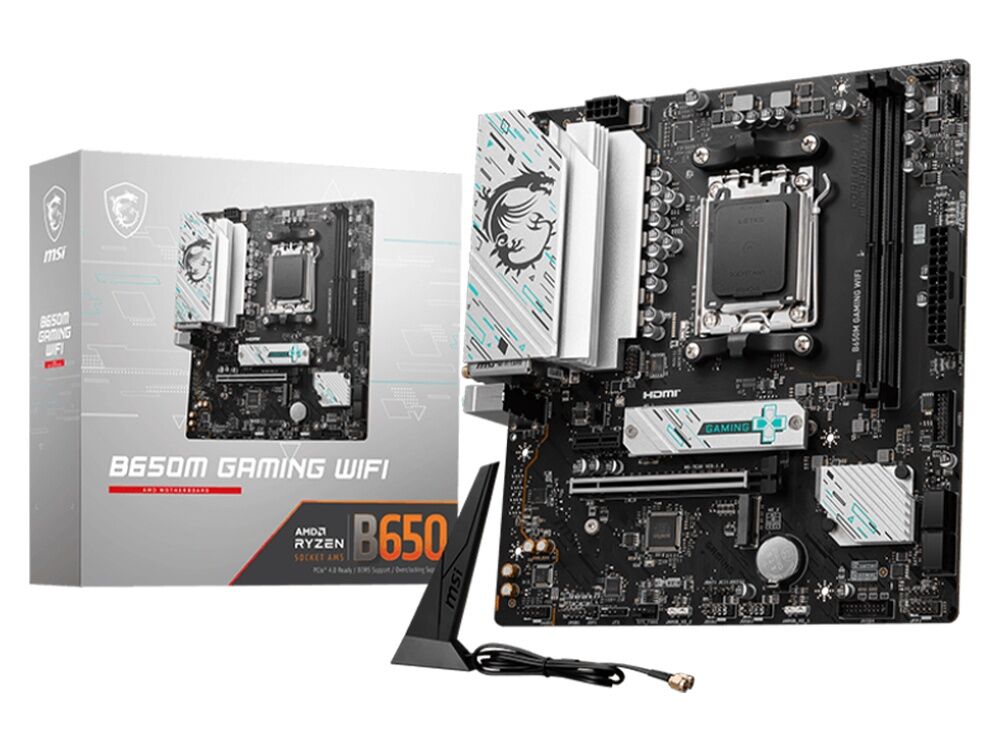

Box Content Quick Installation Guide
European Union Regulatory Notice
1 x SATA Cable
1 x M.2 Clip
IO Shield
Wi-Fi Antenna
PCB Dimension mATX
226 mm x 243.84 mm
Manufacturer Website Address        http://au.msi.com
SKU MBMB650M-G-WIFI
Brand MSI
Unit Of Measure ea
