MSI B840 GAMING PLUS WIFI AM5 ATX Motherboard Overview

36 months

Specifications:

Audio
Audio Channels 7.1
Technical Information
AI-powered Yes
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor ATX
Width 304.8 mm
Depth 243.8 mm
I/O Controller
RAID Levels 0
  1
Controller Type Serial ATA/600
RAID Supported Yes
I/O Expansions
Number of PCI Express x16 Slots 5
PCI Express Standard PCI Express 4.0
  PCI Express 3.0
Total Number of PCI Express Slots 5
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2

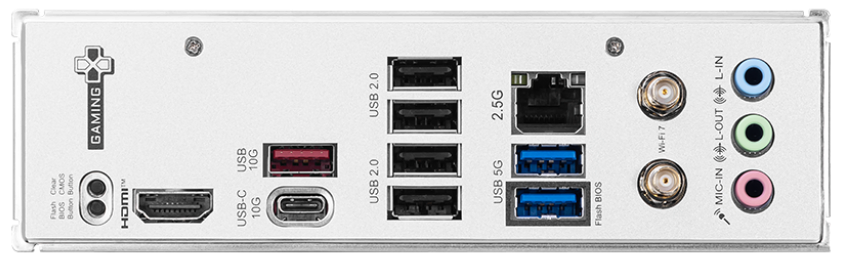

Interfaces/Ports
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
Total Number of USB Ports 8
Number of USB 2.0 Ports 4
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/be
Bluetooth Standard Bluetooth 5.4
2.5Gigabit Ethernet Yes
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number B840 GAMING PLUS WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B840 GAMING PLUS WIFI
Product Name B840 GAMING PLUS WIFI Gaming Desktop Motherboard
Brand Name MSI
Processor & Chipset
Processor Supported Ryzen 9
  Ryzen 8
  Ryzen 7
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model B840
Memory
Maximum Memory Supported 256 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM
  DIMM
Memory Speed Supported 8000 MHz
  4800 MHz
  5600 MHz
  6400 MHz

From the manufacturer

Warranty & Shipping Dimensions

SKU MBM-B840GAMINGPLUSWIFI
Brand MSI
Unit Of Measure ea
