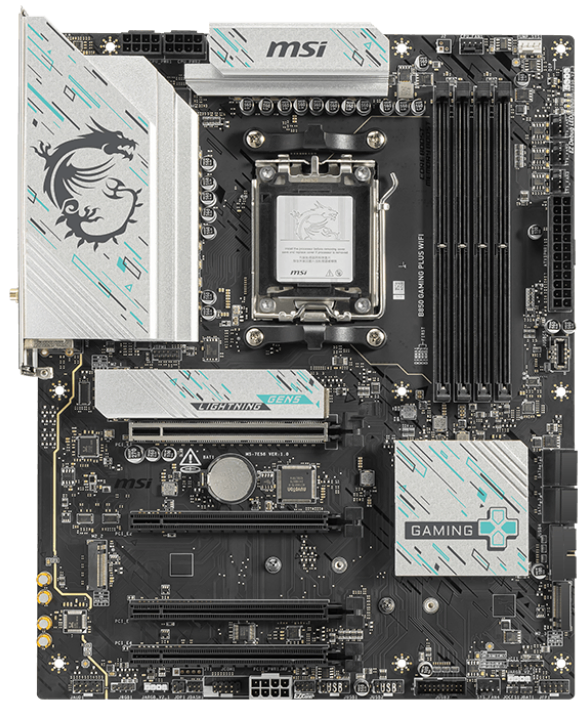

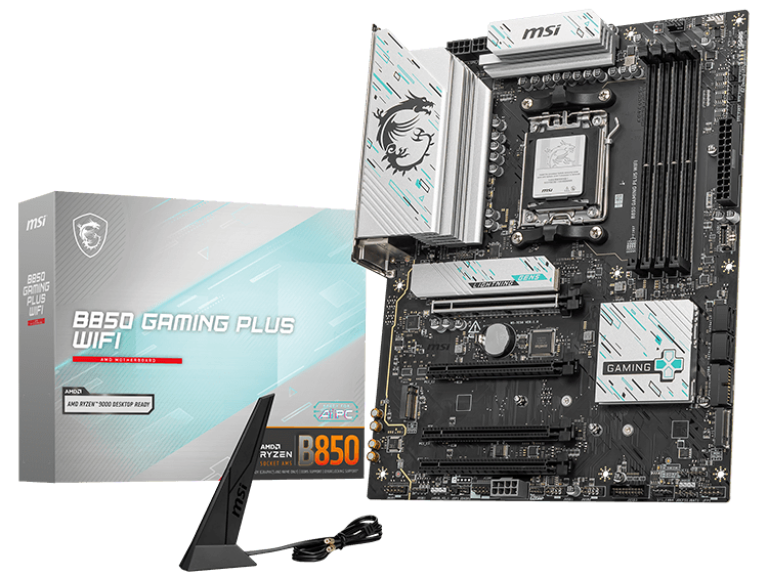

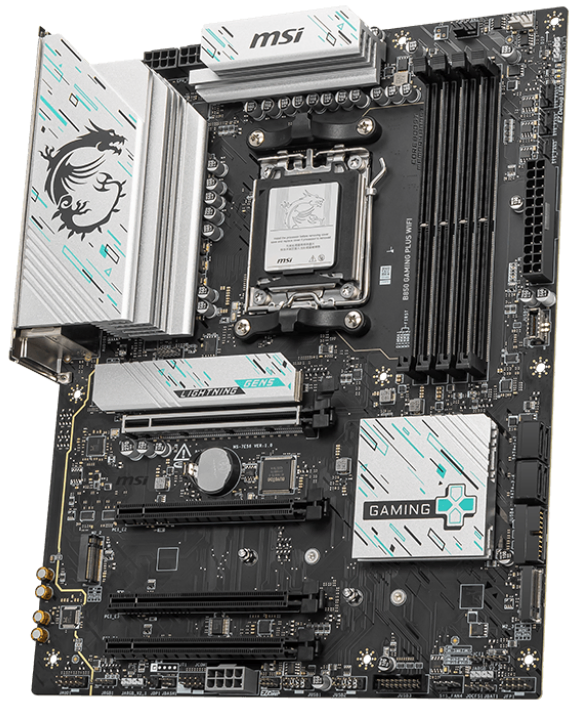

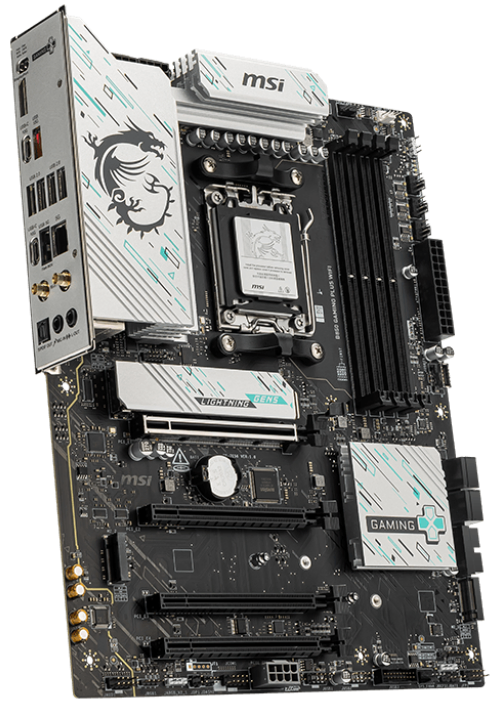

MSI B850 Gaming Plus WIFI AM5 ATX Motherboard Overview

36 months

Features:

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x 4 M.2, Front USB Type-C
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Specifications:

Audio
Audio Channels 7.1
Technical Information
AI-powered Yes
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor ATX
Width 304.8 mm
Depth 243.8 mm
I/O Controller
RAID Levels 1
  0
Controller Type Serial ATA/600
RAID Supported Yes
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/be
Bluetooth Standard Bluetooth 5.4
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 9
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 3
I/O Expansions
Number of PCI Express x16 Slots 4
PCI Express Standard PCI Express 5.0
  PCI Express 4.0
  PCI Express 3.0
Total Number of PCI Express Slots 4

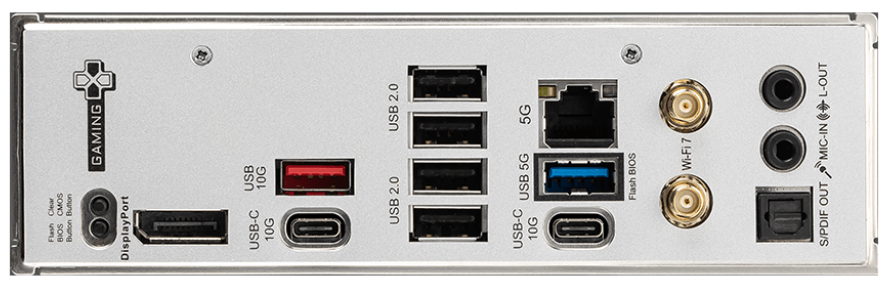

Interfaces/Ports
S/PDIF Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Number of USB 2.0 Ports 4
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number B850 GAMING PLUS WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B850 GAMING PLUS WIFI
Product Name B850 GAMING PLUS WIFI Gaming Desktop Motherboard
Brand Name MSI
Processor & Chipset
Processor Supported Ryzen 8
  Ryzen 7
  Ryzen 9
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model B850
Memory
Maximum Memory Supported 256 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
  UDIMM
Memory Speed Supported 8200 MHz
  6400 MHz
  5600 MHz
  4800 MHz



SKU MBM-B850GAMINGPLUSWIFI
Brand MSI
Unit Of Measure ea
