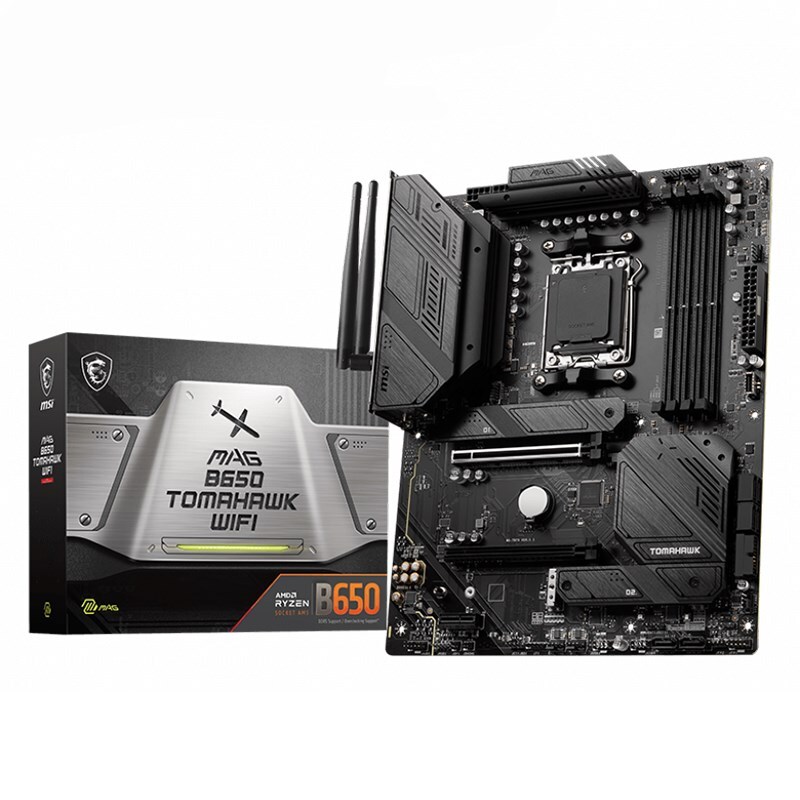

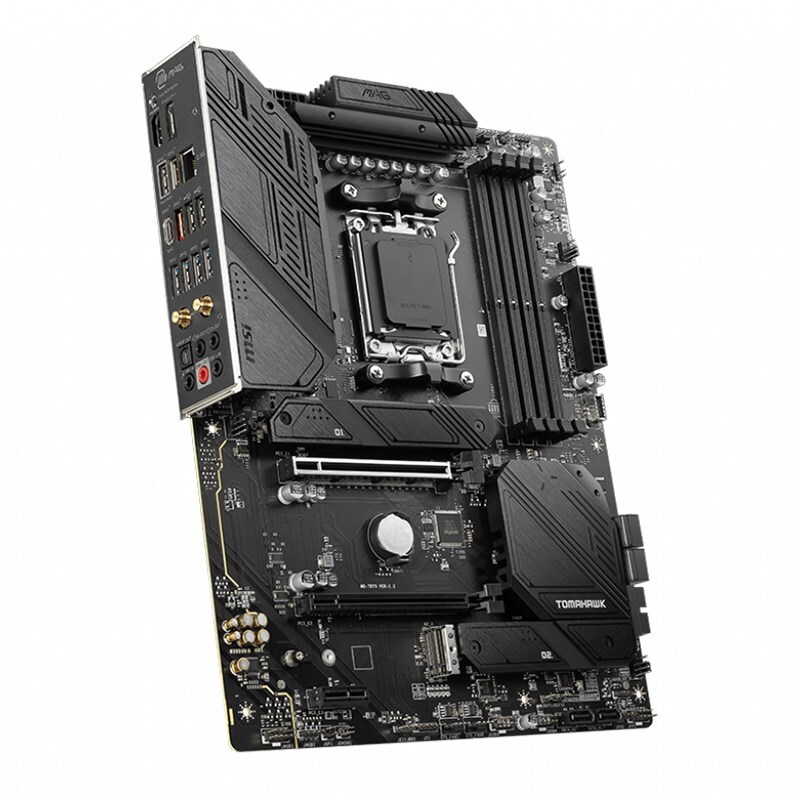

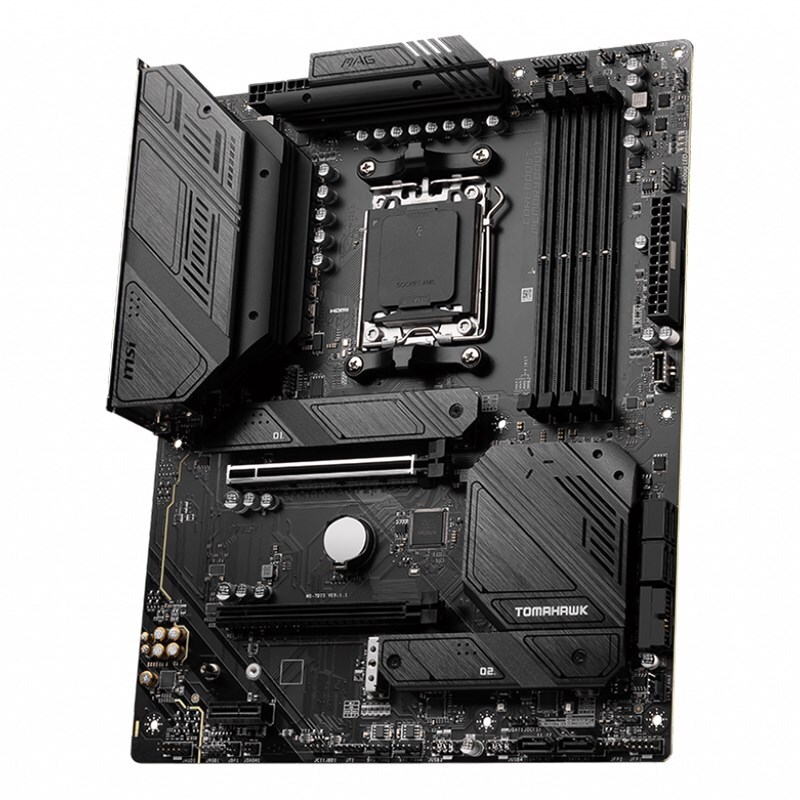

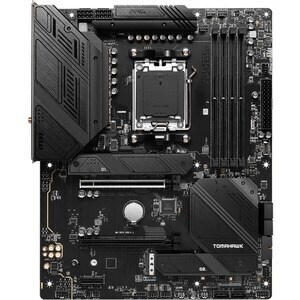

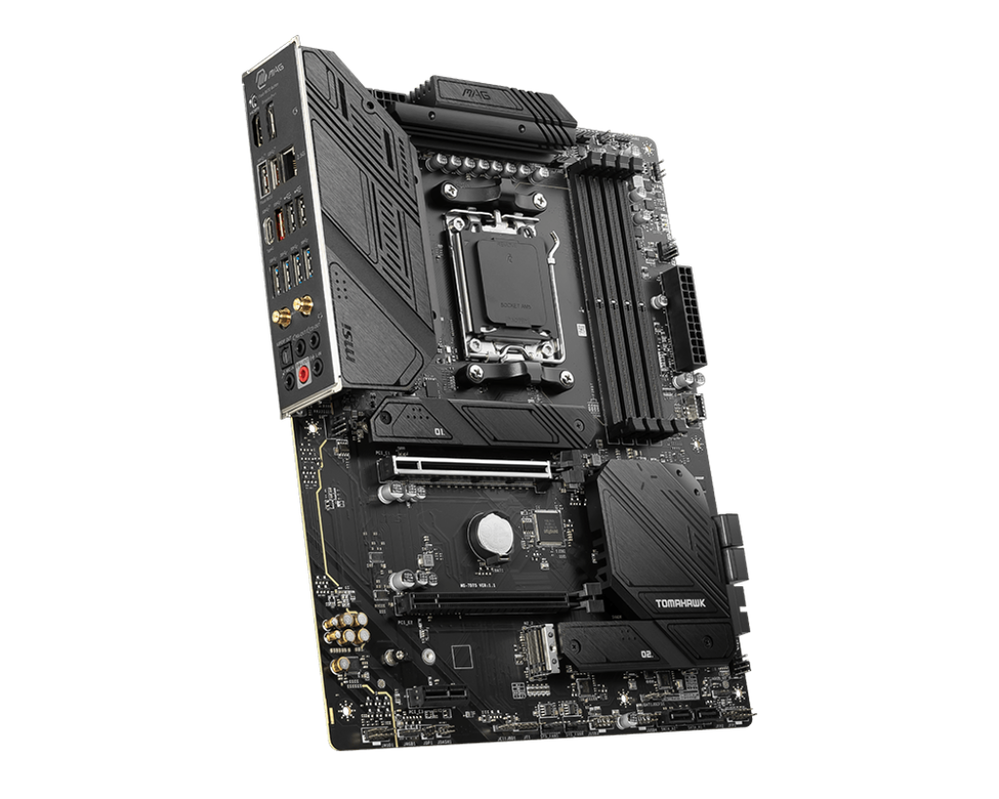

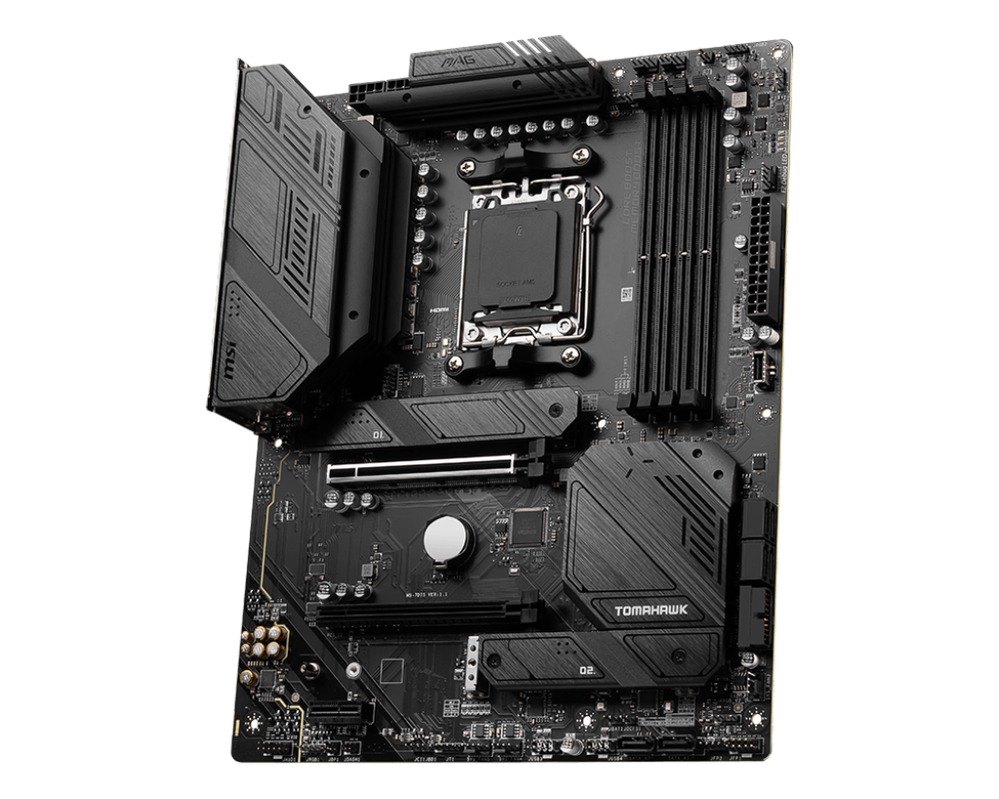

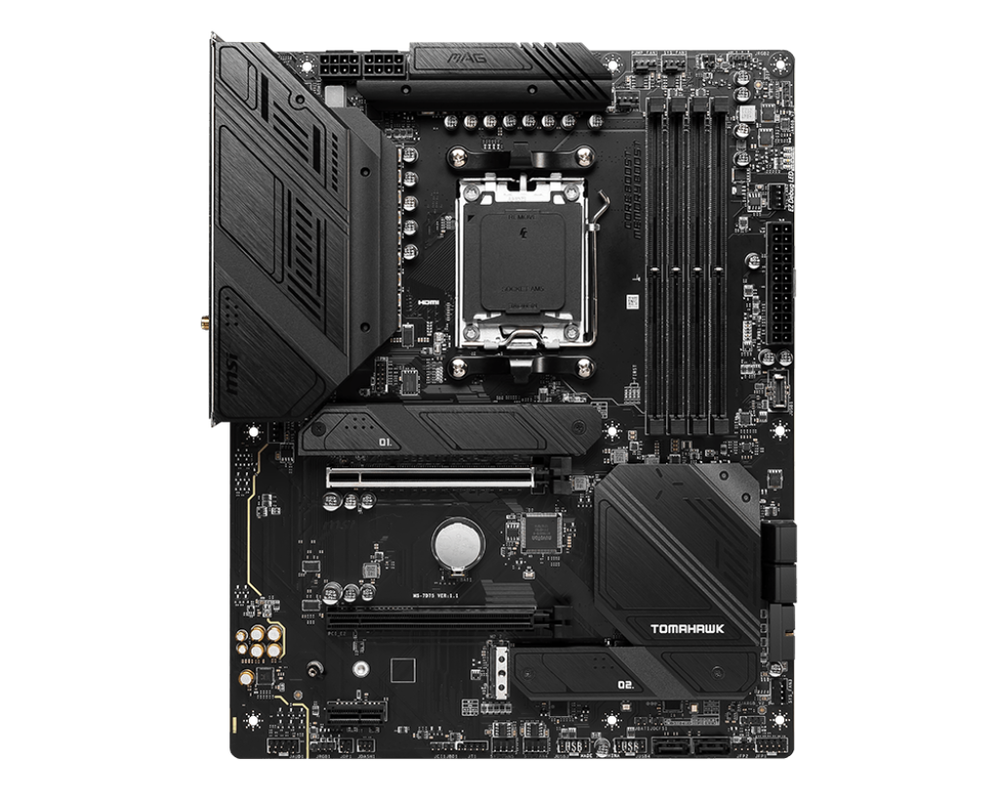

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard Overview

36 months

Features

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications:

Audio

Audio Channels 7.1

Miscellaneous

Brand Compatibility AMD

Video

Onboard Video CPU Dependent Video

Physical Characteristics

Form Factor ATX
Width 304.8 mm
Depth 243.8 mm

Onboard Interfaces

Number of SATA Interfaces 6
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 3

I/O Controller

RAID Levels 10
0
1
Controller Type Serial ATA/600
RAID Supported Yes

Processor & Chipset

Processor Supported Ryzen 7
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model B650

Memory

Maximum Memory Supported 128 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
Memory Speed Supported 6600 MHz
6400 MHz
6200 MHz
6000 MHz
5800 MHz
5600 MHz
5400 MHz
5200 MHz
5000 MHz
4800 MHz

I/O Expansions

Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 2
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 3.0
PCI Express 4.0
Total Number of PCI Express Slots 2

Network & Communication

Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.2
2.5Gigabit Ethernet Yes

General Information

Product Type Gaming Desktop Motherboard
Manufacturer Part Number MAG B650 TOMAHAWK WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B650 TOMAHAWK WIFI
Product Name MAG B650 TOMAHAWK WIFI Gaming Desktop Motherboard
Product Line MAG
Brand Name MSI

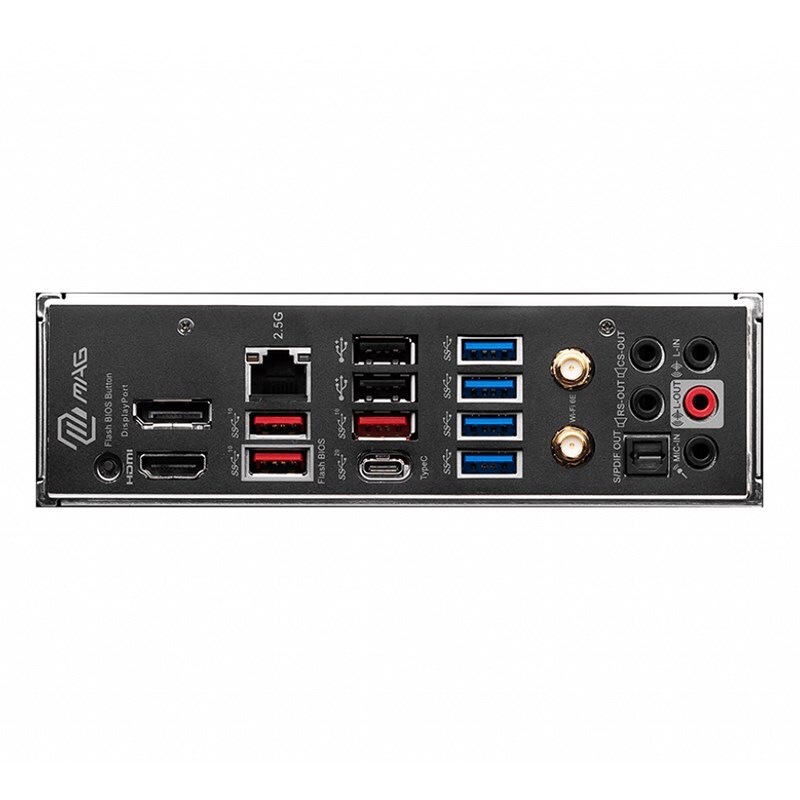

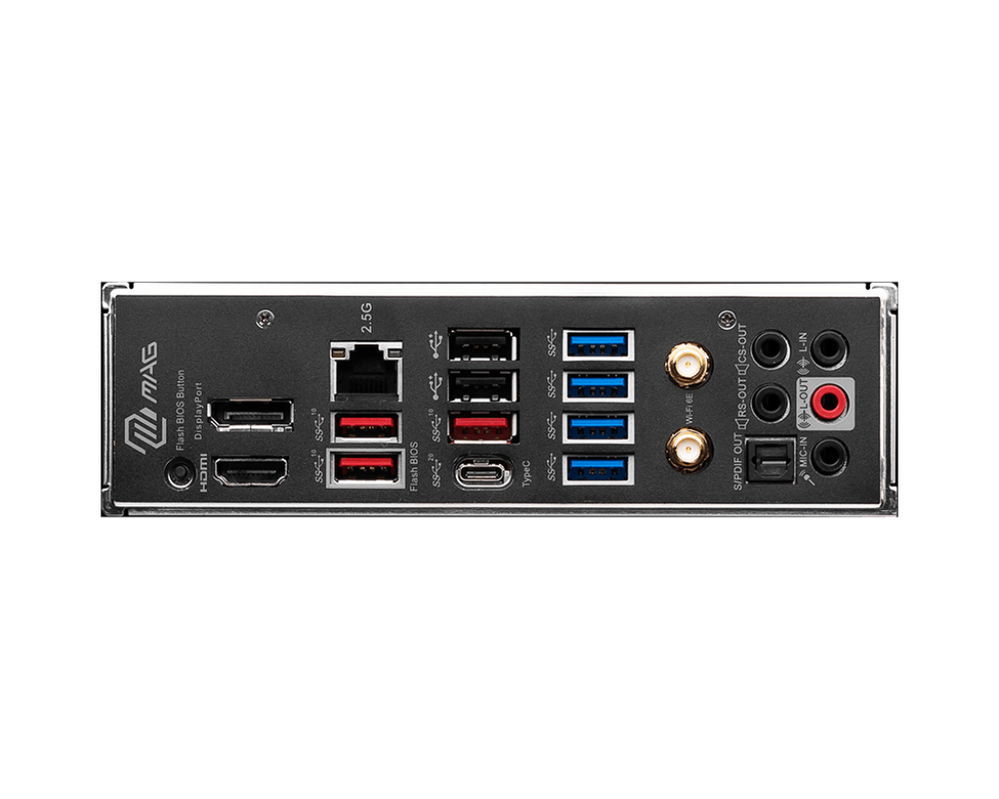

Interfaces/Ports

S/PDIF Yes
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 10
Number of USB 2.0 Ports 2
Number of USB 3.2 Gen 1 Type-A Ports 4
Number of USB 3.2 Gen 2 Type-A Ports 3
SKU MBMB650TH-W
Brand MSI
Unit Of Measure ea
