MSI MPG B650 GAMING PLUS WIFI AMD AM5 ATX Motherboard

36 months

Features

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications:

Audio

Audio Channels 7.1

Miscellaneous

Brand Compatibility AMD

Video

Onboard Video CPU Dependent Video

Physical Characteristics

Form Factor Micro ATX
Width 304.8 mm
Depth 243.8 mm

I/O Controller

RAID Levels 1
0
Controller Type Serial ATA/600
RAID Supported Yes

Onboard Interfaces

Number of SATA Interfaces 4
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2

Processor & Chipset

Processor Supported Ryzen 7
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model B650

Memory

Maximum Memory Supported 192 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
UDIMM
Memory Speed Supported 5000 MHz
4800 MHz
6400 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz

I/O Expansions

Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 3.0
PCI Express 4.0
Total Number of PCI Express Slots 3

Network & Communication

Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.3
2.5Gigabit Ethernet Yes

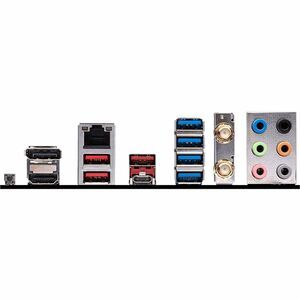

Interfaces/Ports

HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Number of USB 3.2 Gen 1 Type-A Ports 4
Number of USB 3.2 Gen 2 Type-A Ports 3

General Information

Product Type Gaming Desktop Motherboard
Manufacturer Part Number MAGB650GAMINGPLUSWIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B650 GAMING PLUS WIFI
Product Name MAG B650 GAMING PLUS WIFI Gaming Desktop Motherboard
Product Line MAG
Brand Name MSI
SKU MBM-B650GAMIPLUSWIFI
Brand MSI
Unit Of Measure ea
