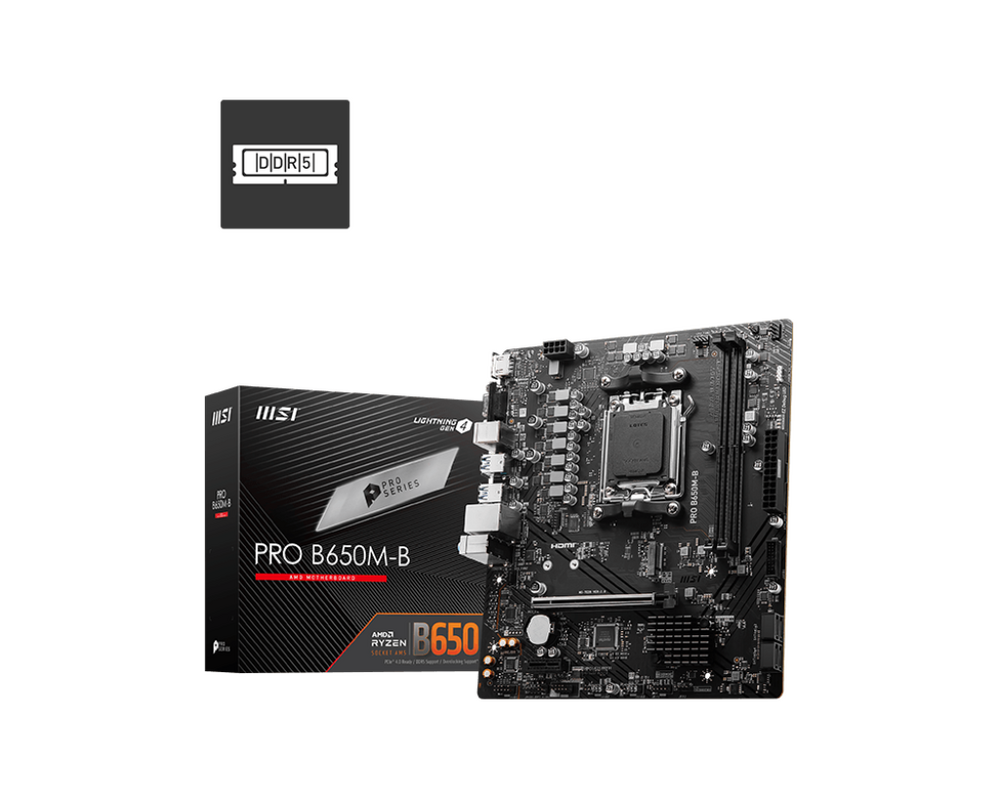

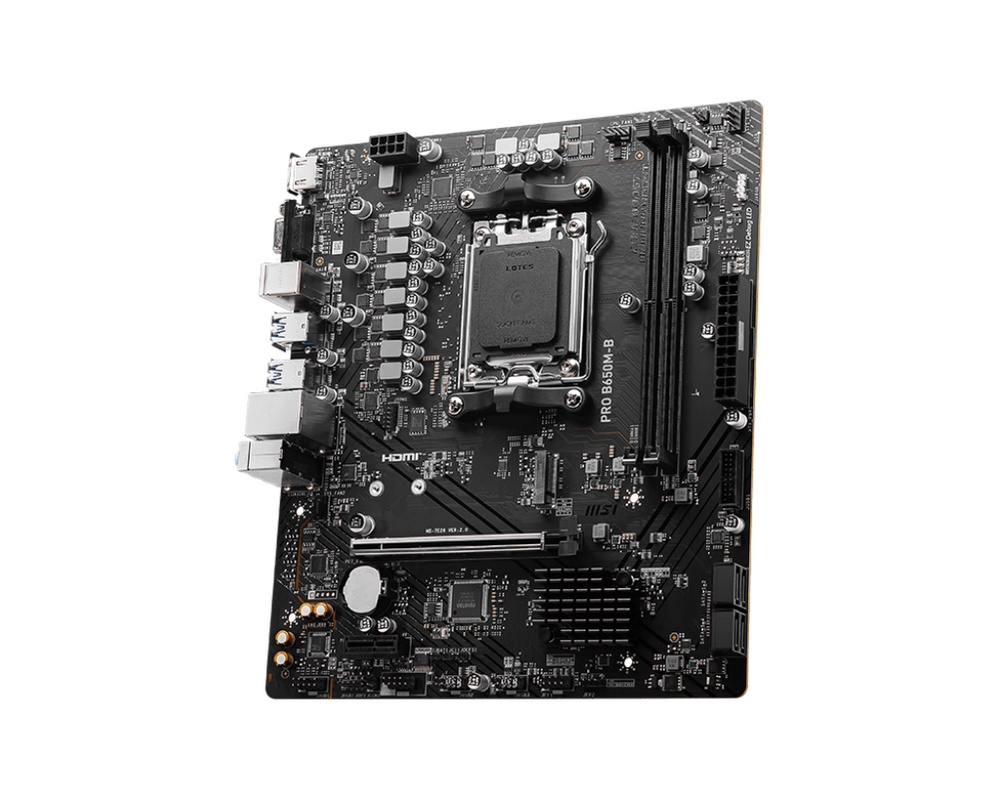

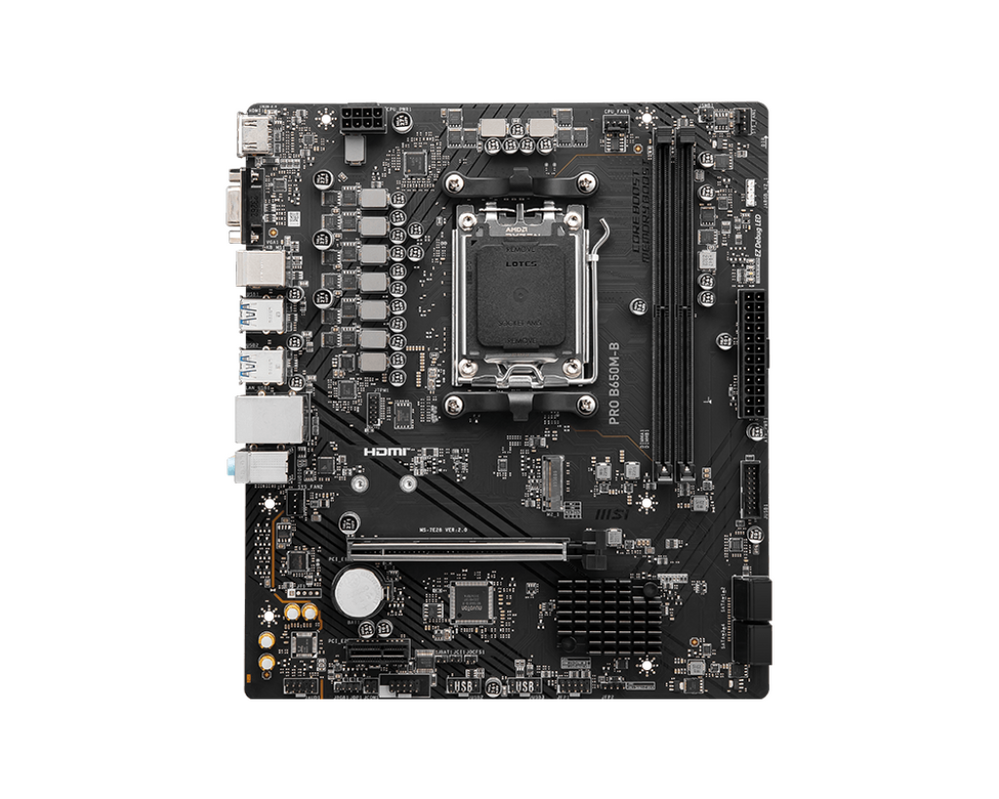

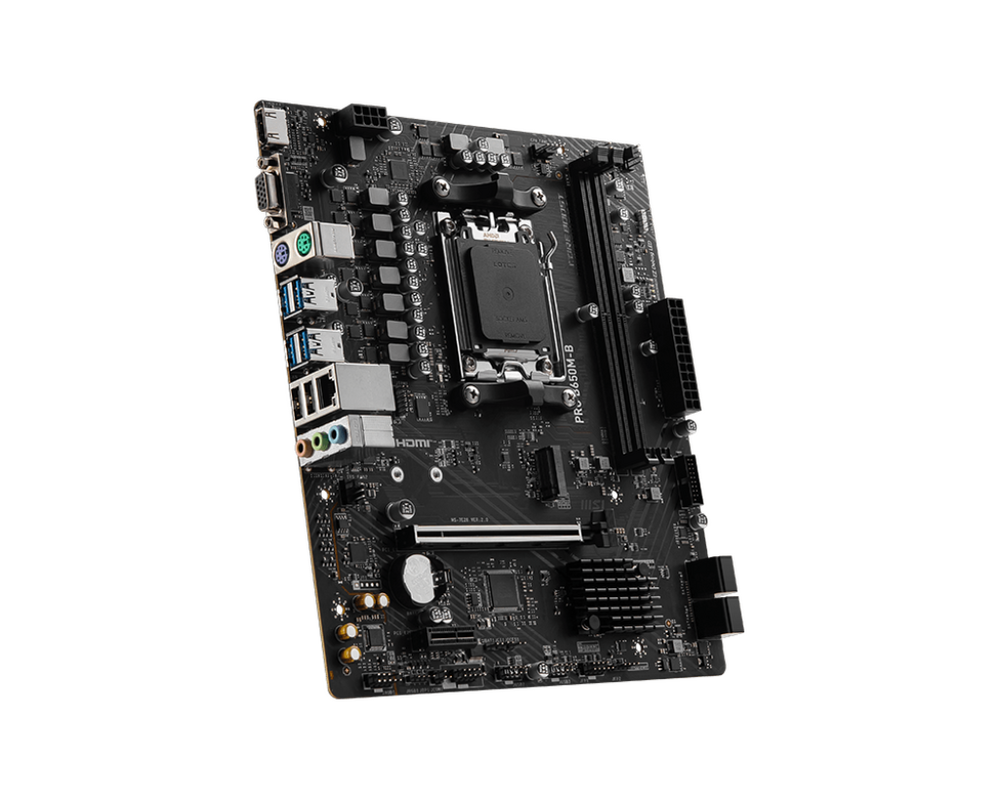

MSI PRO B650M-B AM5 DDR5 mATX Motherboard Overview

36 months

Specifications


Model Number PRO-B650M-B
Chipset AMD B650
CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
Supports x16 (For Ryzen™ 7000 Series processors)
Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtek® RTL8125BG 2.5G LAN
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED Feature 4x EZ Debug LED

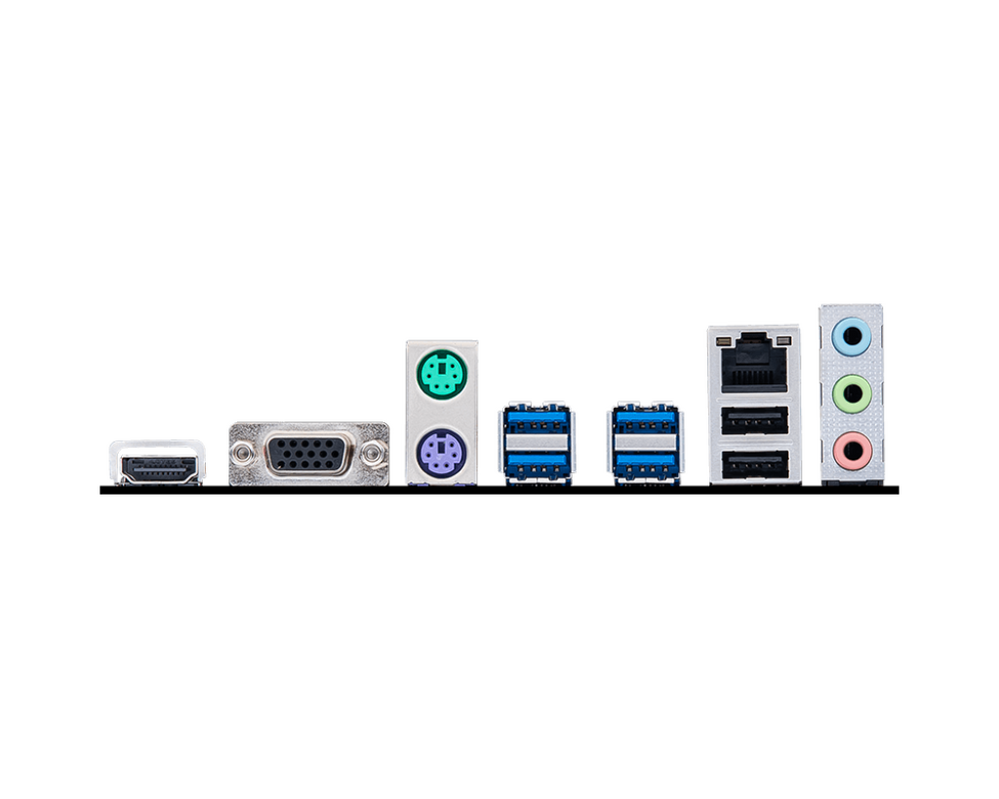

Back Panel Ports HDMI™
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio connectors
USB 2.0
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
215mmx243.84mm
Box Content European Union Regulatory Notice
Quick Installation Guide
M.2 Screw / Standoff Set
SATA Cable
1/0 Shield
SKU MBMB650-B
Brand MSI
Unit Of Measure ea
