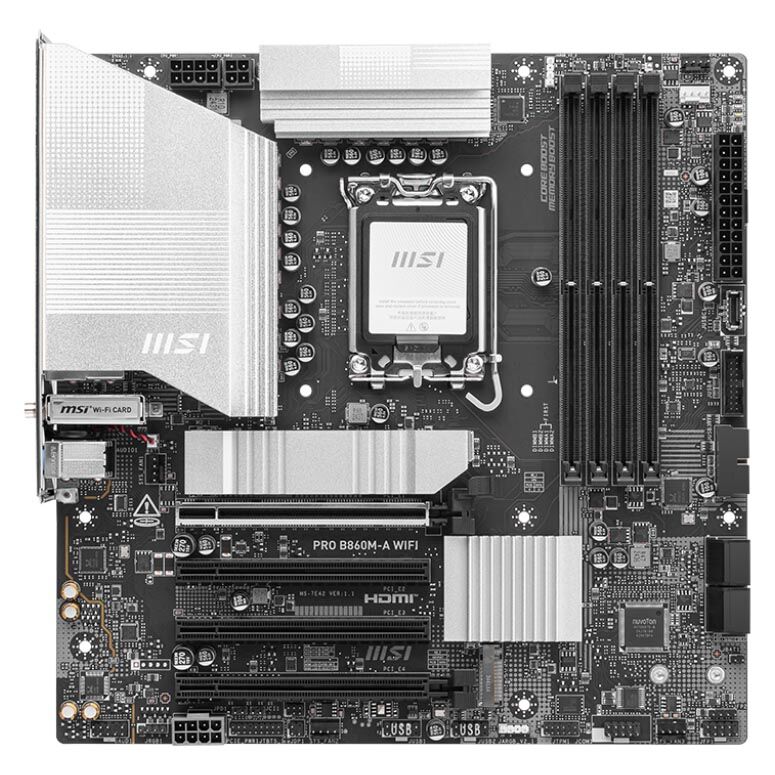

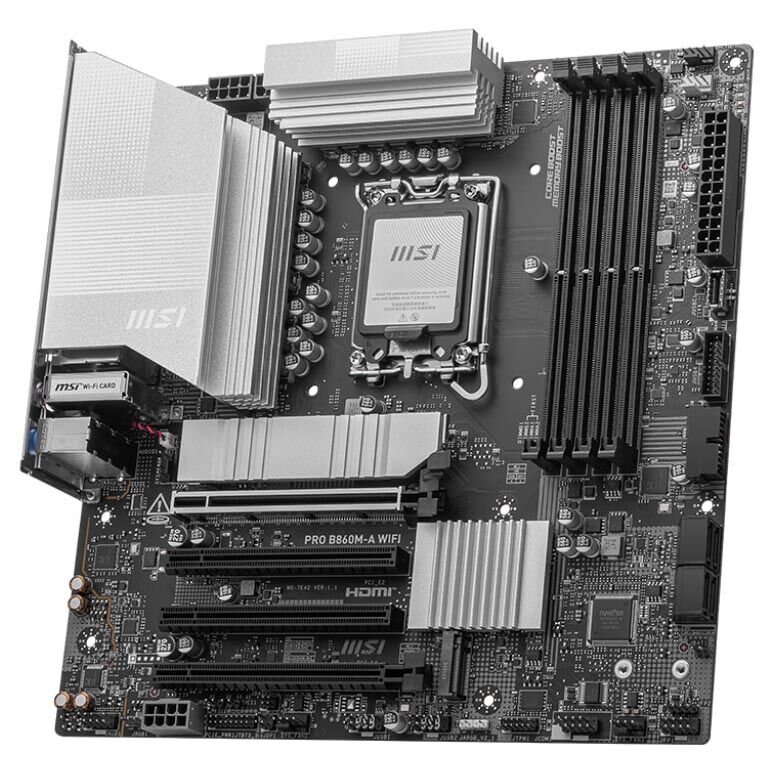

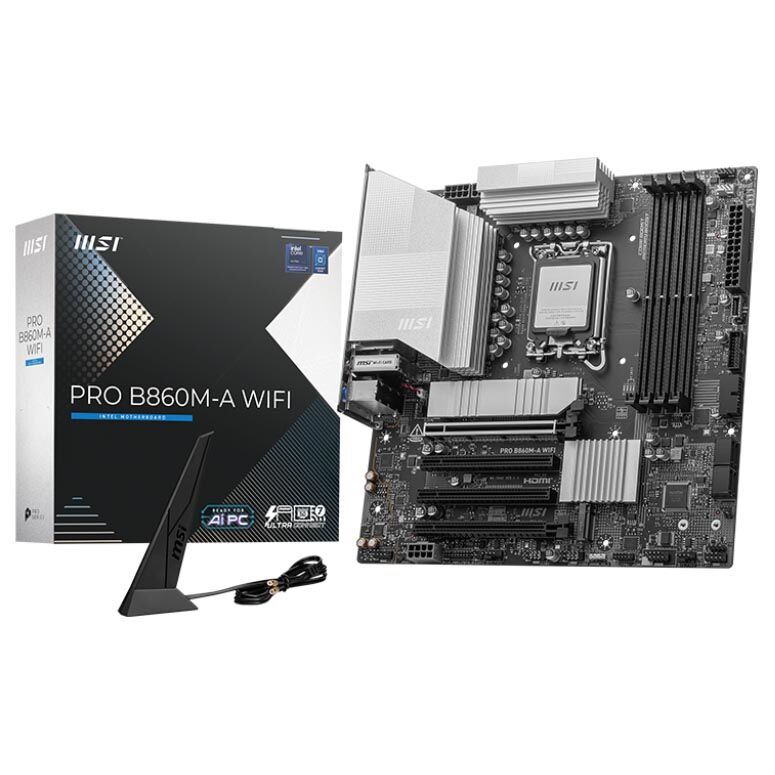

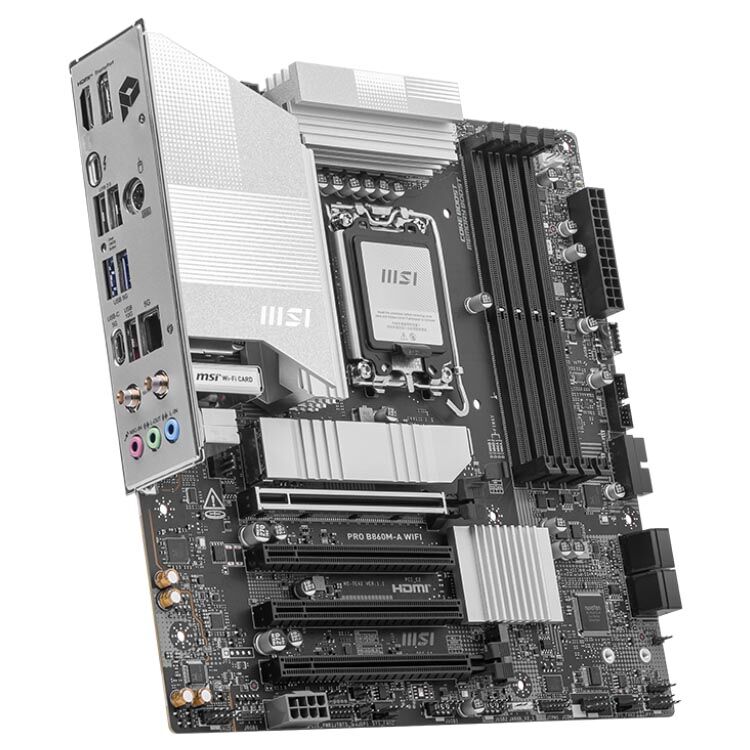

MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard Overview

36 months

Specifications:

Audio
Audio Channels 7.1
Technical Information
AI-powered Yes
Video
Onboard Video CPU Dependent Video
I/O Expansions
Number of PCI Express x16 Slots 4
PCI Express Standard PCI Express 4.0
  PCI Express 5.0
Total Number of PCI Express Slots 4
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 9
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 3
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/be
Bluetooth Standard Bluetooth 5.4
Physical Characteristics
Form Factor Micro ATX
Width 243.8 mm
Depth 243.8 mm
Product Color Silver
Color Family Silver
Processor & Chipset
Processor Supported Core Ultra
Total Processor Supported 1
Processor Socket Socket LGA-1851
Chipset Manufacturer Intel
Chipset Model B860
I/O Controller
RAID Levels 5
  0
  1
  10
Controller Type Serial ATA/600
RAID Supported Yes

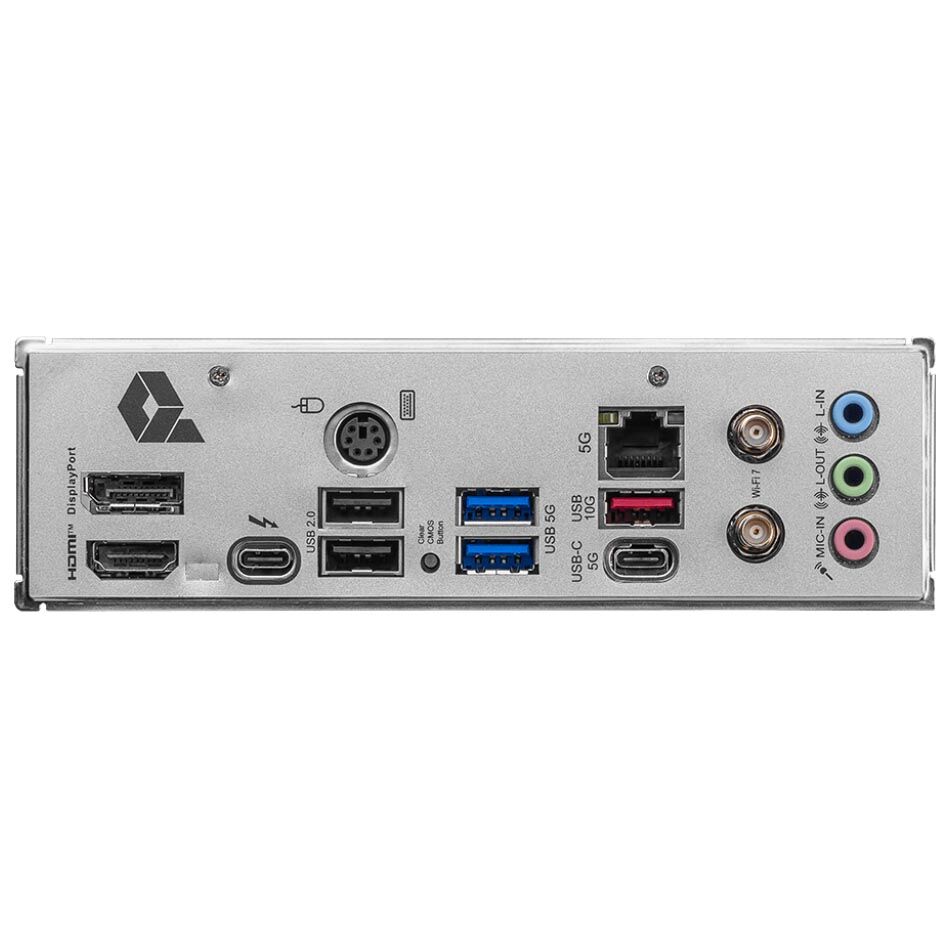

Interfaces/Ports
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 2
Thunderbolt Yes
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number PRO B860M-A WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B860M-A WIFI
Product Name PRO B860M-A WIFI Gaming Desktop Motherboard
Product Series PRO
Brand Name MSI
Memory
Maximum Memory Supported 256 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM
  DIMM
Memory Speed Supported 4800 MHz
  8600 MHz
  7200 MHz
  6400 MHz



SKU MBM-PROB860M-AWIFI
Brand MSI
Unit Of Measure ea
