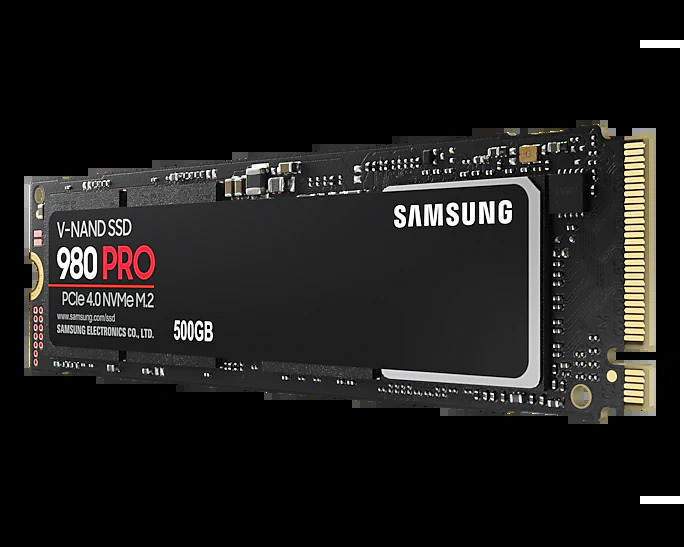

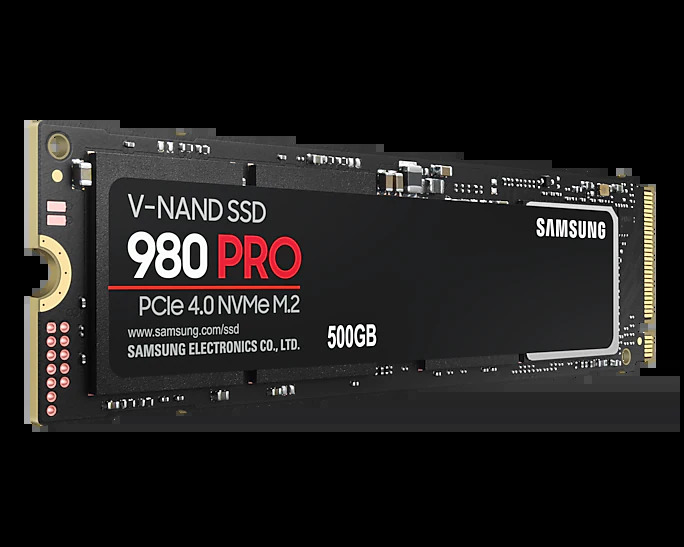

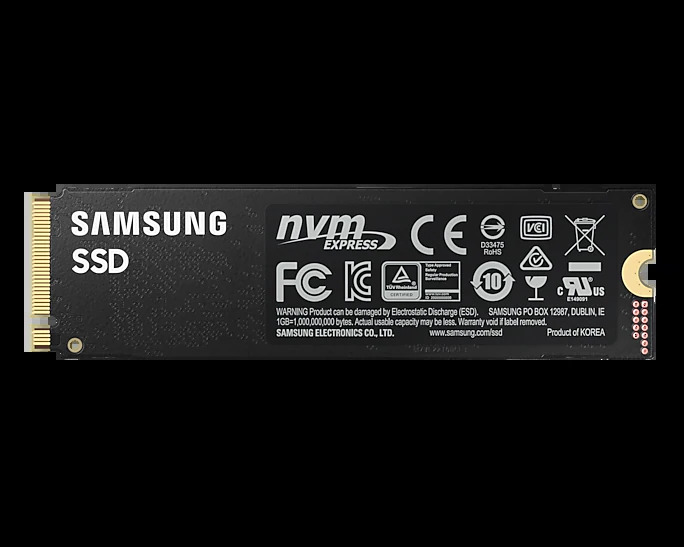

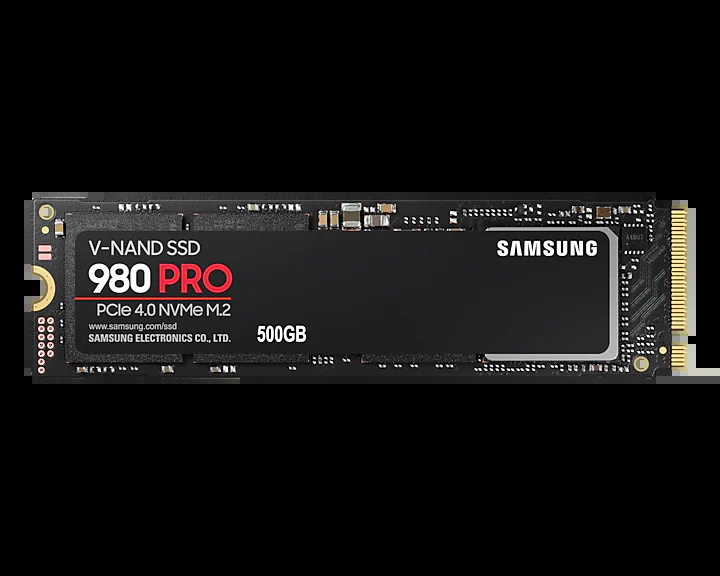

Samsung M.2 500GB, SSD 980 PRO, V-NAND, NVMe, PCIe Gen 4 (PCIe Gen 3 Compatible at lower speeds), Read up to 6900MB/s, Write up to 5000MB/s, up to 1M IOPS, 5 Year Warranty

60 months

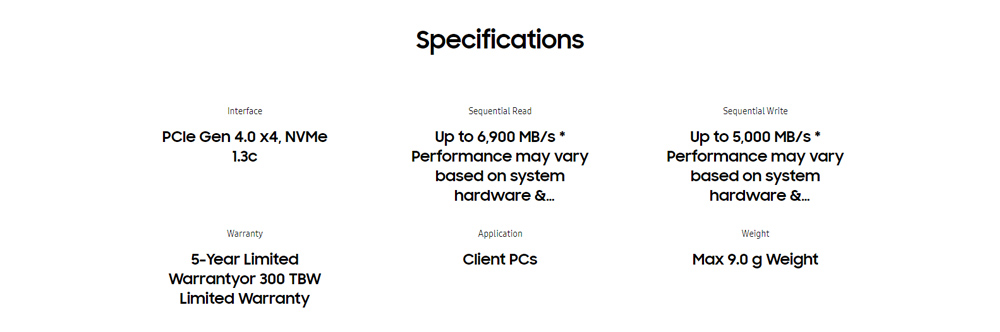

Specifications

Interface
PCIe Gen 4.0 x4, NVMe 1.3c
Sequential Read
Up to 6,900 MB/s *

* Performance may vary based on system hardware & configuration

Sequential Write
Up to 5,000 MB/s *

* Performance may vary based on system hardware & configuration

Warranty
5-Year Limited Warranty or 300 TBW Limited Warranty
Application
Client PCs
Weight
Max 9.0 g Weight

General Feature

Application

Client PCs

Rated Capacity

500GB (1GB=1 Billion byte by IDEMA)

* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M.2 (2280)

Interface

PCIe Gen 4.0 x4, NVMe 1.3c

Dimension (WxHxD)

80.15 x 22.15 x 2.38 (mm)

Weight

Max 9.0 g Weight

Storage Memory

Samsung V-NAND 3-bit MLC

Controller

Samsung Elpis Controller

Cache Memory

Samsung 512MB Low Power DDR4 SDRAM



Special Feature

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

Not supported

Device Sleep Mode Support

Yes



Performance

Sequential Read

Up to 6,900 MB/s *

Sequential Write

Up to 5,000 MB/s *

Random Read (4KB, QD32)

Up to 800,000 IOPS *

Random Write (4KB, QD32)

Up to 1,000,000 IOPS *

Random Read (4KB, QD1)

Up to 22,000 IOPS *

Random Write (4KB, QD1)

Up to 60,000 IOPS *

* Performance may vary based on system hardware & configuration



Environment

Power Consumption

Average: 5.9 W* Maximum: 7.4 W (Burst mode)*

Power Consumption (Idle)

Max. 35 mW *

Allowable Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70°C Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

* Actual power consumption may vary depending on system hardware & configuration



Accessories

Installation Kit

Not Available



Software

Management SW

Magician Software for SSD management



Warranty

5-Year Limited Warranty or 300 TBW Limited Warranty

SKU M.2-SAM-MZV8P500BW
Model # MZ-V8P500BW
Brand Samsung
Unit Of Measure ea
