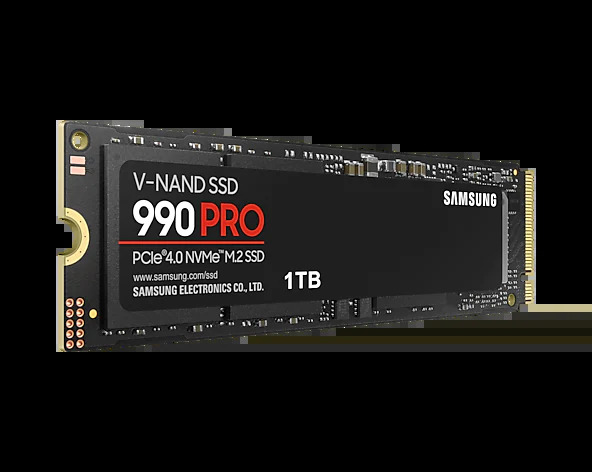

Samsung 990 Pro 1TB Gen4 NVMe SSD

60 months

General Feature

  • ApplicationClient PCs, Game Consoles
  •
  • Rated Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
  •
  • Form FactorM.2 (2280)
  •
  • InterfacePCIe Gen 4.0 x4, NVMe 2.0
  •
  • Dimension (WxHxD)80 x 22 x 2.3 mm
  •
  • WeightMax 9.0g Weight
  •
  • Storage MemorySamsung V-NAND 3-bit MLC
  •
  • ControllerSamsung in-house Controller
  •
  • Cache MemorySamsung 1GB Low Power DDR4 SDRAM

Special Feature

  • TRIM SupportSupported
  •
  • S.M.A.R.T SupportSupported
  •
  • GC (Garbage Collection)Auto Garbage Collection Algorithm
  •
  • Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
  •
  • WWN SupportNot supported
  •
  • Device Sleep Mode SupportYes

Performance

  • Sequential ReadUp to 7,450 MB/s * Performance may vary based on system hardware & configuration
  •
  • Sequential WriteUp to 6,900 MB/s * Performance may vary based on system hardware & configuration
  •
  • Random Read (4KB, QD32)Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration
  •
  • Random Write (4KB, QD32)Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
  •
  • Random Read (4KB, QD1)Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
  •
  • Random Write (4KB, QD1)Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

  • Average Power Consumption (system level)*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
  •
  • Power consumption (Idle)Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration
  •
  • Allowable Voltage3.3 V ± 5 % Allowable voltage
  •
  • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
  •
  • Operating Temperature0 - 70 ℃ Operating Temperature
  •
  • Shock1,500 G & 0.5 ms (Half sine)

Accessories

  • Installation KitNot Available

Software

  • Management SWMagician Software for SSD management

Warranty

  • 5-Year Limited Warranty or 600 TBW Limited Warranty
SKU HBS-990PRONV-1TB
Brand Samsung
Unit Of Measure ea
