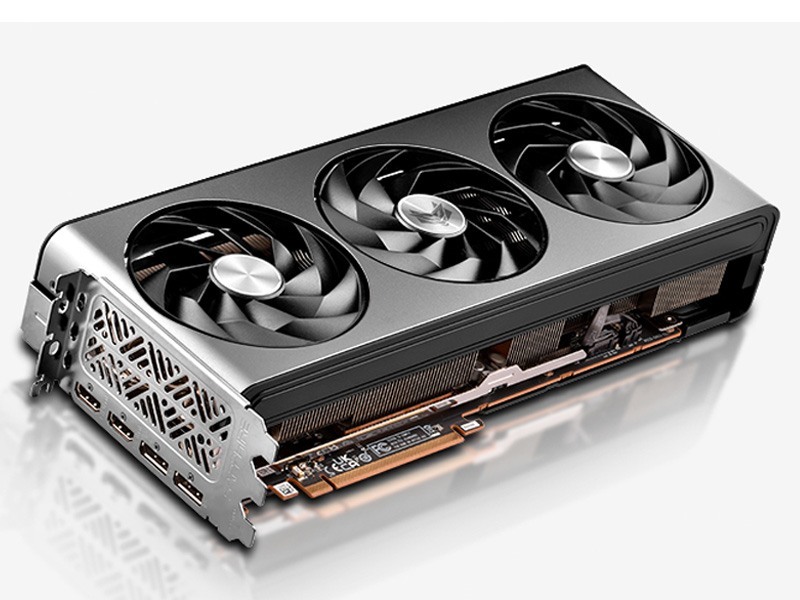

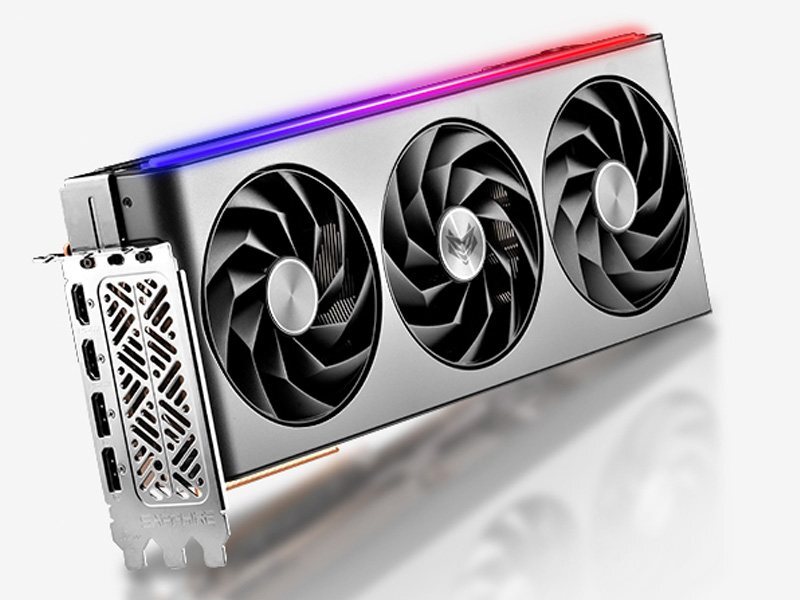

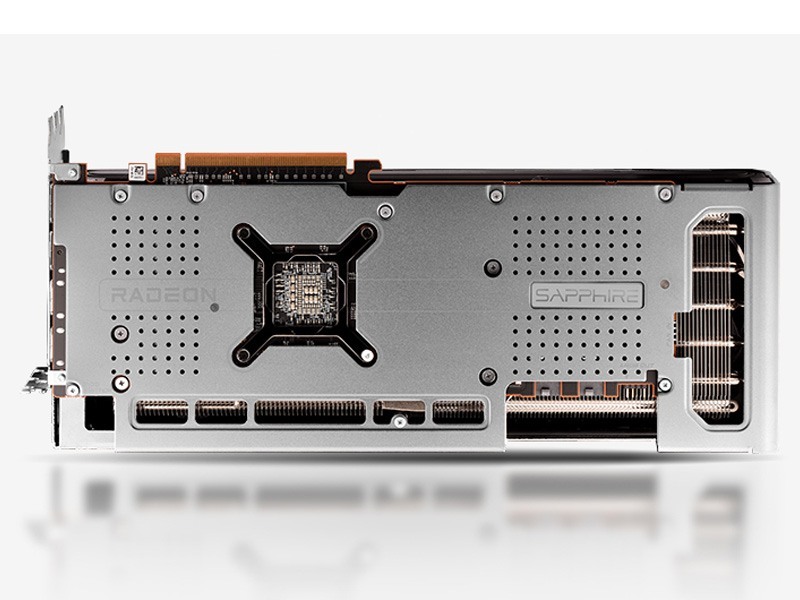

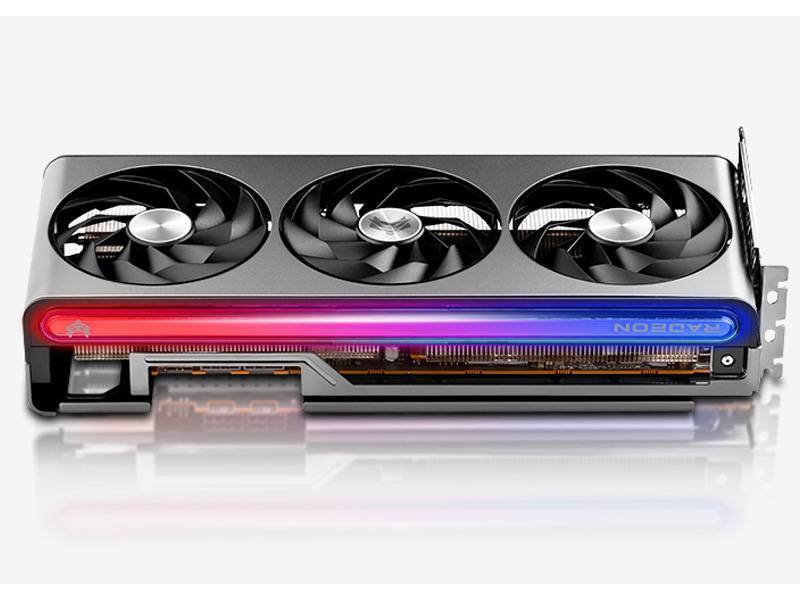

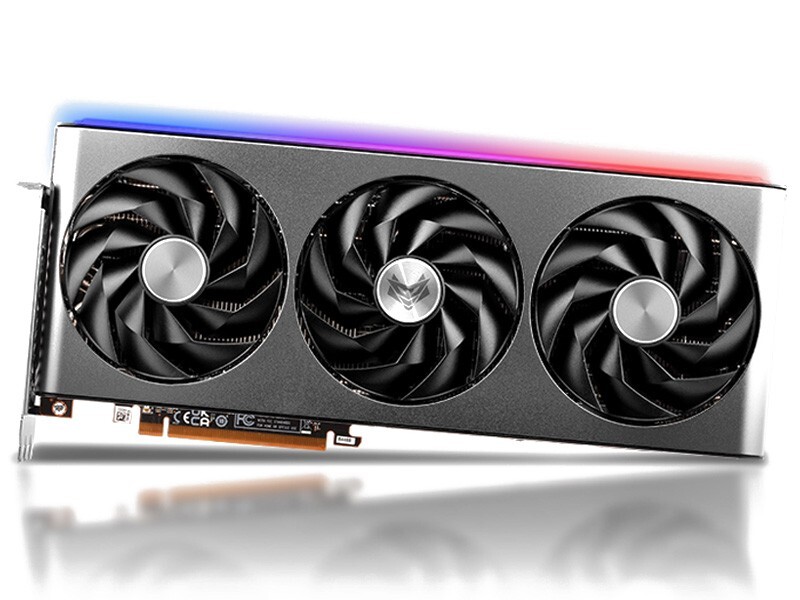

SAPPHIRE NITRO+ RADEON RX 7800 XT GAMING OC 16GB GDDR6 Graphics Card

SAPPHIRE NITRO+ RADEON RX 7800 XT GAMING OC 16GB GDDR6 Graphics Card

36 months

 Specifications

Manufacturer Specifications

GPU

AMD Radeon™ RX 7800 XT Graphics Card

  5nm GPU
  AMD RDNA™ 3 Architecture

Stream Processors

3840

Compute Units

60 CU (with RT+AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

60

Memory Size/Bus

16GB/256 bit GDDR6

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320

  DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

2x HDMI

  2x DisplayPort

BIOS Support

Dual UEFI

Game Index

4K

Sapphire Features

Dual BIOS

  TriXX Software Switch
  Premium Digital Power Design
  Ultra High Performance Conductive Polymer Aluminum Capacitors
  Fuse Protection
  Tri-X Cooling Technology
  High TG Copper PCB
  Optimized Composite Heatpipe
  Intelligent Fan Control
  Precision Fan Control
  Metal Backplate with ARGB
  ARGB Light Bar
  Two-Ball Bearing Fans
  Angular Velocity Fan Blade
  Assistive System Fan Control
  Aluminum Alloy Frame
  Dedicated VRM Cooling
  Wave Fin Design
  V Shape Fin Design for GPU Cooling
  TriXX Supported
  Fan Check
  Fan Quick Connect
  TriXX Boost
  NITRO Glow
  External RGB LED MB Synchronization

Accessories Bundled

Graphics Card Supporter

  ARGB Extension Cable

AMD Features

AMD RDNA™ 3 Architecture

  60 AMD RDNA™ 3 Compute Units
  64MB AMD Infinity Cache™ Technology
  DisplayPort™ 2.1 Support
  AMD Radiance Display™ Engine
  16GB GDDR6 on 256-Bit Memory Bus
  PCI® Express 4.0 ready
  AMD FidelityFX™ Super Resolution technology
  Microsoft® DirectX® 12 Ultimate Support
  Microsoft® DirectStorage Support
  Vulkan® Optimized
  AMD Smart Technologies
  AMD Software: Adrenalin Edition™
  AMD Noise Suppression
  AMD Privacy View
  AMD Radeon™ Super Resolution technology
  AMD Link
  AMD FreeSync™ Technology

Cooling

3 Fans

Form Factor

3 slot, ATX

  Dimension: 320(L)X 134.85(W)X 61.57 (H)mm

Power Consumption

288W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 700 Watt Power Supply

  2 x 8-pin Power Connector.
  PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  Minimum 8GB of system memory. 16GB recommended.
SKU VCS-RX7800XT-NIT
Brand Sapphire
Unit Of Measure ea
