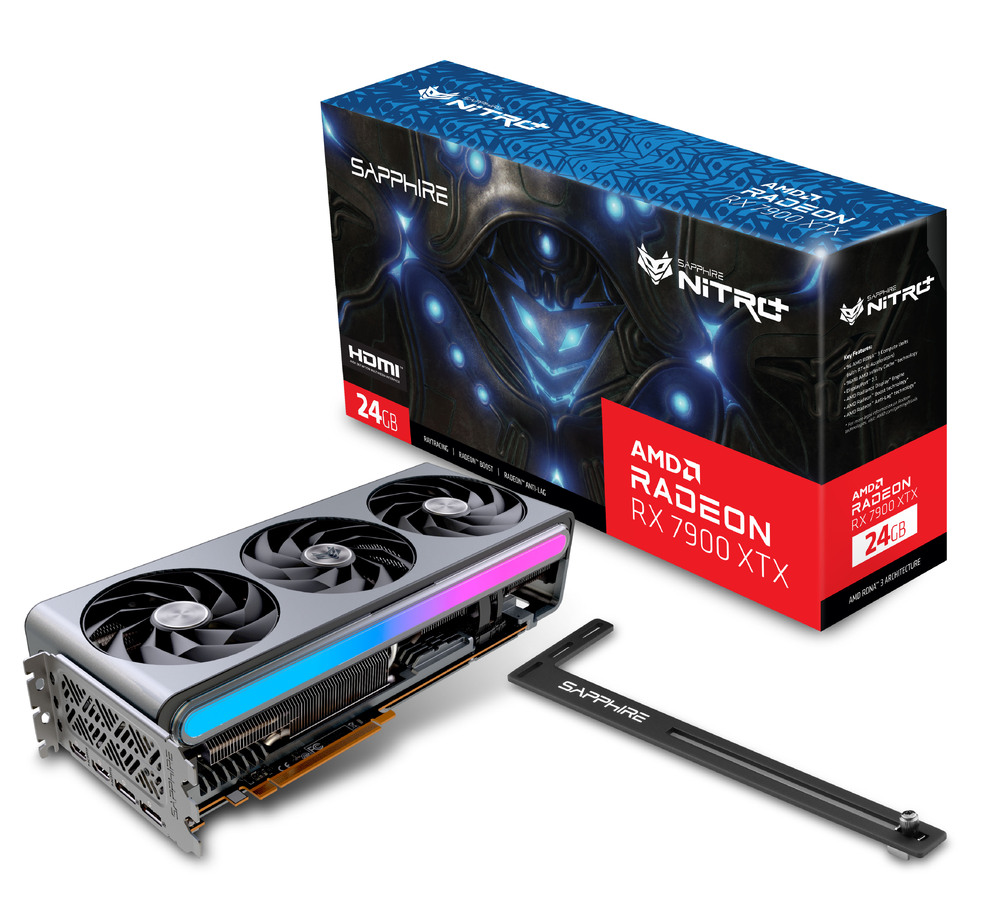

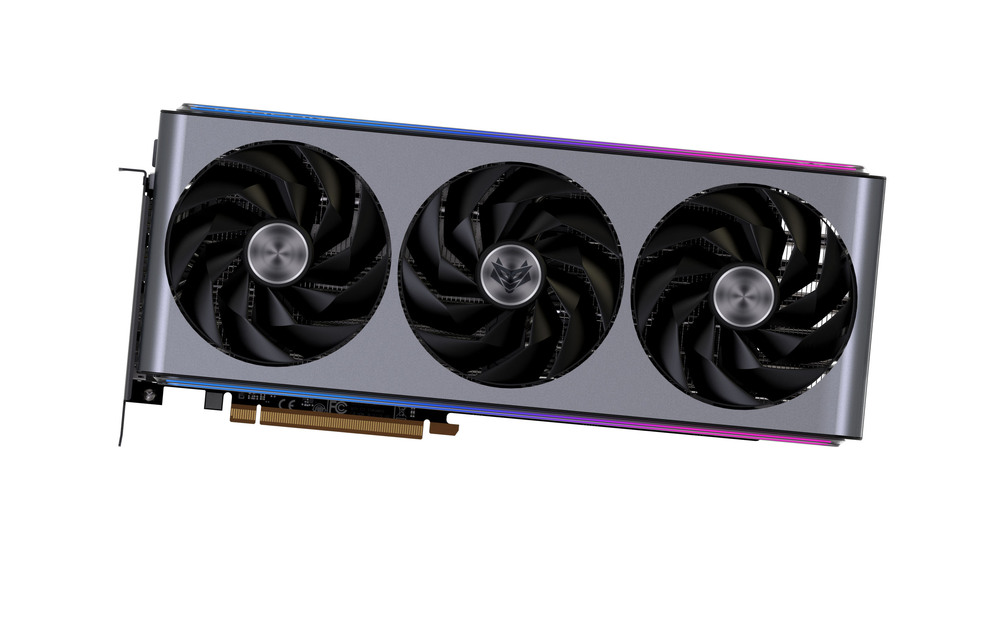

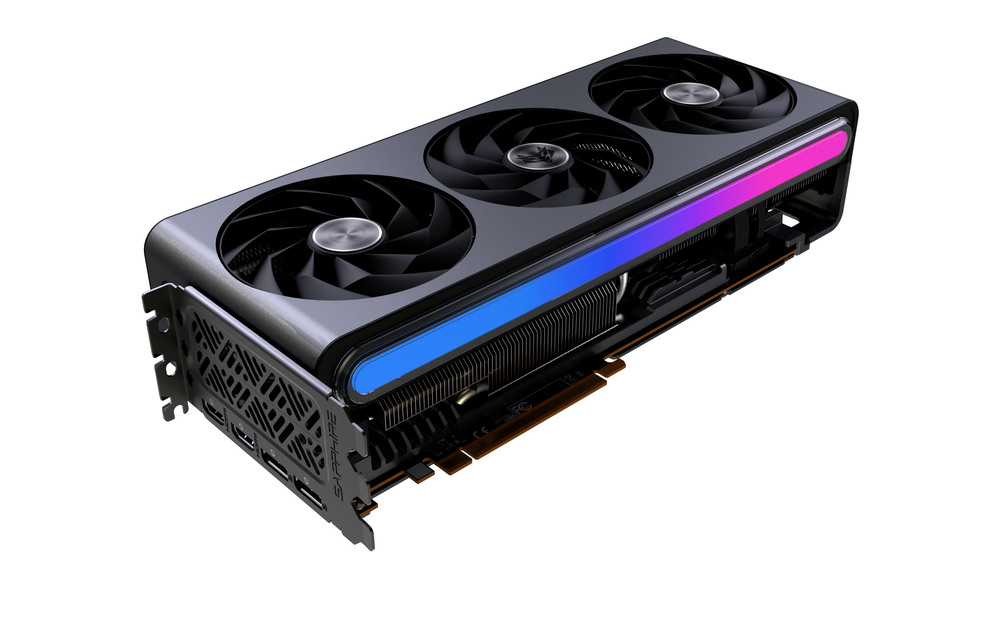

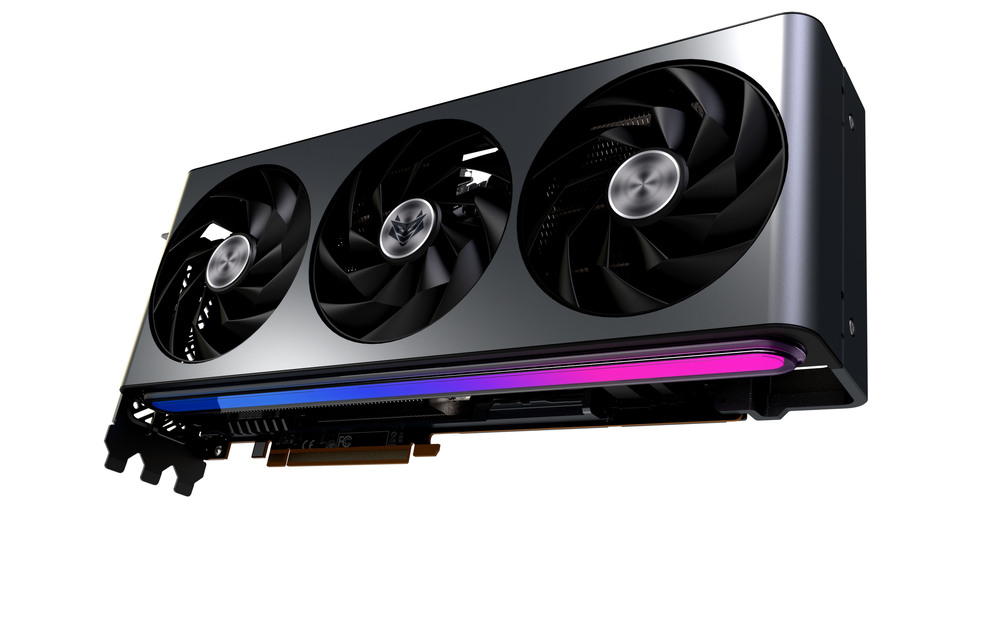

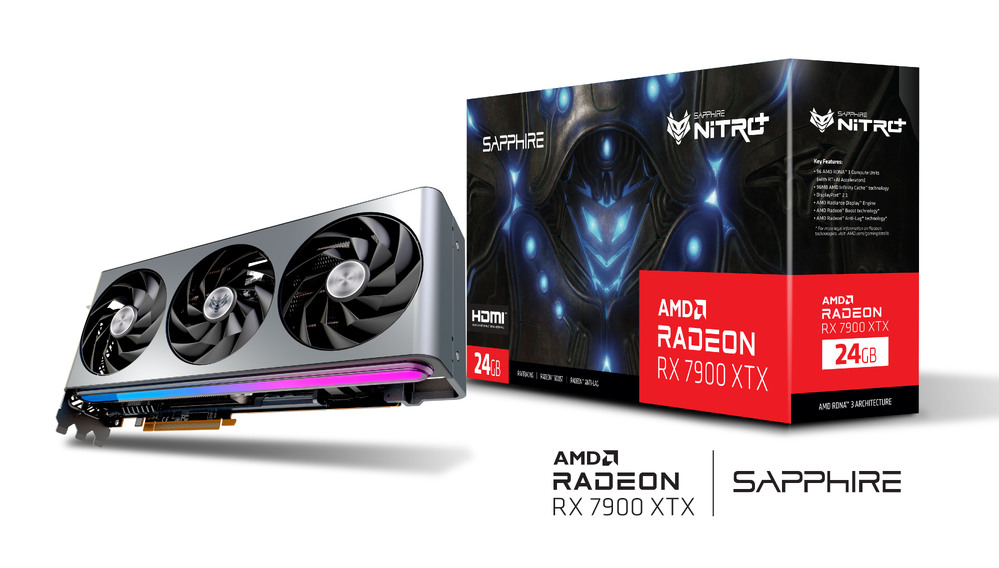

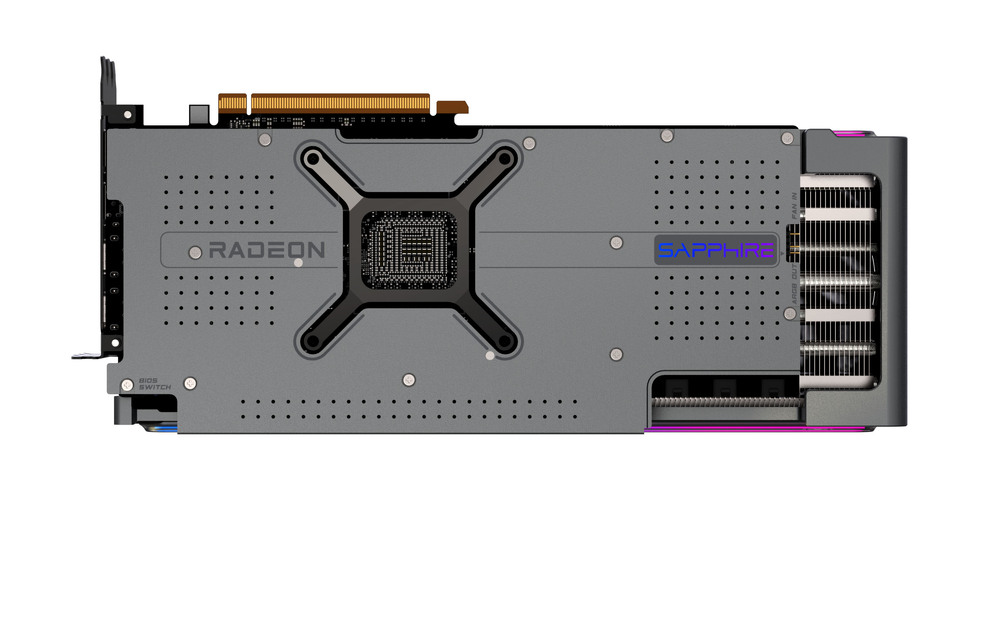

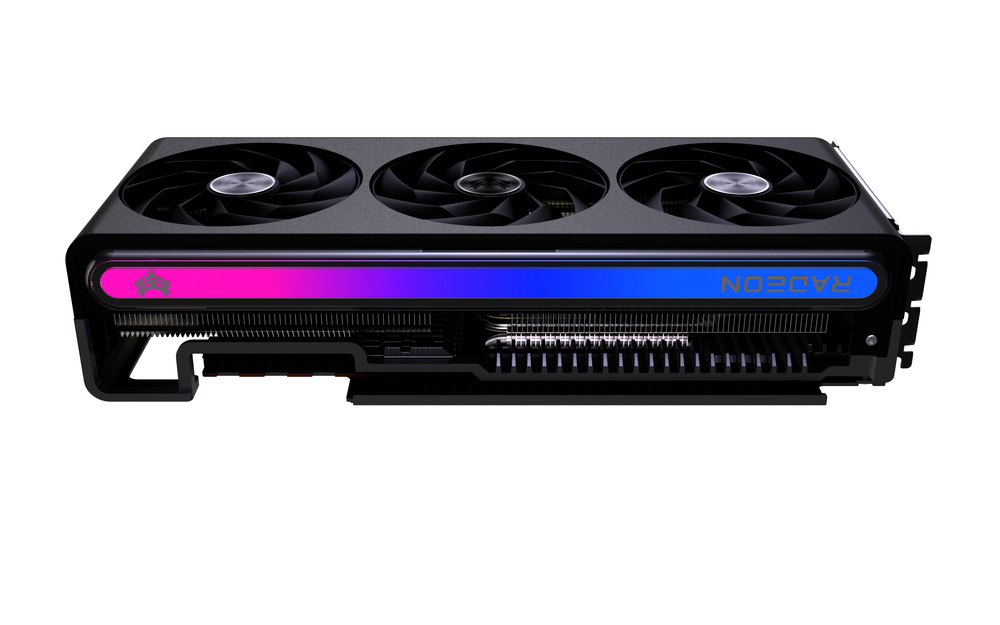

Sapphire NITRO+ Radeon RX 7900 XTX Vapor-X 24GB Graphics Card Overview

36 months

  • GPU: Boost Clock: Up to 2680 MHz
  • GPU: Game Clock: Up to 2510 MHz
  • Memory:   24GB/384 bit DDR6. 20 Gbps Effective
  • Stream Processors: 6144
  • RDNA™ 3 Architecture
  • Ray Accelerator: 96

Specifications


GPU AMD Radeon™ RX 7900 XTX Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock Boost Clock: Up to 2680 MHz
Game Clock: Up to 2510 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 6144
Compute Units 96 CU (with RT+AI Accelerators)
Infinity Cache 96MB
Ray Accelerators 96
Memory Size/Bus 24GB/384 bit GDDR6
Memory Clock 20 Gbps Effective
Displays Maximum 4 Displays
Resolution HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface PCI-Express 4.0 x16
Output 2x HDMI
2x DisplayPort
BIOS Support Dual UEFI
Game Index 4K
Sapphire Features Dual BIOS
TriXX Software Switch
Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
Vapor-X Cooling
High TG Copper PCB
Optimized Composite Heatpipe
Intelligent Fan Controlv Precision Fan Controlv Metal Backplate with ARGB
Dual ARGB Light Bar
Two-Ball Bearing Fans
Angular Velocity Fan Blade
Assistive System Fan Control
Die Casted Aluminum-Magnesium Alloy Frame
Frontplate Heatsink for VRM
Wave Fin Design
V Shape Fin Design for GPU Cooling
TriXX Supported
Fan Check
Fan Quick Connect
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization
Accessories Bundled Graphics Card Supporter
ARGB Extension Cable
AMD Features AMD RDNA™ 3 Gaming Architecture
96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
96MB AMD Infinity Cache™ technology
DisplayPort™ 2.1
AMD Radiance Display™ Engine
AMD Radeon™ Boost technology
AMD Radeon™ Anti-Lag technology
24GB GDDR6 on 384-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ technologies
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies
AMD Software: Adrenalin Edition™ application
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD Freesync™ technology
Cooling 3 Fans
Vapor-X Cooling
Form Factor 3.5 slot, ATX
Dimension: 320(L)X 135.75(W)X 71.6 (H)mm
Power Consumption 420W Total Board Power
OS Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement Minimum 800 Watt Power Supply
3 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
SKU VCS-RX7900XTX-NIT
Brand Sapphire
Unit Of Measure ea
