SAPPHIRE PULSE Radeon RX 7600 XT 16GB Graphics Card

SAPPHIRE PULSE Radeon RX 7600 XT 16GB Graphics Card Overview

36 months

  • GPU: Boost Clock: Up to 2755 MHz
  • GPU: Game Clock: Up to 2355 MHz
  • Memory:   8GB/128 bit DDR6. 18 Gbps Effective
  • Stream Processors: 2048
  • RDNA™ 3 Architecture
  • Ray Accelerator: 32

Specifications


Model Number 11339-04-20G
GPU Sapphire Pulse Radeon™ RX 7600 XT OC Graphics
Stream Processors Up to 2048 unit
Compute Units 32 (RDNA™ 3 architecture)
Ray Accelerators 32
AMD Infinity Cache 32 MB
RT Accelerators 32
AI Accelerators 64
Game Clock 2539 MHz
Boost Clock 2810 MHz
Memory Speed 18 Gbps
Memory Size / Memory Frame Buffer 16 GB (16384 MB) GDDR6
Memory Interface 128 bit
Firmware UEFI BIOS
Form Factor 2.2 slot, ATX
Cooling Axial Fan, Two ball bearing

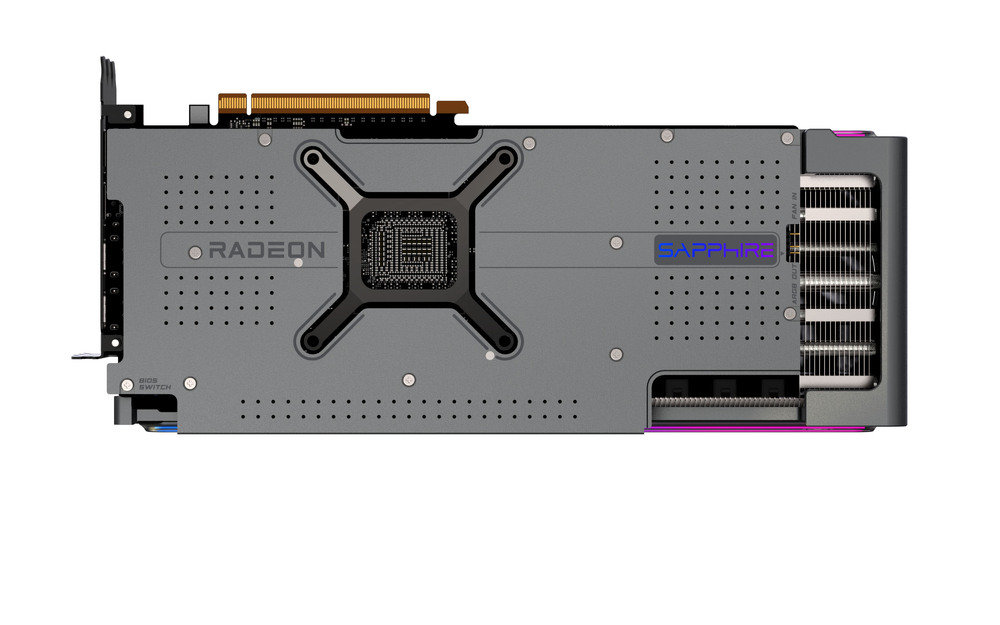

Back Plate Yes
PCI Express Bus Support PCIe4.0 x8
External Power Connector 8pin x 2
TriXX Boost Yes
System Requirements PCI® Express© compatible motherboard with one x 16 PCIe slot.
Minimum 600 W or greater power supply NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements.
Minimum 8 GB of system memory. Recommended 16 GB.
Supported operating systems include Linux®, Windows 10 / 11. 64-bit operating system required.
Board Dimension 250 (L) x 129.25 (W) x 44.56 (H) mm
4 x Maximum Display Monitors support
2 x DP / 2 x HDMI
Maximum Display Resolution HDMI™: 7680 x 4320
DisplayPort2.1: 7680 x 4320
DisplayPort™ 2.1
HDMI™ 4K Support Yes
4K H.264 (Decode, Encode) Yes
H265/HEVC (Decode, Encode) Yes
AV1 (Decode, Encode) Yes
Typical GPU Temperature (Edge) 71℃
Junction GPU Temperature (Hot Spot) 88℃
Target Fan Speed 1700 RPM
Fan Noise (Distance 0.5 m) 32 dBA
TBP (Total Board Power) 192 W
Features AMD FSR 3.0
AMD HYPR-RX
AMD Noise Suppression
AMD Radeon™ FRTC
AMD Smart Technology
SKU VCS-RX7600XT-PUL
Brand Sapphire
Unit Of Measure ea
