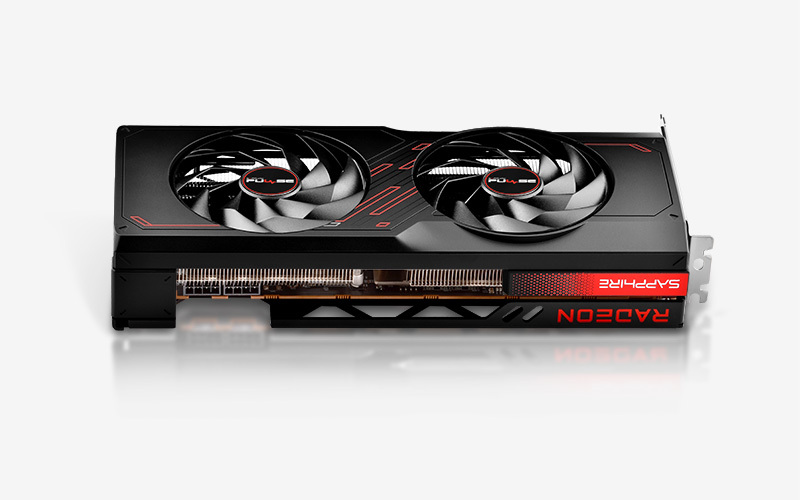

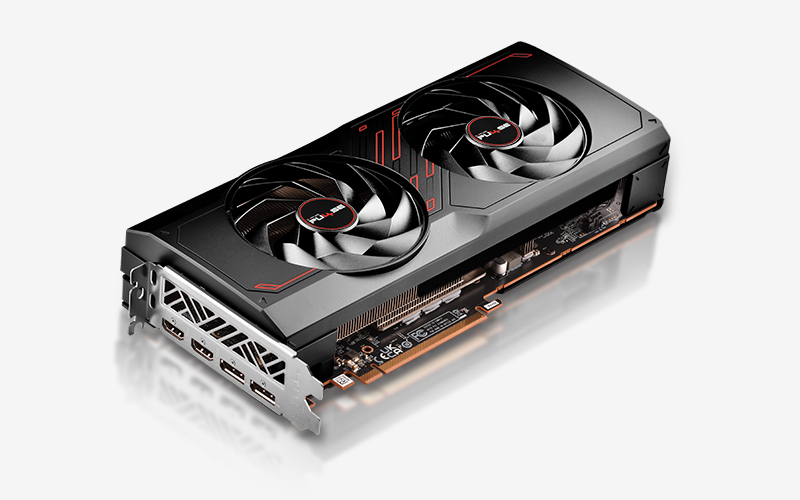

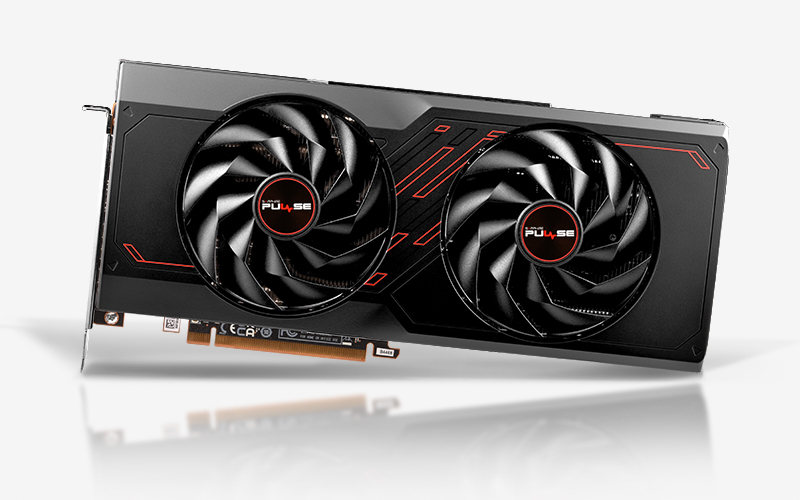

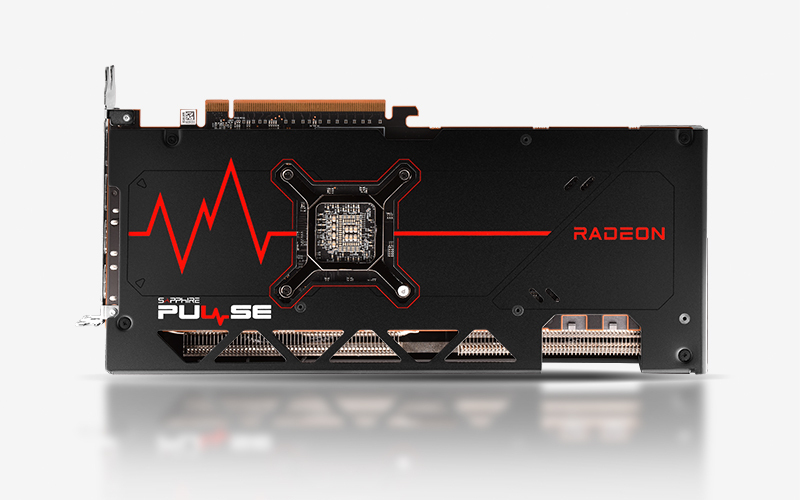

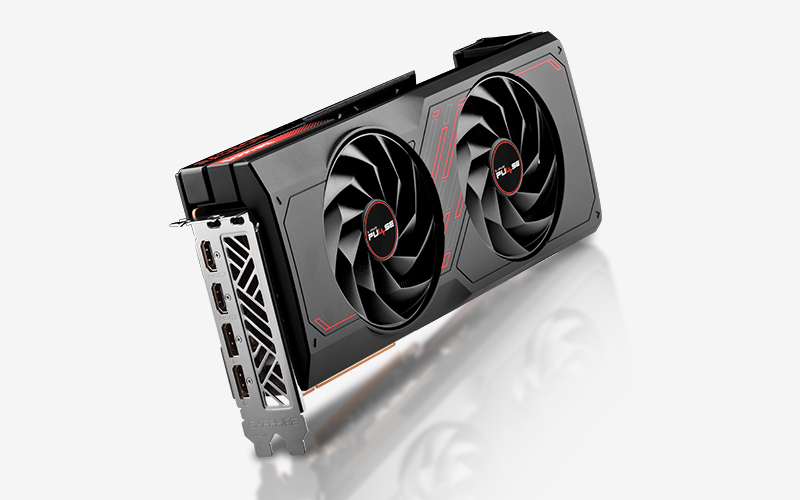

SAPPHIRE PULSE RADEON RX 7700 XT GAMING 12GB GDDR6 Graphics Card

SAPPHIRE PULSE RADEON RX 7700 XT GAMING 12GB GDDR6 Graphics Card

36 months

Specifications

Manufacturer Specifications

GPU

AMD Radeon™ RX 7700 XT Graphics Card

  5nm GPU
  AMD RDNA™ 3 Architecture

Stream Processors

3456

Compute Units

54 CU (with RT+AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

54

Memory Size/Bus

12GB/192 bit GDDR6

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320

  DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

2x HDMI

  2x DisplayPort

BIOS Support

UEFI

Game Index

1440P

Sapphire Features

Digital Power Design

  Ultra High Performance Conductive Polymer Aluminum Capacitors
  Fuse Protection
  High TG Copper PCB
  Optimized Composite Heatpipe
  Dual-X Cooling Technology
  Intelligent Fan Control
  Precision Fan Control
  Metal Backplate
  Angular Velocity Fan Blade
  Dual-Ball Bearing Fans
  TriXX Supported
  TriXX Boost

AMD Features

AMD RDNA™ 3 Architecture

  54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
  48MB AMD Infinity Cache™ Technology
  DisplayPort™ 2.1Support
  AMD Radiance Display™ Engine
  12GB GDDR6 on 192-Bit Memory Bus
  PCI® Express 4.0 ready
  AMD FidelityFX™ Super Resolution technology
  Microsoft® DirectX® 12 Ultimate Support
  Microsoft® DirectStorage Support
  Vulkan® Optimized
  AMD Smart Technologies
  AMD Software: Adrenalin Edition™
  AMD Noise Suppression
  AMD Privacy View
  AMD Radeon™ Super Resolution technology
  AMD Link
  AMD FreeSync™ technology

Cooling

2 Fans

Form Factor

2.5 slot, ATX

  Dimension: 280(L)X 128.75(W)X 52.57 (H)mm

Power Consumption

230W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 700 Watt Power Supply

  2 x 8-pin Power Connector.
  PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  Minimum 8GB of system memory. 16GB recommended.



SKU VCS-RX7700XT-PUL
Brand Sapphire
Unit Of Measure ea
