XH510G2

4.75-liter Space-Saving Volume Build on a Solid Foundation with PCI-Ex16 Slot

Shuttle XPC slim XH510G2 equips with Intel® H510 chipset, which expertly supports Intel® 11th Gen LGA1200 65W Core™ CPU delivers high-performance computing for applications that demand high-speed processing and computer vision. Despite its 4.75-liter compact chassis, XH510G2 provides a PCI-Ex16 slot to install an extra dual slot graphics card, capture card, or more to meet diverse application requirements. The XH510G2 also offers multiple interfaces to connect peripherals, including 4x USB 3.2 Gen1, 4x USB 2.0, an HDMI 2.0, a DisplayPort 1.4, SATA connectors, M.2 slots, and Intel® Gigabit LAN. These scalabilities provide all the fundamentals to boost daily productivity. It is perfect for the video wall, POS server, surveillance, professional creators, and Kiosk applications.

Intel® 11th Generation Core™ processor

Based on the H510 chipset, XH510G2 is engineered to unleash Intel® 10/11th generation Core™ series, Pentium®, and Celeron®. Intel® 11th Rocket Lake platform is integrated with Intel® UHD graphics 750 for 4K UHD resolution content and supports up to 64GB (32GBx2) of superfast DDR4-3200 memory speeds to handle high loads effortlessly. As a result, the performance in IPC is nearly 20% stronger than the previous 10th processors.

Dual-Display Productivity

XH510G2 supports two independent displays via one HDMI 2.0 and one DisplayPort 1.4, providing productivity benefits and dynamic visualization for multitasking applications.

Integrated Dual PCI-E Slots with One PCI-E x 16 and One PCI-E x 1

Despite a small volume, XH510G2 supports dual PCI-E expansion slots, with one PCI-E x 16 and one PCI-E x 1. The built-in PCI-E x 16 slot can be easily set up for any external expansion card to meet diverse applications. In addition, for some applications requiring a higher power supply, the optional expansion accessory PRC01* can bring 270W additional power for high-level graphic card or add-on card.
*Support maximum size: 205mm x 120mm x 45mm
*The PRC01 does not include a power adapter

Strong Expansion Capacity with M.2

With two native M.2 2280 Type M and one M.2 2230 Type E slot, the XH510G2 offers faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules, providing higher transmission bandwidth.
* M.2 key M supports both SATA and PCI-E storage interfaces; however, the one on the bottom side only supports SATA gen 3.0.

Rich Connectivity with High-Speed Gigabit LAN

The XH510G2 provides 4xUSB 3.2 Gen 1, 4xUSB 2.0, and SATA gen 3.0. Additionally, an Intel® Gigabit LAN is included in the model to provide high-speed data transfer capability and thus a better business networking integration. Besides, an optional COM port RS232 helps connect to peripherals such as a thermal printer, automation, or barcode scanner.

Exclusive Cooling Technology

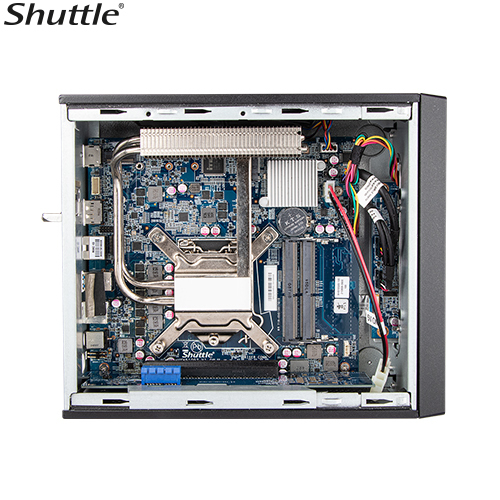

The XH510G2 features Shuttle’s exclusive heat-pipe cooling system with a smart fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation. The XH510G2 adopts industrial capacitors to meet the 0 - 50 ⁰C environmental operation demands of commercial applications.
* With use of Wide Range Temp. SO-DIMM and SSD.

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux

36 months

FORM FACTOR Shuttle 5L Form factor
PROCESSOR Support Intel 10th/11th LGA1200 , Core i3/i5/i7/i9, Pentium, Celeron ,65W processor
CHIPSET Intel H510 Express chipset
MEMORY 2 x DDR4 SO-DIMM slots,32GB per DIMM (Max 64GB)
DDR4 2666/2933/3200 MHz
VIDEO OUTPUT (1)HDMI + (1)DP , support dual display
AUDIO Realtek ALC662 High Definition Audio
ETHERNET Intel i219
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) Raiser card slot
(1) 4 Pin Fan connector
(1) SATA connector

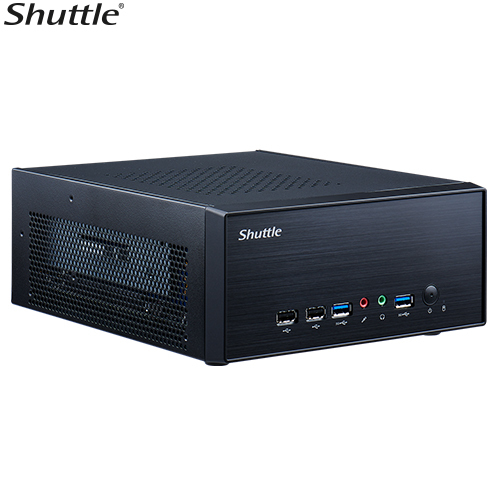

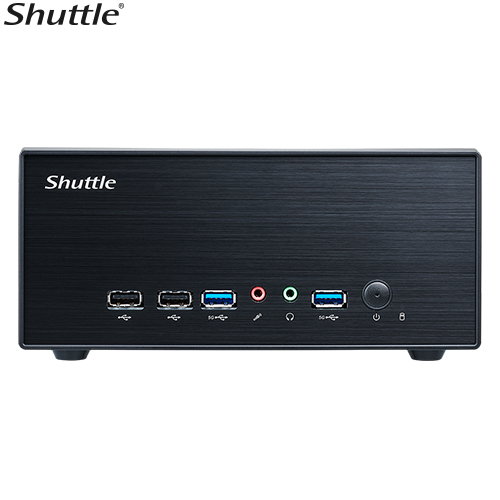

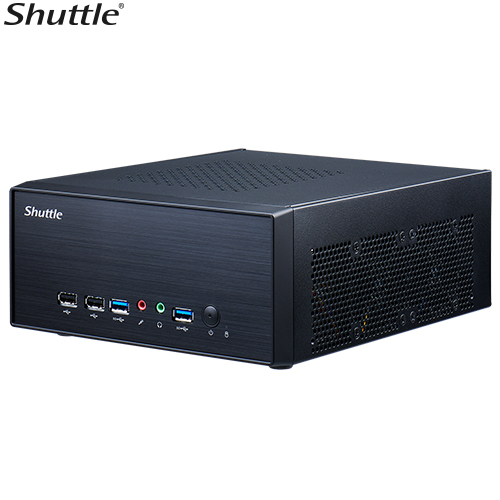

FRONT PANEL (2) USB 2.0 ports
(2) USB 3.2 Gen 1 ports
(1) Microphone-In
(1) Line-Out
(1) Power button
(1) Power LED
(1) HDD LED

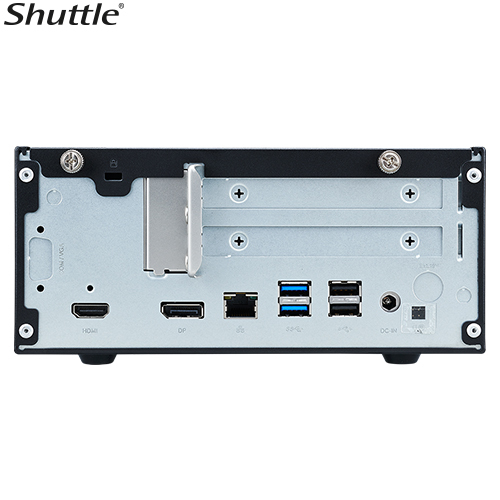

BACK PANEL (1) RJ45 Gigabit LAN port
(1) HDMI
(2) USB 2.0 ports
(2) USB 3.2 Gen 1 ports
(1) Displayport
(2) Antenna Hole
(1) DC in
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 250*200*95mm
POWER Input:100- 240V AC
Output: 19.5V/9.23A
180W Adapter
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
1* Power cord
1*180W adapter
1*Screw pack
1*VESA bracket
1*VESA screw pack
" Optional " WLN-M ,WWN03
EXPANSION SLOT (1) M.2 2280 Type M key socket
*Top side ,NVME ,SATA support
(1) M.2 2280 Type M key socket
*Bottom side ,SATA support
(1) M.2 2230 Type A,E Key socket
(1) PCI-E X16
(1) PCI-E X1
OS SUPPORT Windows 10/11 64 bit O.S
Linux
NET WEIGHT 2.98 Kg
CERTIFICATION Safety certification : CB , BSMI , cTUVus
EMI certification : FCC , CE , BSMI , RCM , VCCI
OPERATING TEMPERATURE 0℃~50℃



SKU SYS-XH510G2
