Shuttle XH610 XPC Slim 3-Liter, Intel H610 Chipset Supports Intel 12th/13th/14th Gen LGA1700

Intel 14th Gen CPU for Maximized Connectivity and AI Computing Performance

Equipped with the Intel® H610 chipset and LGA1700 socket, the 3-liter Shuttle XH610/XH610V supports the latest 14th Gen Intel® Core™ Desktop processors, adopting Intel® Xe graphics architecture and dual-channel DDR4-3200 memory (Max. 64GB) to ensure optimal operational performance. This model facilitates three independent displays and offers expandable storage options, making it easily applicable to diverse commercial settings such as interactive information kiosks, vending machines, digital signage, and surveillance applications.

Intel® 14th Gen Processor Compatibility

The XH610 series features the Intel® H610 chipset and is compatible with the latest Raptor Lake Refresh (14th Gen) processors, providing further computational efficiency and multi-threading capabilities. Leveraging the integrated Intel® UHD Graphics, the XH610 series excels in versatile areas such as 4K display, video editing, and AI applications.

Upgrade to 14th Gen Intel CPU Now!
● Up to 24 cores: 8 Performance-cores and 16 Efficient-cores
● Supports Intel® Thread Director for optimal multitasking
● Maximized 32 threads and peak clock speed up to 5.8GHzGHz via 120W power
● Advanced connectivity options like Wi-Fi 7

Triple-Display Productivity

With one HDMI 2.0b, one DisplayPort, and one VGA output built-in, the XH610 series supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

Strong Expansion Capacity with M.2

With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, the XH610 series offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA and PCIe 3.0 x4 storage interfaces.

Flexible Storage Expansion

The XH610 series supports installing two 2.5” HDD/ SSD and a slim ODD or three 2.5” HDD/SSD storage drives. Meanwhile, the models also support a 3.5” HDD for increased storage with an optional accessory PHD4.
*Installation of ODD is not compatible with three SSD/HDD or 3.5” HDD

Up to 5 Additional COM Ports Install Available

XH610 series provides one RS232 and one RS232/422/485 that support 0V/5V/12V. If equipped with the optional accessory PCM31, three additional RS232 can be added to house various peripherals such as thermal printers, label printers, and barcode scanners.

Rich Connectivity and High-speed Intel® 2.5GbE LAN

XH610 series provides four USB 3.2 Gen1 (Include one Type-C) and four USB 2.0 for flexible connectivity options. Intel® 1GbE and Intel® 2.5GbE LAN are equipped to support Wake on LAN functions to provide high-speed data transfer capability.

Exclusive Cooling Technology

XH610 series features Shuttle’s exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux

36 months

Specifications

FORM FACTOR	Mini-ITX MB 3.5 L chassis
PROCESSOR	Support Intel® 12/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W * BIOS v2.03 and updated version support Raptor Lake (13th) CPU
CHIPSET	Intel H610 Express chipset
MEMORY	2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 3200 MHz
VIDEO OUTPUT	HDMI + Display + D-Sub (VGA) port triple display
AUDIO	Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio
ETHERNET	(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function
STORAGE INTERFACE	SATA 6.0Gb/s interface

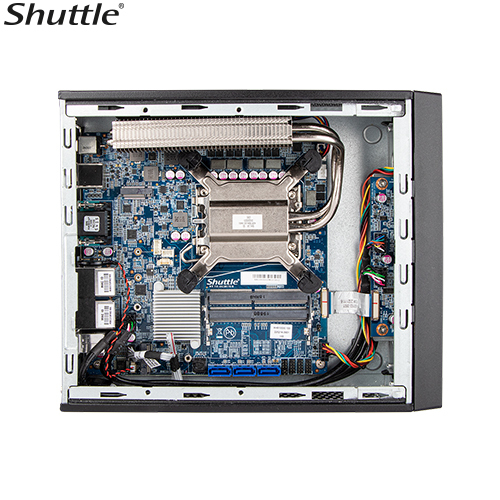

ONBOARD CONNECTORS	(3) SATA connectors (1) 1x4 pin USB 2.0 header (2) 4pin fan connectors (1) SATA power connector(5V) (1) SATA power connector(12V) (1) Auto power on header (1) RS232 voltage switch (4) RS232 connectors (1) Battery connector

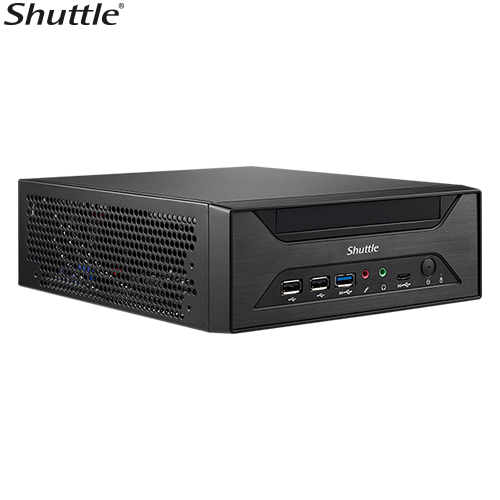

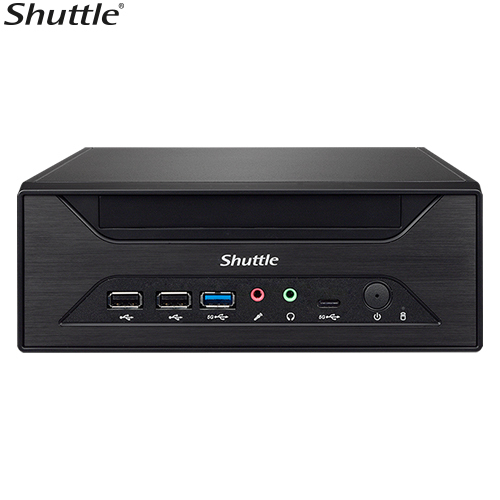

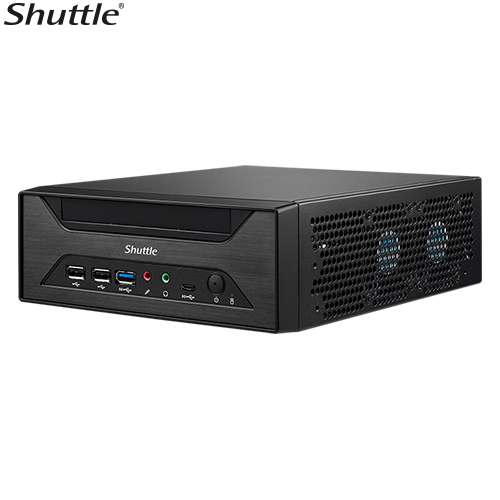

FRONT PANEL	(2) USB 2.0 ports (2) USB 3.2 Gen1 ports (Include Type C x 1) (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED

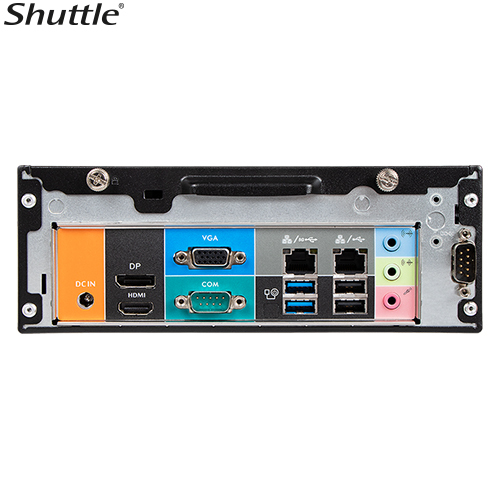

BACK PANEL	(2) RJ45 Gigabit LAN port w/LED (1) Display port (1) HDMI (1) D-Sub (VGA) port (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (1) RS232 (1) RS232/RS422/RS485 (1) Line in port (1) Line out port (1) MIC in port (1) Clear CMOS button (1) DC in (1) Kensington lock (2) Wireless Antenna fixture
DRIVE BAYS	(1) 2.5" HDD / SSD bay (1) Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD
DIMENSIONS	XH610V: 240(L) x 200(W) x 72(H) mm XH610 : 238(L) x 200(W) x 72(H) mm Dimension drawing
POWER	120W Power Adapter Input:100- 240V AC 19V 6.32A
ACCESSORIES	XPC Multilanguage Quick User Guide XPC DVD Driver 1* Power cord 1* SATA cable (pre-install for HDD) 1* SATA cable (pre-install for ODD) 1* 4 pin to SATA power cable Screws
EXPANSION SLOT	(1) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket
OS SUPPORT	Windows 10/11 64 bit O.S Linux
REMARK	1. PHD4 3.5" HDD rack accessory can support XH310/XH310V/XH310R/XH310RV/XH610/XH610V
OPERATING TEMPERATURE	0℃~50℃
