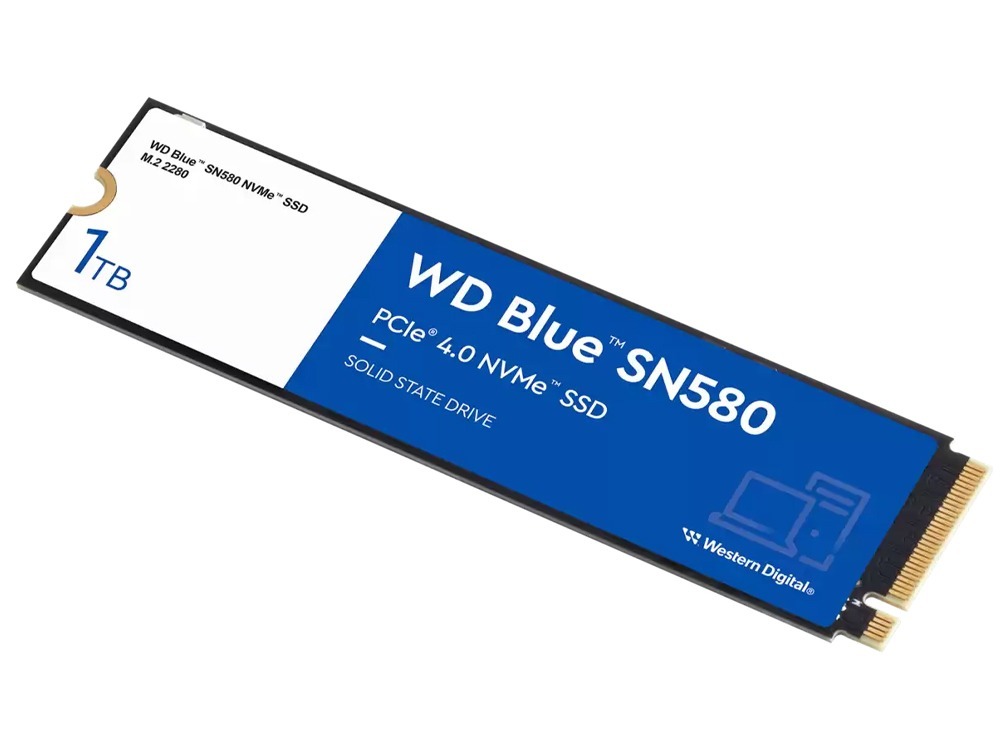

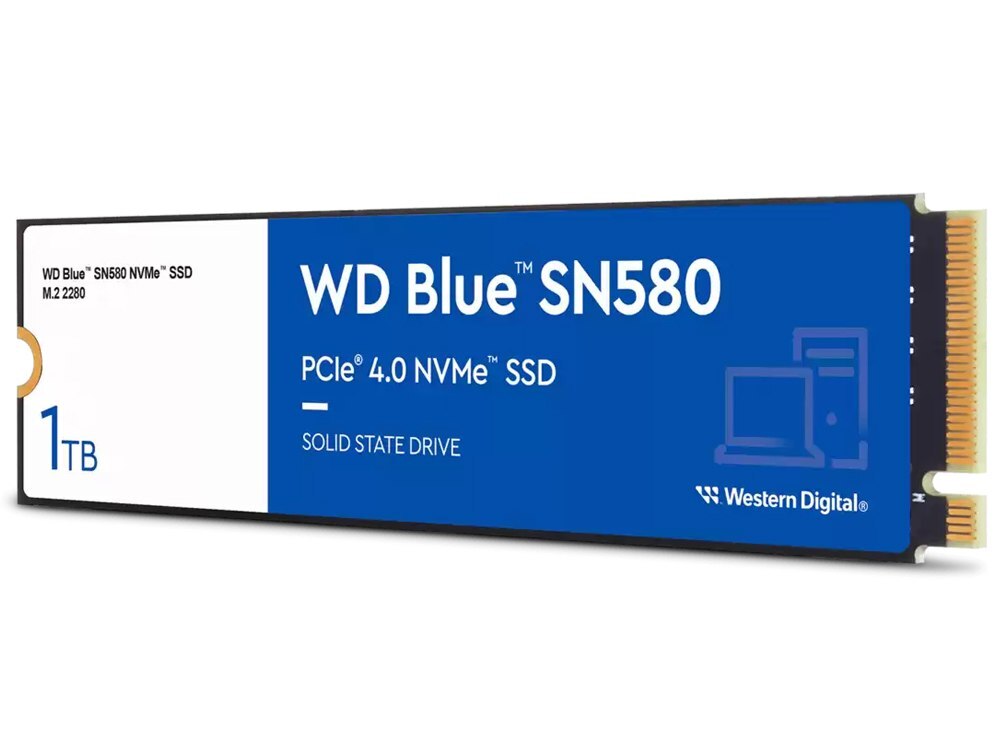

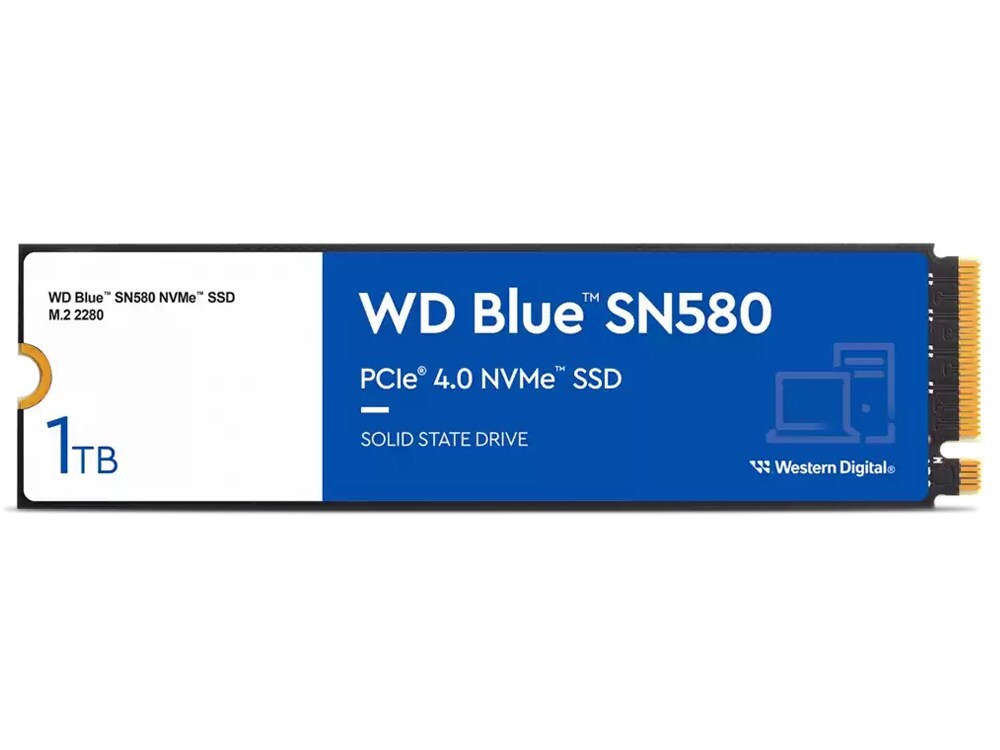

Western Digital WDS100T3B0E WD Blue SN580 NVMe SSD 1TB Overview

60 months

Specifications

Capacity 1TB
Interface PCIe Gen4 NVMe 1.4b
NAND Type WDC TLC
Sequential Read (MB/s) up to (Queues = 32, Threads = 1) 4150
Sequential Write (MB/s) up to (Queues = 32, Threads = 1) 4150
Random Read 4KB IOPS up to (Queues=32, Threads=16) 600K
Random Write 4KB IOPS up to (Queues=32, Threads=16) 750K
Endurance (TBW) 600
Average Active Power 65mW
Sleep (PS5) 3.3mW
MTTF (hours) 1.5M
Security TCG Pyrite 2.01; ATA Security Passthrough over NVMe
Operating Temperatures 32°F to 185°F (0°C to 85°C)
Non-operating Temperatures -40°F to 185°F (-40°C to 85°C)
Operating Vibration 5.0 gRMS, 10–2000 Hz, 3 axes
Non-Operating Vibration 4.9 gRMS, 7–800 Hz, 3 axes
Shock 1,500G @ 0.5 ms half sine
Form Factor M.2 2280-S3-M (M key, Single Side Assembly)
Length 80 ± 0.15mm
Width 22 ± 0.15mm
Height 2.38mm
Weight 5.5g ±.5g
SKU HBWD-WDS100T3B0E
Brand Western Digital
Unit Of Measure ea
